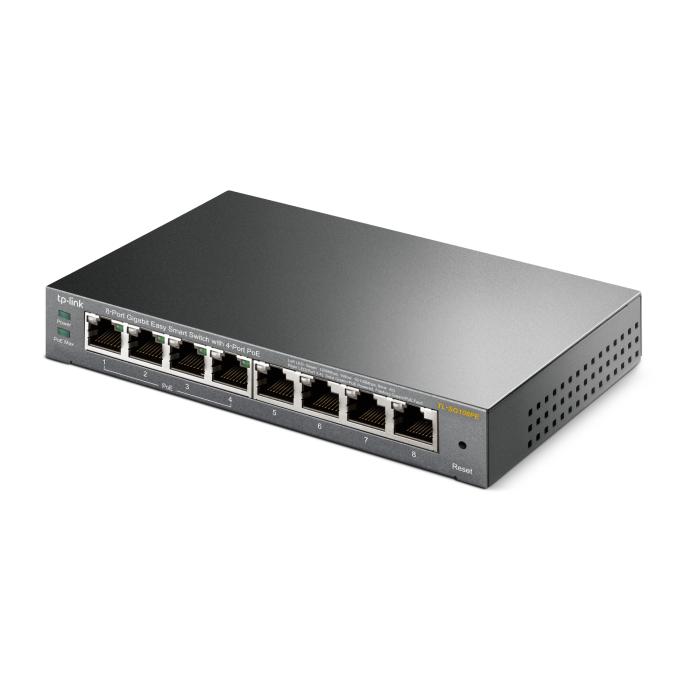

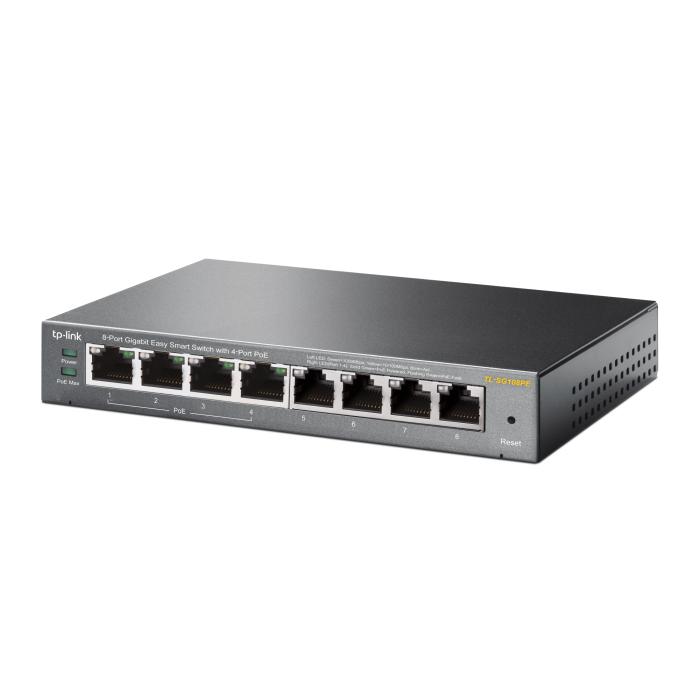

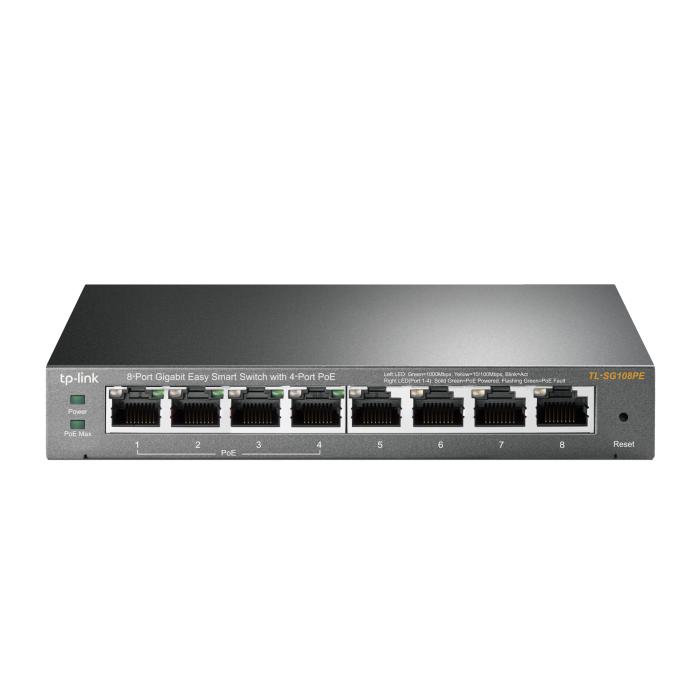

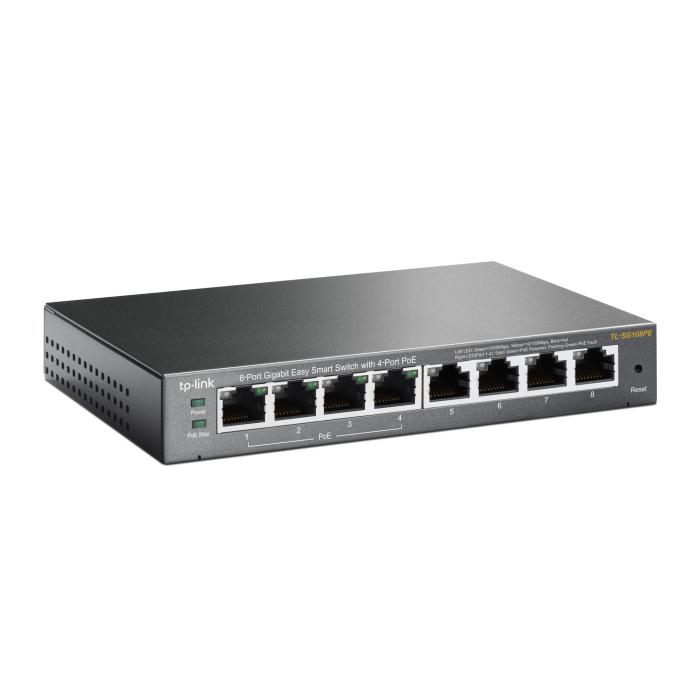

Name: TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE
Brand: TP-LINK
Price: 50.47 USD
Availability: InStock

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

$50.47

$50.47 without VAT

Amount

Brand: TP-LINK

SKU: 77125 PRC: 127920 EAN: 6935364094751 PN: TL-SG108PE

Description

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support: No
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 4000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 15000
Packet buffer memory: 1.5 MB

Security

IGMP snooping: Yes
Loop protection: Yes

Design

Product colour: Black
LED indicators: Activity, Link, PoE, Power, Speed, Status

Power

Power source: DC
Power supply included: Yes
Input current: 1.25 A
Input voltage: 48 V
Power consumption (max): 65.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 64 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 256.19 BTU/h

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 25 mm

Packaging content

Cables included: AC
User guide: Yes

Packaging data

Package type: Box
Package width: 131 mm
Package depth: 196 mm
Package height: 121 mm
Package weight: 890 g

Certificates

Certification: FCC, CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
