Name: TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Brand: TP-LINK
Price: 43 EUR
Availability: InStock

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

43.00 €

35.54 € without VAT

Amount

Brand: TP-LINK

SKU: 117697 PRC: 550665 EAN: 8885020620931 PN: ES205GP

Description

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Cloud-managed: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support: No
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber

Transmission distance (max): 0.25 km

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.4 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 15
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
IGMP snooping: Yes
Loop protection: Yes

Design

Product colour: Black
Reset button: Yes
LED indicators: Yes

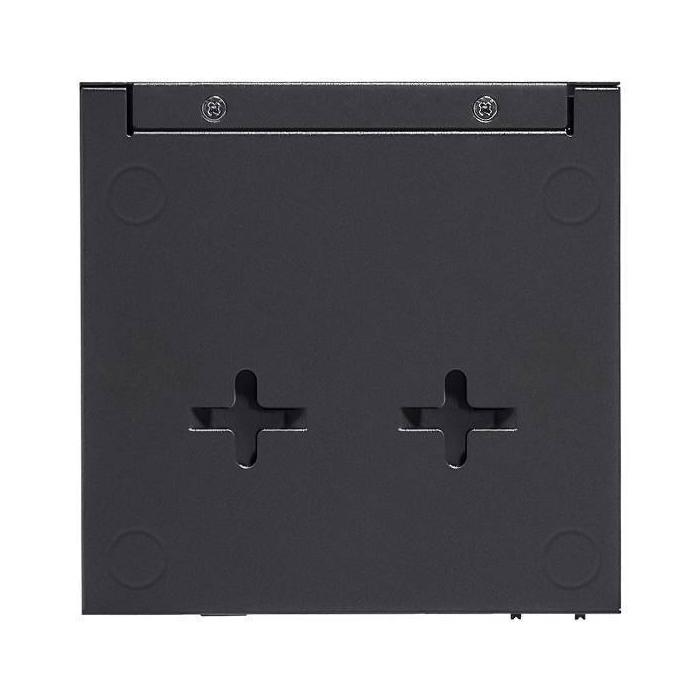

Wall mountable: Yes

Performance

Fanless: Yes

Power

Power source: AC/DC
Power supply included: Yes
DC input voltage: 53.5 V

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 100 mm
Depth: 98 mm
Height: 25 mm

Packaging content

User guide: Yes

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
