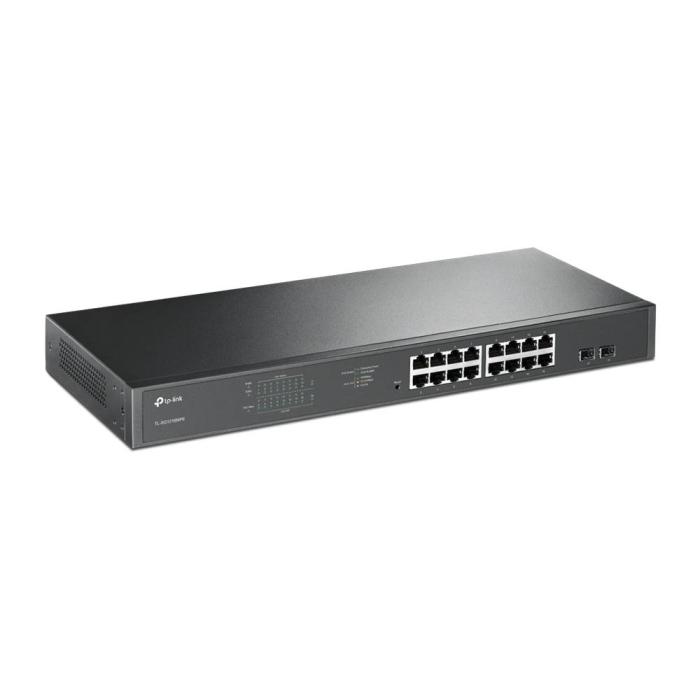

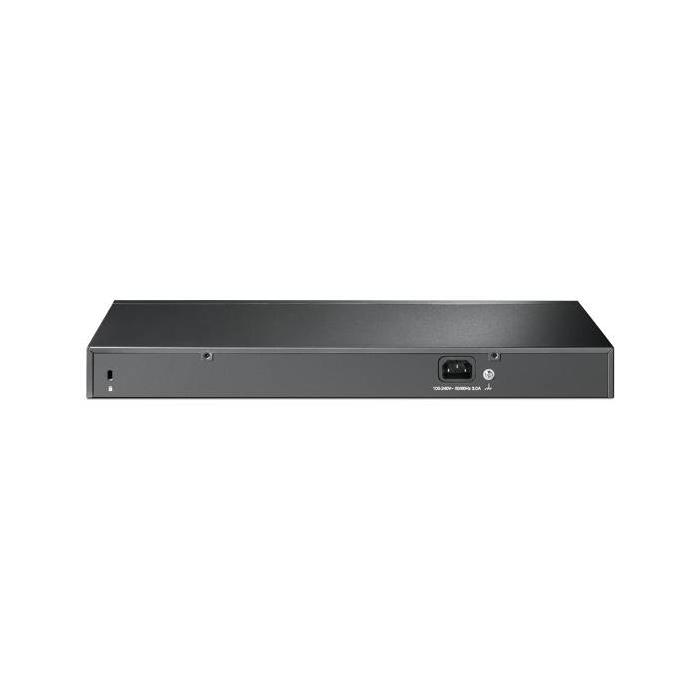

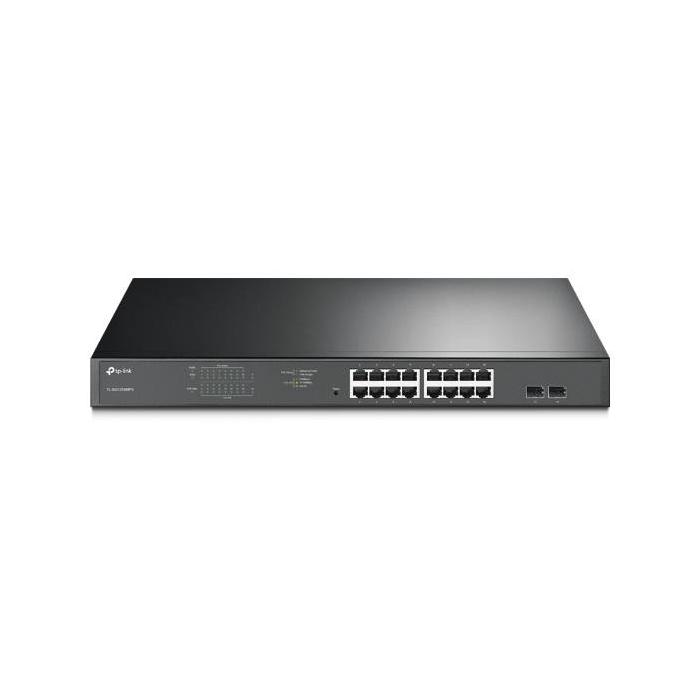

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

$186.63
$186.63 without VAT

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch.   More info

Brand: TP-LINK
SKU: 83322 PRC: 268551 EAN: 6935364086923 PN: tl-sg1218mpe

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 16
  • SFP module slots quantity: 2

Network

  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN
  • Number of VLANs: 32

Optical fiber

  • Fiber ethernet cabling technology: 1000BASE-X

Data transmission

  • Switching capacity: 36 Gbit/s
  • Forwarding rate: 23.8 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 4.1 MB

Security

  • IGMP snooping: Yes
  • Security algorithms: SNMP, SNMPv2, SNMPv3
  • Loop protection: Yes

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Number of fans: 2 fan(s)

Power

  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 217.22 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Total Power over Ethernet (PoE) budget: 192 W

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 741.15 BTU/h

Weight & dimensions

  • Width: 440 mm
  • Depth: 180 mm
  • Height: 44 mm

Packaging content

  • Cables included: AC
  • User guide: Yes
  • Rack mount kit: Yes

Packaging data

  • Package width: 250 mm
  • Package depth: 528 mm
  • Package height: 80 mm
  • Package weight: 2.91 kg

Certificates

  • Certification: CE, FCC, RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
