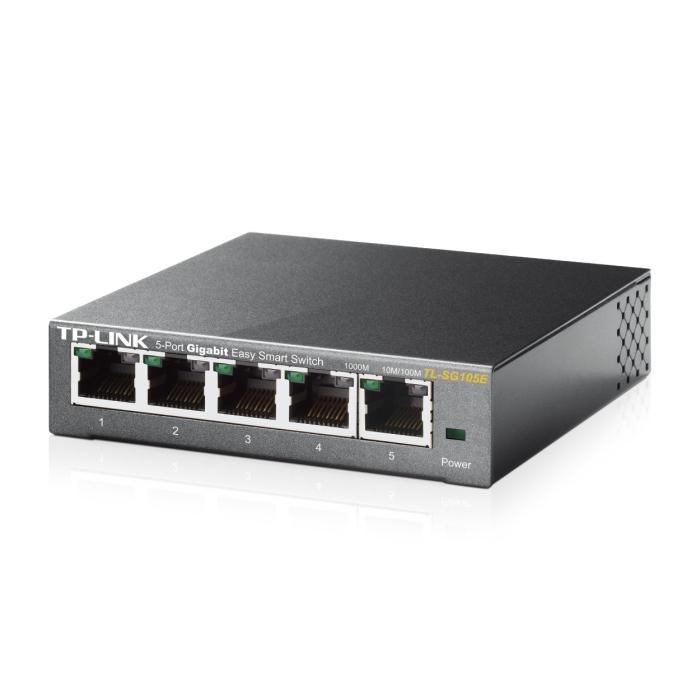

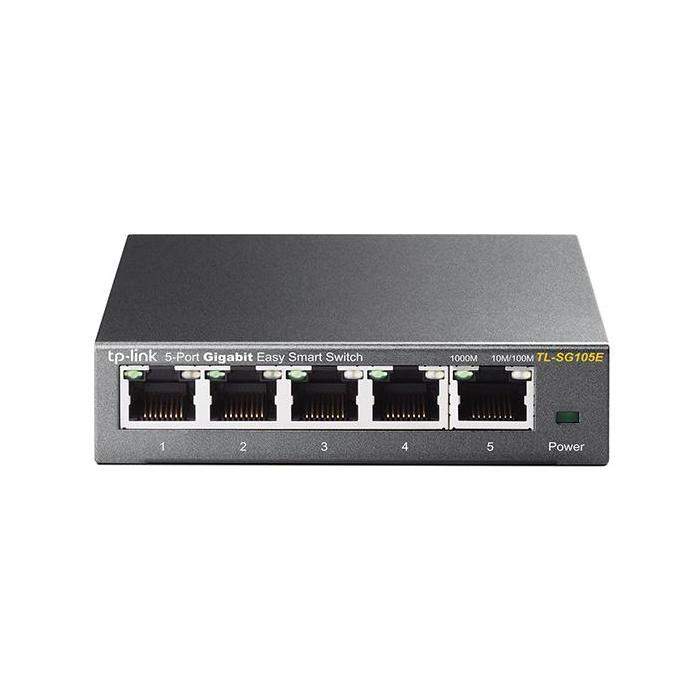

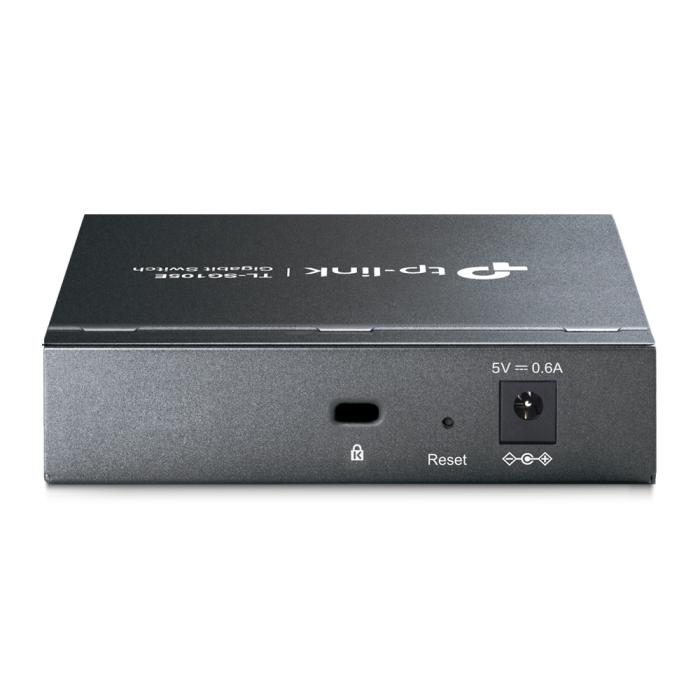

TP-Link 5-Port Gigabit Easy Smart Switch

Not avaliable

TP-Link 5-Port Gigabit Easy Smart Switch.   More info

Brand: TP-LINK
SKU: 71995 PRC: 33165 EAN: 845973022037 PN: TL-SG105E

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 5
  • Basic switching RJ-45 Ethernet ports quantity: 5

Network

  • Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 16000
  • Packet buffer memory: 1 MB

Security

  • IGMP snooping: Yes

Design

  • Product colour: Black
  • LED indicators: Yes

Performance

  • Compatible operating systems: Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux

Power

  • Power source: DC
  • Power supply included: Yes
  • Input current: 0.6 A
  • Input voltage: 5 V
  • Power consumption (max): 2.82 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 9.07 BTU/h

Weight & dimensions

  • Width: 100 mm
  • Depth: 98 mm
  • Height: 25 mm

Packaging content

  • Cables included: AC
  • Quick start guide: Yes
  • User guide: Yes
  • Rack mount kit: Yes

Packaging data

  • Package type: Box
  • Package width: 125 mm
  • Package depth: 128 mm
  • Package height: 92 mm
  • Package weight: 450 g

Certificates

  • Certification: FCC, CE, RoHS
