Description

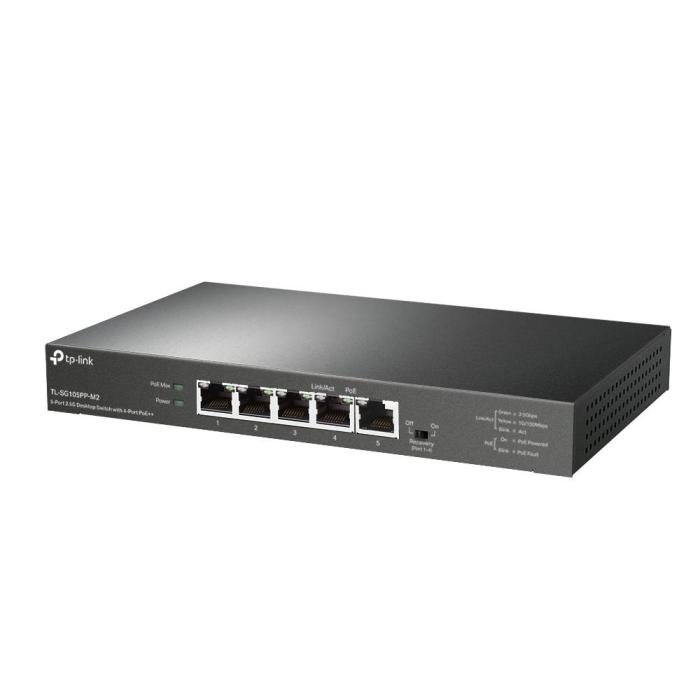

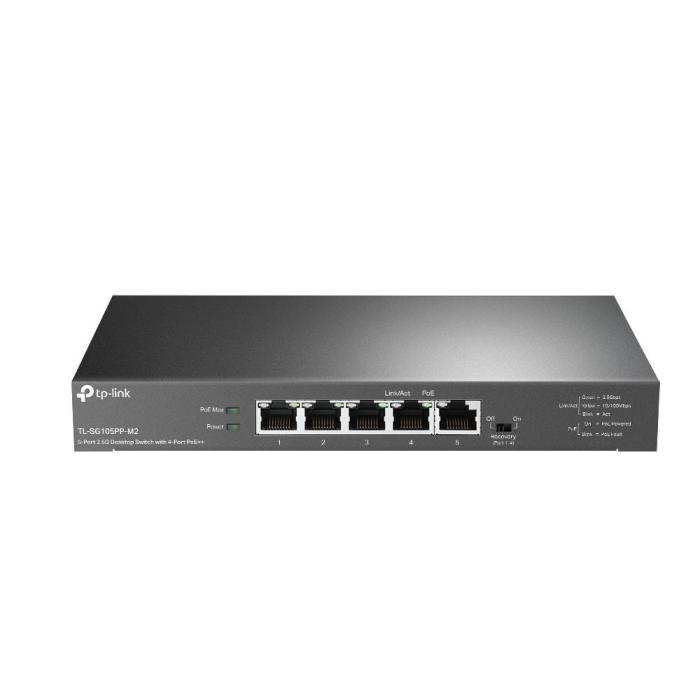

TP-Link TL-SG105PP-M2 unmanaged switch in black, with five 2.5G Ethernet ports supporting Gigabit Ethernet (10/100/1000) and integrated PoE power. This model offers 25 Gbit/s switching and a forwarding rate of 18.6 Mpps, with a MAC address table of 4000 entries and store-and-forward mode. It includes Quality of Service (QoS) and features such as auto-negotiation, auto MDI/MDI-X and flow control, as well as being compatible with Cat3, Cat4, Cat5 and Cat5e cables. It supports IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x network standards, along with support for MAC address auto-learning and auto-ageing.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 2.5G Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 25 Gbit/s
- Forwarding rate: 18.6 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
Security
- IGMP snooping: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Steel
- LED indicators: Yes
Performance
- Fanless: Yes
Power
- Power source: DC/PoE
- Power supply included: Yes
- Number of power supply units: 1
- AC input voltage: 220 V
- AC input frequency: 50 Hz
- Input current: 2.43 A
- Input voltage: 53.5 V
- Power consumption (max): 143.37 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet 4PPoE (PoE++) ports quantity: 4
- Power over Ethernet (PoE) power per port: 60 W
- Total Power over Ethernet (PoE) budget: 123 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 488.89 BTU/h
Weight & dimensions
- Width: 209 mm
- Depth: 126 mm
- Height: 26 mm
Packaging content
- Cables included: AC
- User guide: Yes
Packaging data
- Package type: Box
Certificates
- Certification: CE, FCC, RoHS
