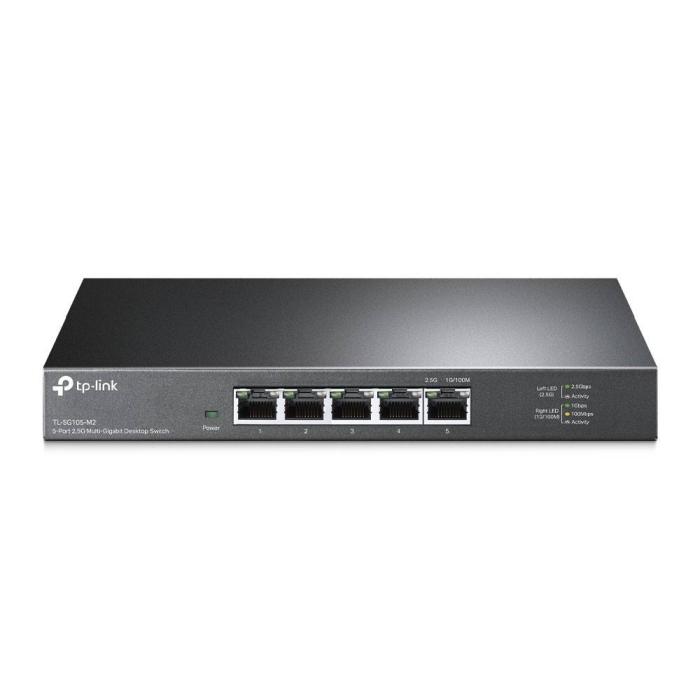

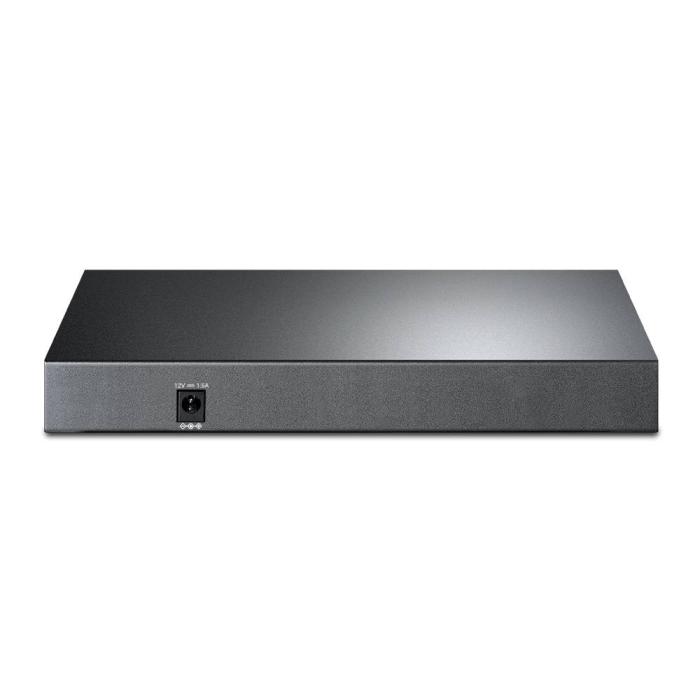

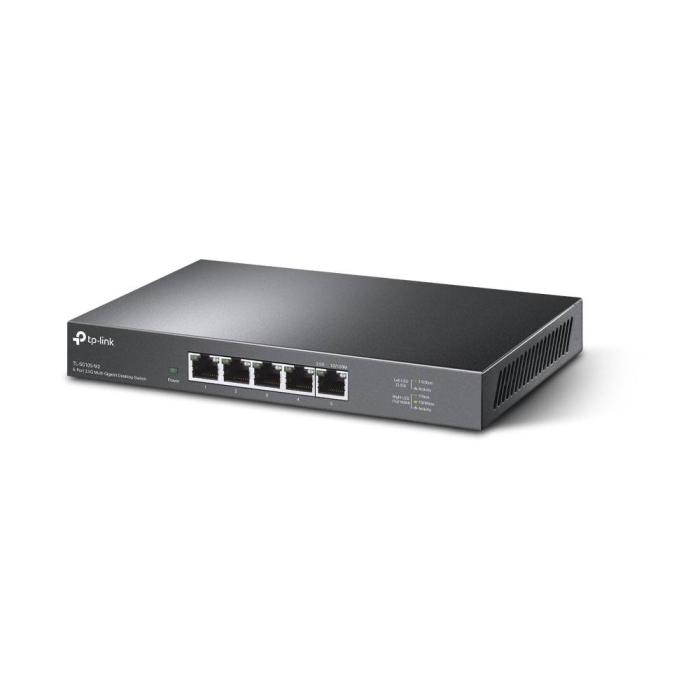

TP-Link 5-Port 2.5G Desktop Switch

$50.47
$50.47 without VAT

TP-Link 5-Port 2.5G Desktop Switch.   More info

Brand: TP-LINK
SKU: 89956 PRC: 342016 EAN: 6935364052881 PN: TL-SG105-M2

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 5

Network

  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 25 Gbit/s
  • Forwarding rate: 18.6 Mpps
  • MAC address table: 16000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 1.5 MB

Design

  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Yes

Power

  • Power source: DC
  • Power supply included: Yes
  • Input current: 1 A
  • Input voltage: 12 V
  • Power consumption (max): 12.11 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 41.32 BTU/h

Weight & dimensions

  • Width: 209 mm
  • Depth: 126 mm
  • Height: 26 mm

Packaging content

  • Cables included: LAN (RJ-45)
  • Quick start guide: Yes

Packaging data

  • Package width: 240 mm
  • Package depth: 315 mm
  • Package height: 70 mm
  • Package weight: 870 g

Certificates

  • Certification: CE, FCC ,RoHS

Logistics data

  • Harmonized System (HS) code: 85176990
