Description

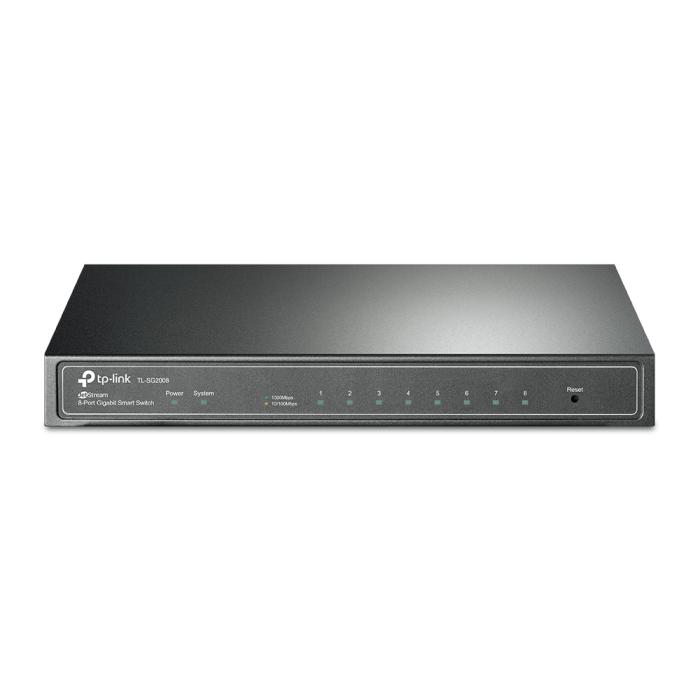

The TP-Link TL-SG2008 managed switch is a black L2 device with 8 Gigabit Ethernet (10/100/1000) RJ-45 ports and a switching capacity of 16 Gbit/s. It achieves a forwarding rate of 11.9 Mpps and supports 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling technologies, as well as Cat3, Cat4, Cat5 and Cat5e cables. It incorporates virtual LAN functions such as Multicast VLAN, Tagged VLAN and Voice VLAN, with support for up to 512 VLANs, and offers quality of service (QoS) and DHCP client features. In terms of security it supports SSH, SSH-2 and SSL/TLS algorithms, and includes web-based management and system event logging. It is powered by alternating current with an input voltage of 100 to 240 V and its fanless design does away with moving parts. Its dimensions are 209 x 26 x 126 mm (width x height x depth).
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Basic switching RJ-45 Ethernet ports quantity: 8
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Multicast VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 512
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SSH, SSH-2, SSL/TLS
- SSH/SSL support: Yes
Multicast features
- Multicast support: Yes
Design
- Product colour: Black
- LED indicators: Yes
Performance
- Fanless: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 6.42 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 209 mm
- Depth: 126 mm
- Height: 26 mm
Packaging content
- Cables included: AC
- User guide: Yes
Packaging data
- Package width: 223 mm
- Package depth: 280 mm
- Package height: 68 mm
- Package weight: 930 g
Certificates
- Certification: CE, FCC, RoHS
