Thermaltake PS-SPD-0750MNFABE-3 power supply unit 750 W 24-pin ATX ATX Black
More info
Brand: THERMALTAKE
107.00 €Stock available: 0 units.
Unavailable
SKU:
103604
PRC:
474452
EAN:
4713227539746
PN:
ps-spd-0750mnfabe-3
Description
The Thermaltake power supply unit, reference PS-SPD-0750MNFABE-3, in black and with ATX form factor, offers a total power output of 750 W with a 24-pin main connector for the motherboard. Its power factor correction is active, and it works with an input voltage of 100-240 V and a frequency of 50/60 Hz, with an input current of 15 A. On the +12 V rail, it provides a maximum output current of 62.5 A and a combined power of 750 W, while the +3.3 V and +5 V rails reach 18 A each with 110 W combined. It includes protections against overcurrent, overvoltage, overtemperature, short circuit, and undervoltage, and its power cable for the motherboard measures 60 cm.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 110 W
- Combined power (+12V): 750 W
- Combined power (+5V): 110 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 17 ms
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm

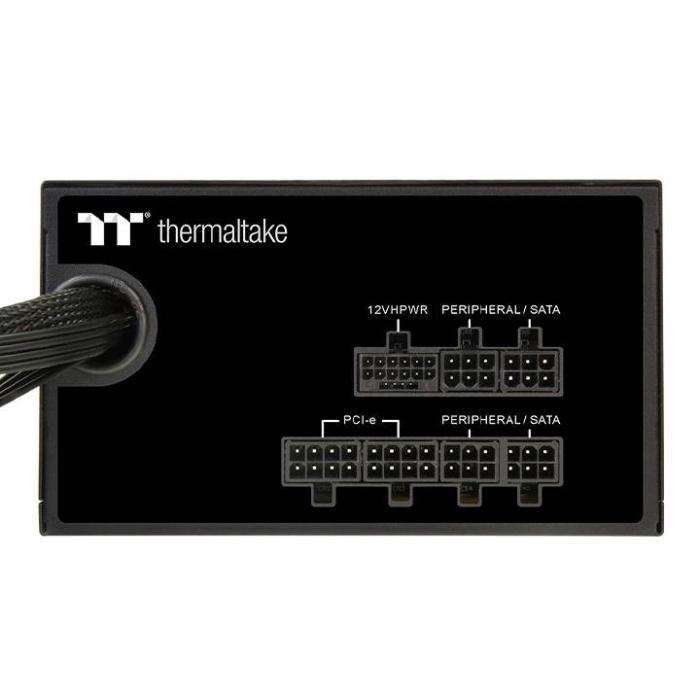

- Number of SATA power connectors: 6
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 7
- Peripheral (Molex) power cable length: 150, 500 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- CPU power connector (4+4 pin): Yes
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -40 - 55 °C
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 95%
Certificates
- Certification: CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
