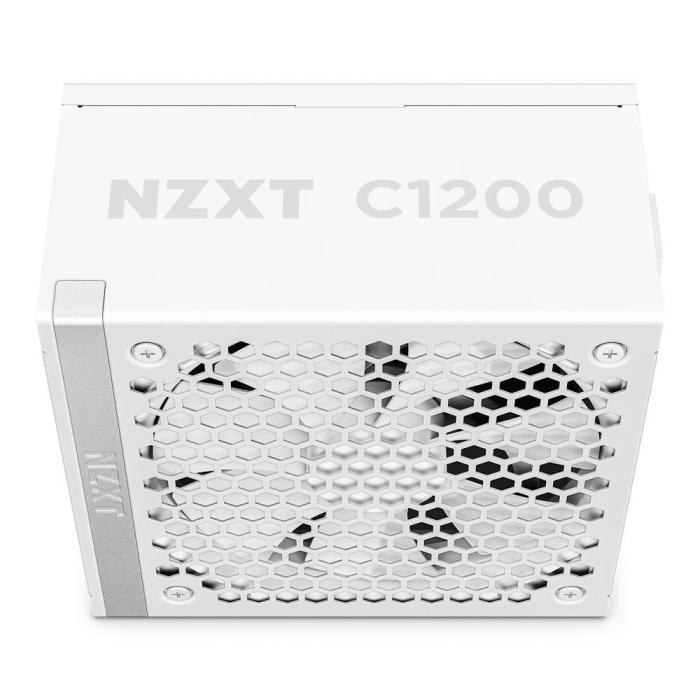

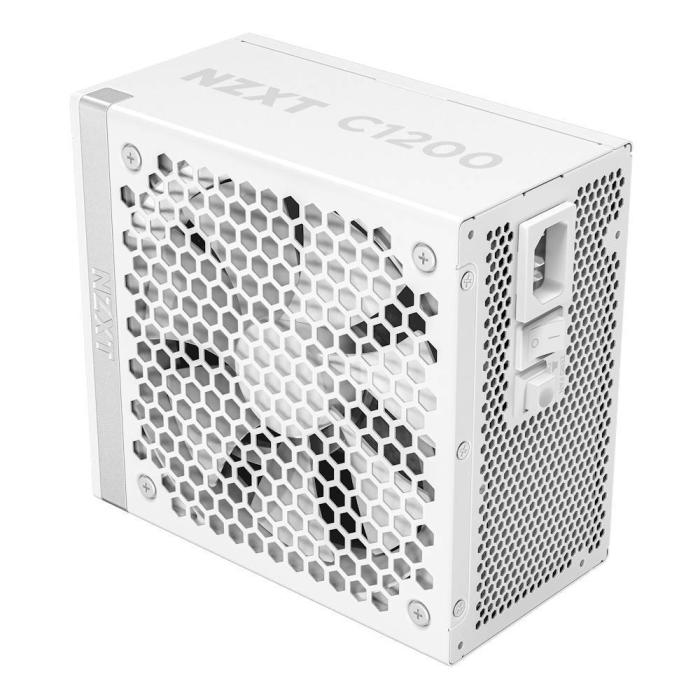

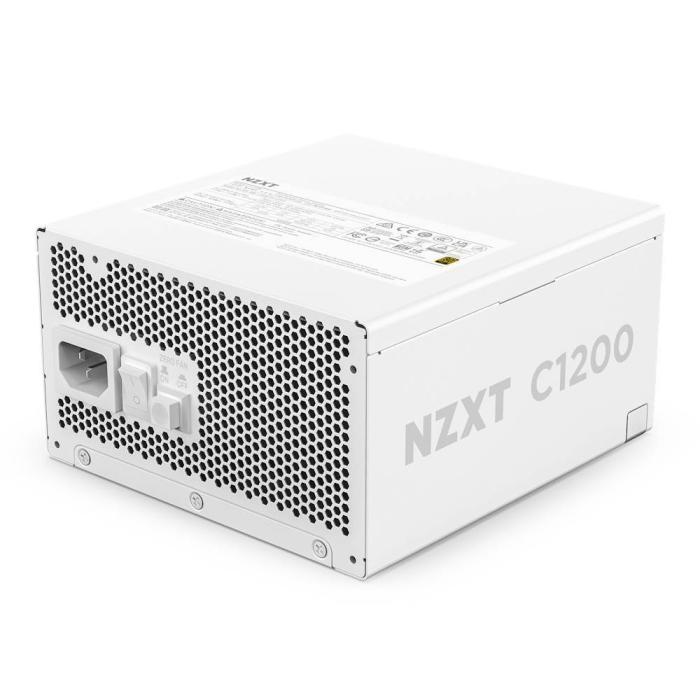

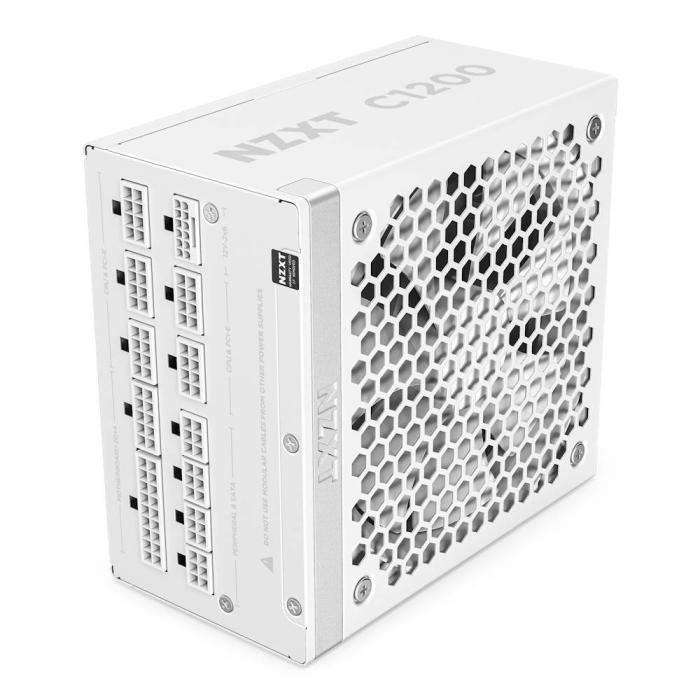

NZXT C1200 Gold ATX 3.1 power supply unit 1200 W 24-pin ATX White

Not avaliable

Amount

Brand: NZXT

SKU: 113883 PRC: 543924 EAN: 5056547206271 PN: pa-2g2bw-eu

Description

Specifications

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
Input current: 7 - 14 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 15 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (-12V): 0.3 A
Efficiency: 91.6%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

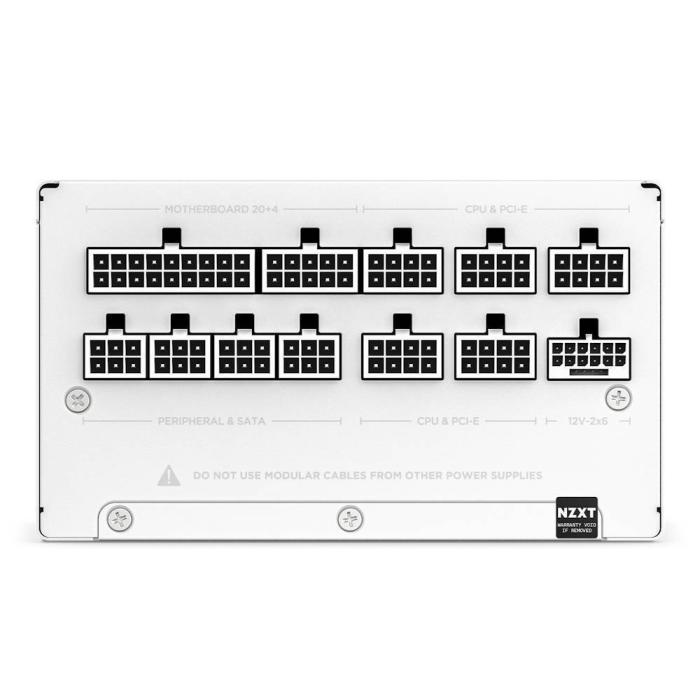

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 150, 500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150, 500 mm
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
ATX Power connector (24-pin): Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 44.5 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2300 RPM
Fan location: Top
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Compliance certificates: BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm

Logistics data

Warranty period: 10 year(s)
