Description

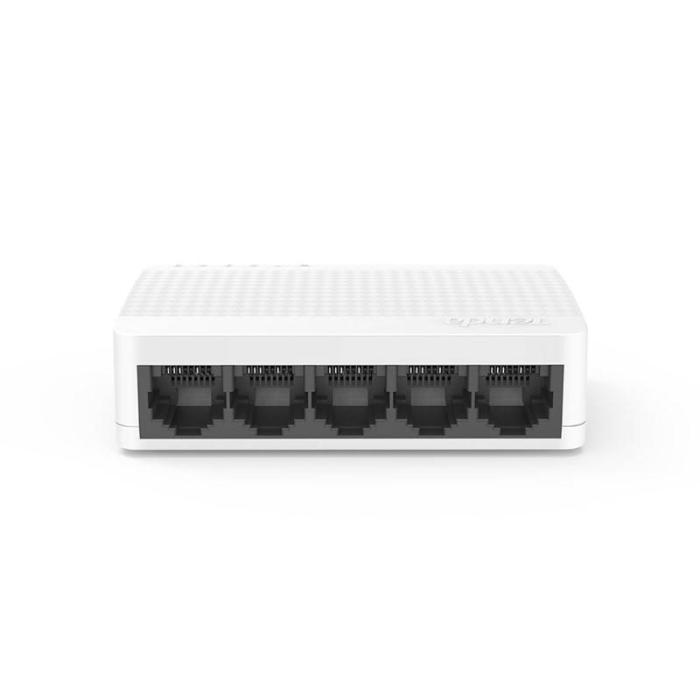

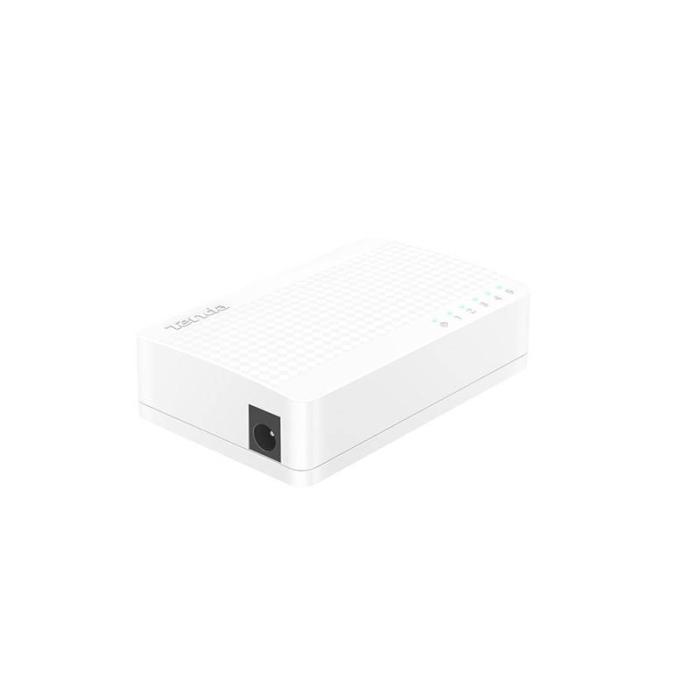

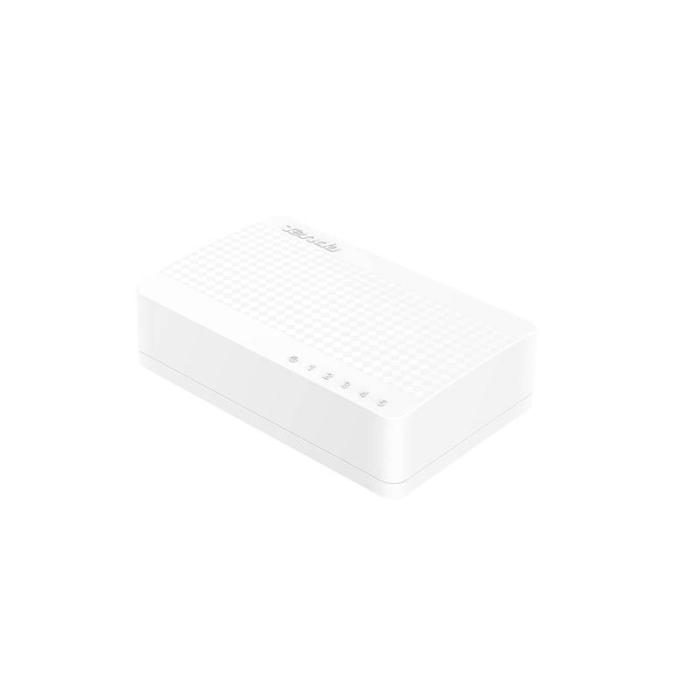

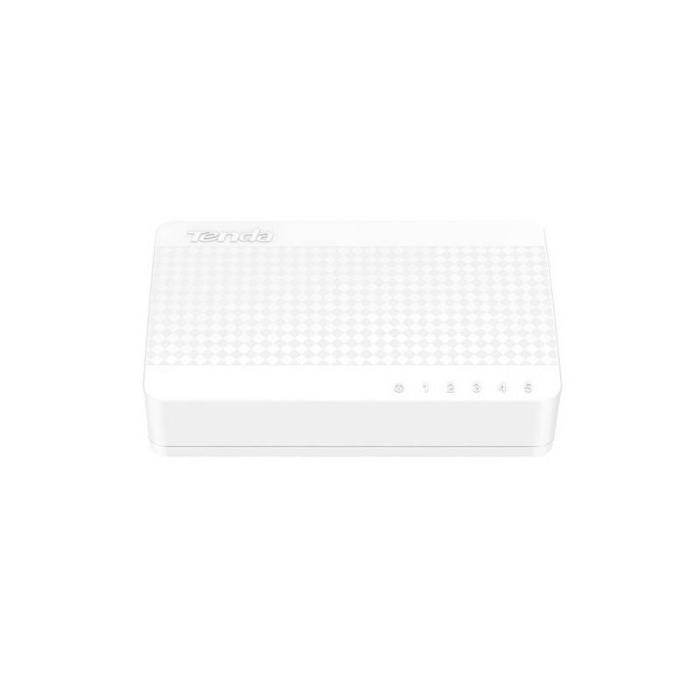

The Tenda S105V10.0 switch, in its white finish, is an unmanaged L2 layer model that offers five RJ-45 Fast Ethernet (10/100) ports to expand your home or office network with a wired connection. Its plug-and-play operation simplifies installation without prior configuration, while auto-negotiation and Auto MDI/MDI-X support automatically adapt the speed and cable type (Cat3 or Cat5) on each port. With a switching capacity of 1 Gbit/s and full duplex mode, this switch handles data transmission via store-and-forward, with a MAC address table of 1024 entries. IEEE 802.3, 802.3u and 802.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Cable types supported: Cat3, Cat5
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- Forwarding rate: 0.1488 Mpps
- MAC address table: 1024 entries
- Store-and-forward: Yes
Design
- Rack mounting: No
- Product colour: White
- LED indicators: Yes
Performance
- Compatible operating systems: Windows 8 32/64 bit，Windows 7 32/64 bit，Windows xp 32/64 bit，Linux，MAC OS
- Plug and Play: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Output voltage: 5 V
- Output current: 0.6 A
- Power consumption (max): 1.59 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 82 mm
- Depth: 52 mm
- Height: 22.3 mm
Packaging data
- AC adapter included: Yes
Certificates
- Certification: CE FCC RoHS
Logistics data
- Harmonized System (HS) code: 85176990
