Description

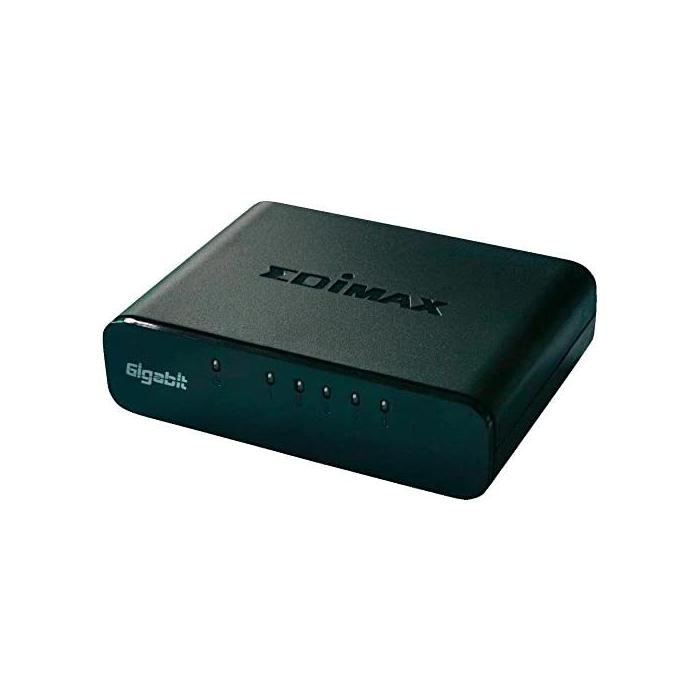

The Edimax ES-5500G V3 is an unmanaged L2 switch with five Gigabit Ethernet ports (10/100/1000), an additional USB 2.0 port, and comes in black. This model uses the store-and-forward method, supports jumbo frames up to 9000 bytes, and has a MAC address table of 2048 entries. It conforms to IEEE 802.3, 802.3ab, 802.3az, 802.3u, and 802.3x standards, with automatic MDI/MDIX detection and full duplex operation for efficient transfer. Compatible with category 3, 4, 5, and 5e cables, it offers a packet forwarding performance of 1,488,000 pps at 1 Gbps, ideal for expanding your home or small office network without prior configuration.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
- USB 2.0 ports quantity: 1
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 10BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- MAC address table: 2048 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Yes
Power
- Power supply included: Yes
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 98 mm
- Depth: 71 mm
- Height: 25.5 mm
- Weight: 112 g
Packaging content
- Cables included: USB
- Manual: Yes
Certificates
- Certification: FCC Class B CE
