Description

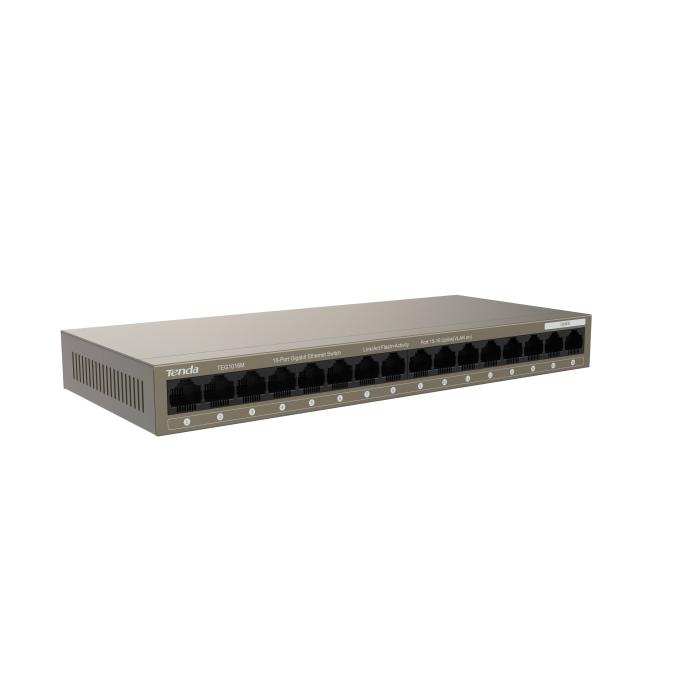

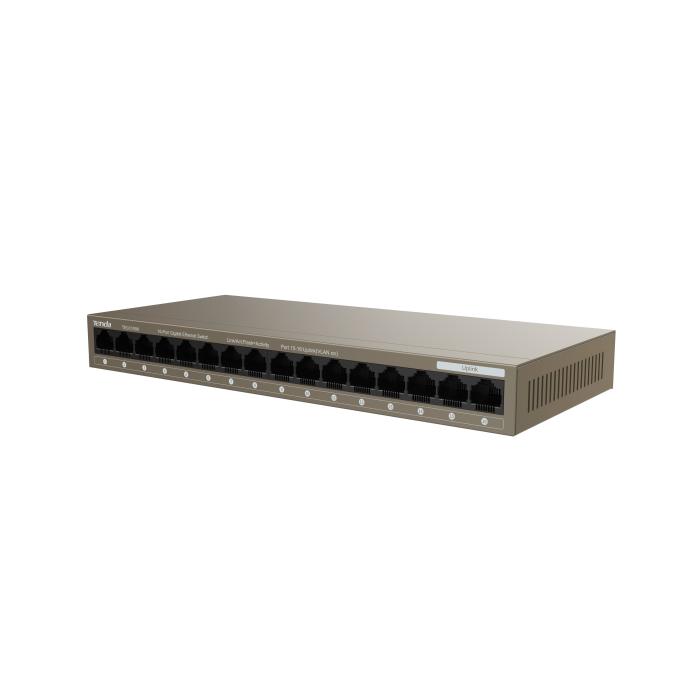

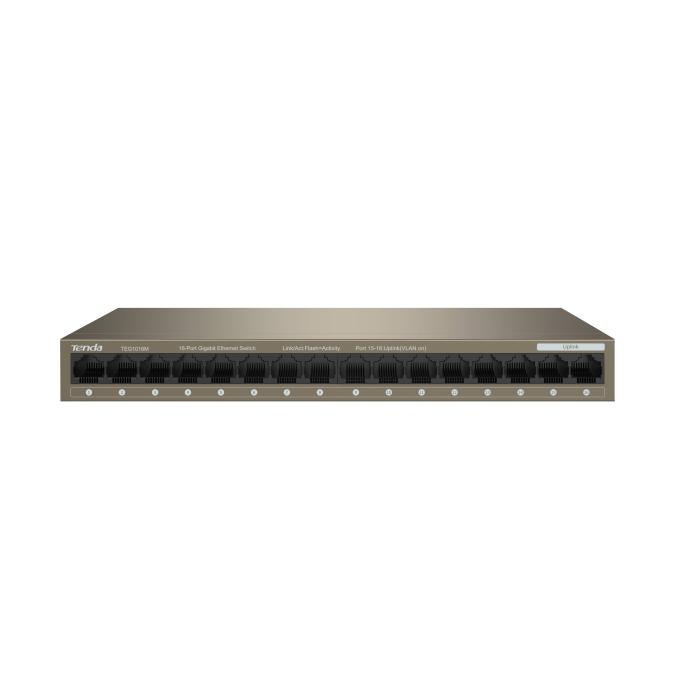

The Tenda TEG1016M unmanaged Gigabit Ethernet (10/100/1000) network switch offers 16 RJ-45 ports with auto-negotiation and auto-MDI/MDI-X, making it easy to connect devices directly without the need for crossover cables. With a switching capacity of 32 Gbit/s and support for jumbo frames up to 10000 bytes, it handles efficient data transfers in home networks or small offices. Compatible with Cat3, Cat5 and Cat5e cabling, as well as IEEE 802.3, 802.3u and 802.3ab standards, it also includes VLAN support and full duplex operation. Its unmanaged design allows for immediate use, while power is supplied via a DC input socket.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

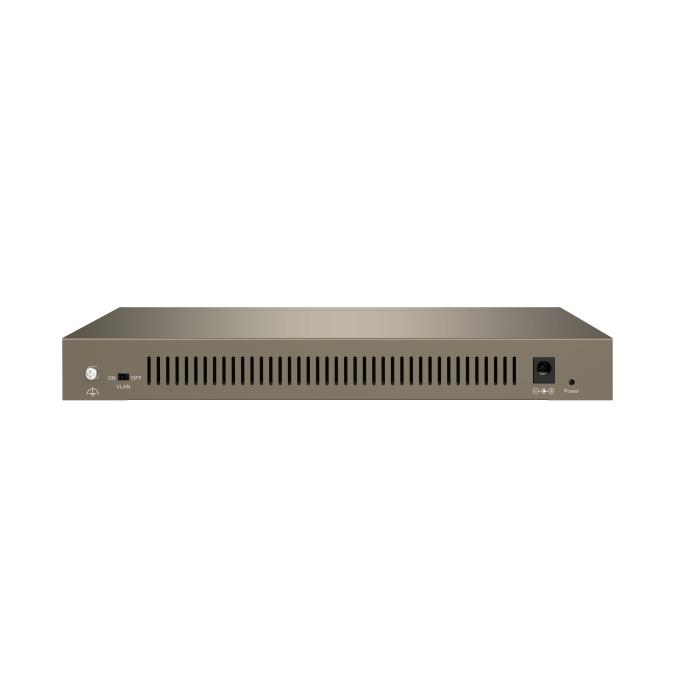

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Cable types supported: Cat3, Cat5, Cat5e
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Forwarding rate: 23.8 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet buffer memory: 2 MB
Design
- Rack mounting: Yes
- Stackable: Yes
- Housing material: Metal
- LED indicators: Activity, Link, Power
- Wall mountable: Yes
Power
- Power source: AC/DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 12 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 235 mm
- Depth: 103 mm
- Height: 27 mm
Certificates
- Certification: CE, FCC, RoHS
