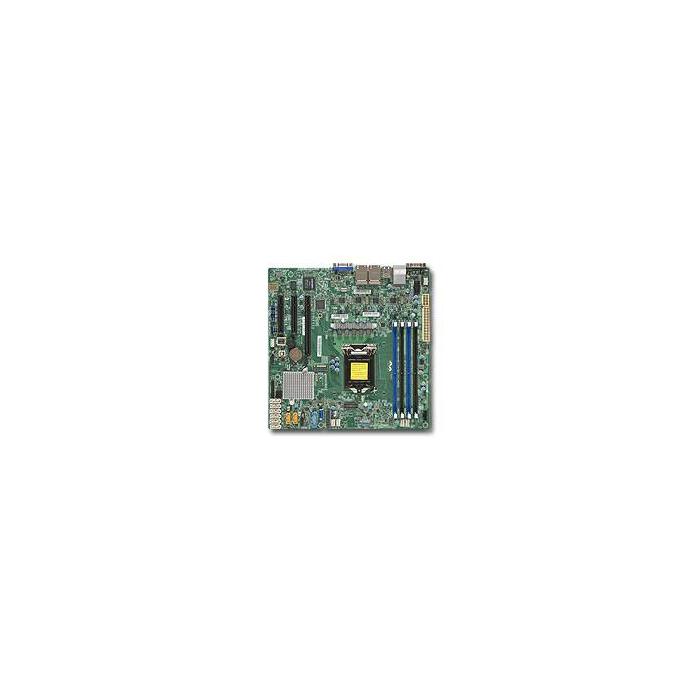

Supermicro X11SSH-LN4F Intel® C236 LGA 1151 (Socket H4) micro ATX
More info
Brand: SUPERMICRO
385.00 €Stock available: 0 units.
Unavailable
SKU:
112860
PRC:
267603
EAN:
4260387380683
PN:
MBD-X11SSH-LN4F-B
Description
Supermicro X11SSH-LN4F motherboard in micro ATX form factor with LGA 1151 socket (Socket H4) and Intel C236 chipset, designed for Intel Xeon E3-1200 series processors with 14 nm lithography and up to four cores. Supports up to 64 GB of DDR4-SDRAM memory in ECC configurations at speeds of 1600, 1866 or 2133 MHz with a voltage of 1.2 V. Offers SATA III connectivity with RAID support for levels 0, 1, 5 and 10, plus four internal USB 2.0 connectors and a TPM connector for security. Includes the integrated graphics adapter Aspeed AST2400, covering basic management and display needs in server environments and workstations.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1151 (Socket H4)
- Intel Xeon series: E3-1200
- Lithography: 14 nm
- Processor number of cores supported: 4
- Processor thermal power (max): 80 W
- ECC supported by processor: Yes
Memory
- Supported memory types: DDR4-SDRAM
- Memory voltage: 1.2 V
- ECC сompatibility: ECC
- Supported memory clock speeds: 1600, 1866, 2133 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive interfaces: SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- On-board graphics card model: Aspeed AST2400
Internal I/O
- USB 2.0 connectors: 4
- Number of SATA III connectors: 8
- Number of COM connectors: 1
- TPM connector: Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
- COM ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel® C236
- Motherboard form factor: micro ATX
Expansion slots
- PCI Express x8 (Gen 3.x) slots: 2
BIOS
- BIOS type: AMI
- BIOS memory size: 16 Mbit
- ACPI version: 4.0
Processor special features
- Trusted Platform Module (TPM): Yes
- Intel® Virtualization Technology (Intel® VT): VT-x
- Intel Trusted Execution Technology: Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Trusted Platform Module (TPM) version: 1.2
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 224 mm
- Depth: 224 mm
Other features
- PCI Express x4 (Gen 3.x) slots: 1
- Supported DIMM module capacities: 4GB, 8GB, 16GB
- Maximum UDIMM memory: 64 GB
- Number of DIMM slots: 4
- Number of processors supported: 1
- Intel® vPro™ Platform Eligibility: Yes
Technical details
- USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
- Compliance certificates: RoHS
