Description

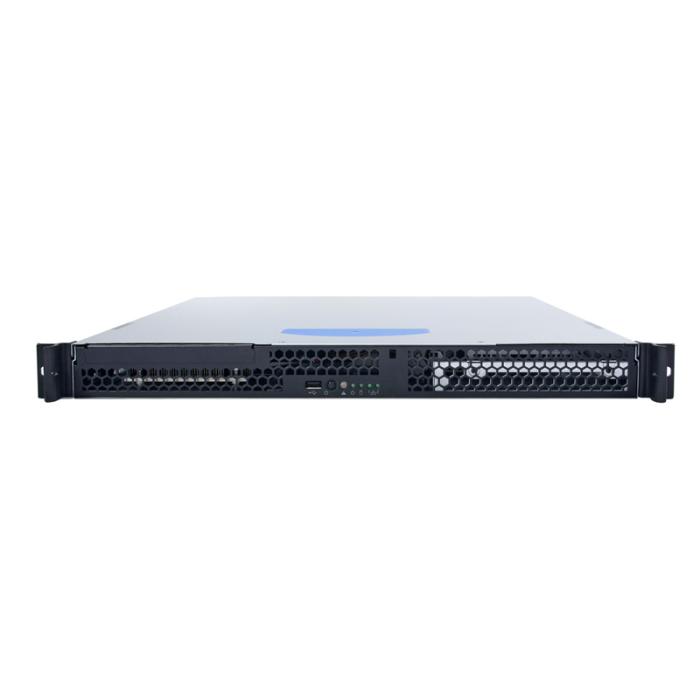

Intel SR1630BCR barebone in 1U rack format with a black aluminium finish, designed for building a custom server with LGA 1366 (Socket B) socket. Its Intel 5500 chipset supports up to two Intel Xeon processors from the E5500, E5600, L5500, L5600, X5500, and X5600 series, with a maximum supported frequency of 3.06 GHz per CPU. The board integrates eight 240-pin DIMM slots for DDR3-SDRAM memory with ECC support, reaching up to 32.06 GB across RDIMM and UDIMM. In terms of storage, it features two 3.5-inch bays, allowing the installation of up to two compatible drives. This barebone provides the structural and electrical foundation for you to configure your own professional computing system.
Specifications
Processor
- Motherboard chipset: Intel® 5500
- Processor socket: LGA 1366 (Socket B)
- Processor manufacturer: Intel
- Processor family: Intel
- Number of processors supported: 2
- Supported processor frequency (max): 3.06 GHz
- Maximum internal memory supported by processor: 32 GB
- Compatible processor series: Intel® Xeon®
- Intel Xeon series: E5500, E5600, L5500, L5600, X5500, X5600
Memory
- Number of DIMM slots: 8
- Supported memory types: DDR3-SDRAM
- Maximum internal memory: 32.06 GB
- Maximum RDIMM memory: 32 GB
- Maximum UDIMM memory: 32 GB
- Memory form factor: 240-pin DIMM
- ECC: Yes
Storage
- Number of storage drives supported: 2
- Number of 3.5" bays: 2
- Storage drive sizes supported: 3.5"
- Supported storage drive interfaces: Serial ATA, Serial ATA II
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T

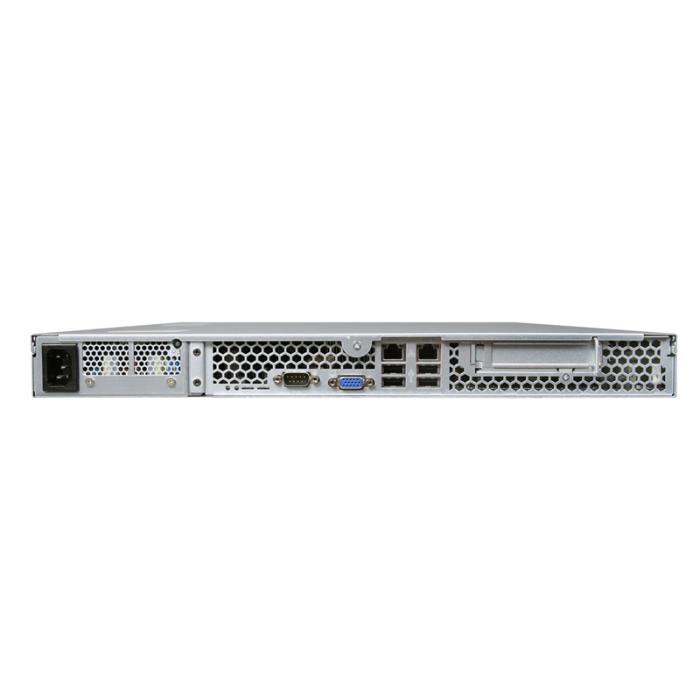

Ports & interfaces
- USB ports quantity: 5
- USB 2.0 ports quantity: 5
- Ethernet LAN (RJ-45) ports: 2
- Serial ports quantity: 2
- Number of SATA connectors: 6
Expansion slots
- PCI Express slots version: 2.0
- PCI Express x8 slots: 1
- PCI Express x8 (Gen 2.x) slots: 1
Features
- Integrated BMC with IPMI: Yes
- Intel Node Manager: No
- Market segment: Server
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G135162
- ARK ID: 48652
Logistics data
- Harmonized System (HS) code: 8473305100
Processor special features
- Intelligent Platform Management Interface (IPMI) support: Yes
- Intel Remote Management Module Support: AXXRMM3
- Intel Intelligent Power Node Manager: No
- Intel Server Management Software: Yes
Design
- Chassis type: Rack (1U)
- Product colour: Aluminium, Black
- Rack-Friendly board: Yes
- Redundant fans support: No
Power
- Power supply type: AC
- Power supply: 400 W
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
Weight & dimensions
- Width: 43.2 mm
- Depth: 43.1 mm
- Height: 508 mm
Packaging data

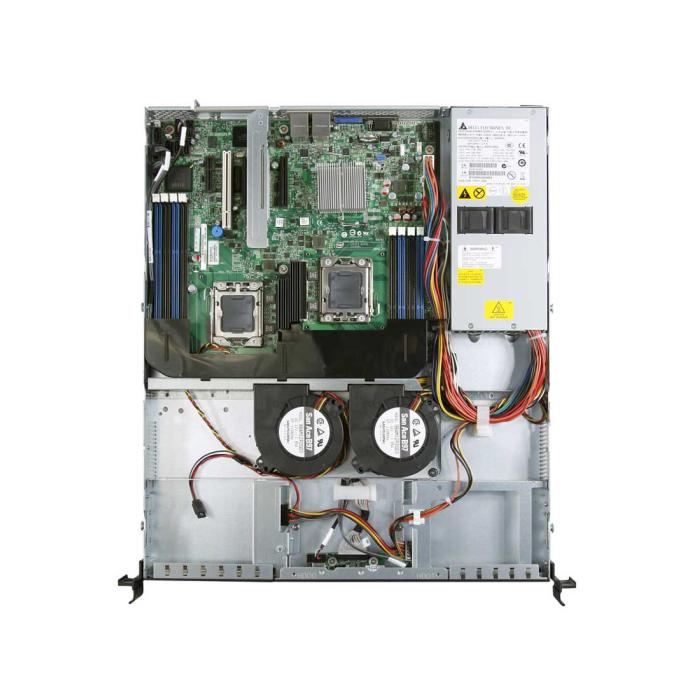

- Packaging content: (1) Intel Server Board S5500BC; (2) Fixed drive brackets; (1) Cabled front panel; (2) Fixed cooling fans; (1 )Low-profile PCI Ex
- Bundled software: Intel Server Management Software
Other features
- Graphics card family: Intel
- CPU configuration (max): 2
- On-board graphics card: Yes
- 3.5" HDD support: Supports up to two fixed 3.5" SATA drives
- Additional information URL: http://www.intel.com/products/server/systems/sr1630bc/sr1630bc-overview.htm
- Chassis dimensions: 43.2 x 429.3 x 508 mm (1.7 x 16.9 x 20")
- Expected discontinuance date: Q2'12
- Extended warranty available for purchase (select countries): Yes
- Last change: 63903513
- Launch date: Q1'09
- Redundant fans: Not Supported
- Status: Discontinued
- Supported RAID configuration: 6 SATA ports with Intel® Embedded Server RAID
- Supported board: Intel Server Board S5500BC
- Target market: Cloud/Datacenter
- Maximum memory: 32.06 GB
- Product type: System
- Product family: Legacy server/storage/workstation system
- Product series: Intel SR1000BC
- Product codename: Bluff Creek
