Description

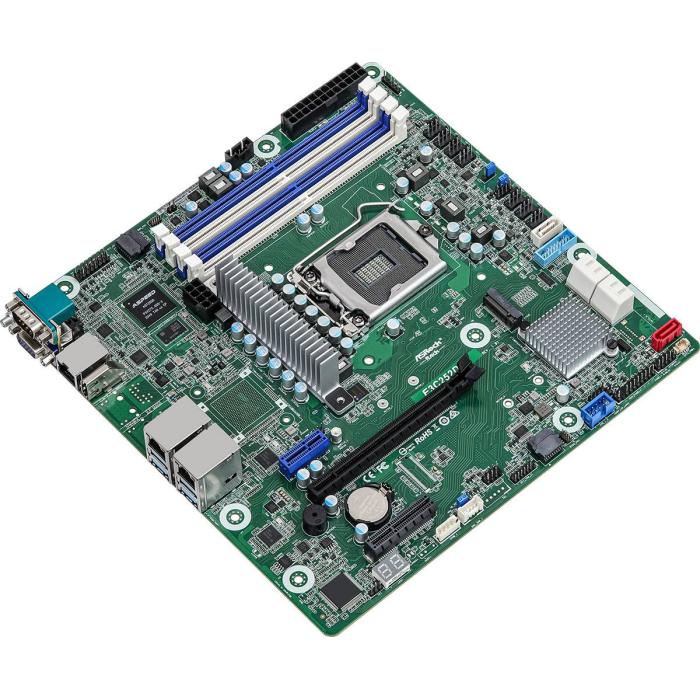

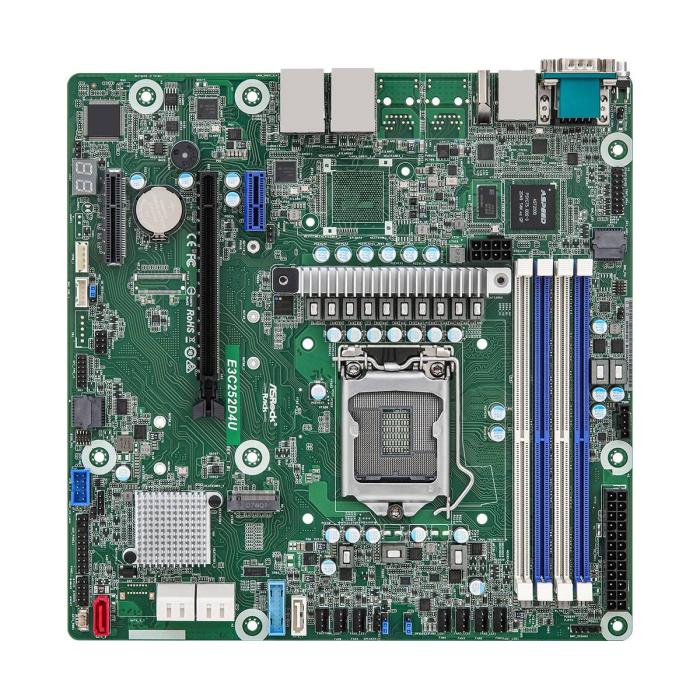

ASRock E3C252D4U motherboard in micro ATX form factor with LGA 1200 (Socket H5) socket, designed for Intel Xeon E-2300 series processors and compatible with DDR4-SDRAM memory across its four DIMM slots, supporting ECC and non-ECC modules up to 32 GB at a maximum speed of 2666 MHz with a voltage of 1.2 V. It incorporates the integrated Aspeed AST2500 graphics with 256 MB of dedicated memory, and offers RAID support at levels 0, 1, 5, and 10 for its M.2 and SATA storage interfaces. Connect your drives and configure your storage arrays hassle-free, as this board manages both ECC-protected and standard memory, adapting to the needs of your server or workstation.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1200 (Socket H5)
- Compatible processor series: Intel® Xeon®
- Intel Xeon series: E-2300
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory voltage: 1.2 V
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 2666 MHz
- Maximum internal memory: 32 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Graphics card family: ASPEED
- Graphics card: AST2500
- On-board graphics card model: Aspeed AST2500
- On-board graphics card memory: 256 MB
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel I210
- Wi-Fi: No
Features
- Motherboard chipset: Intel C252
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
BIOS
- BIOS type: UEFI AMI
- ACPI version: 6.2
- System management BIOS (SMBIOS) version: 3.3
