Description

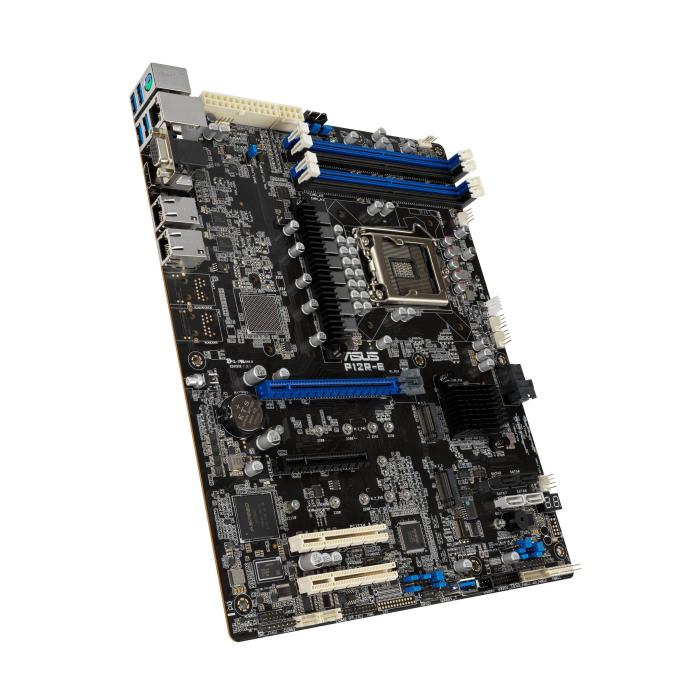

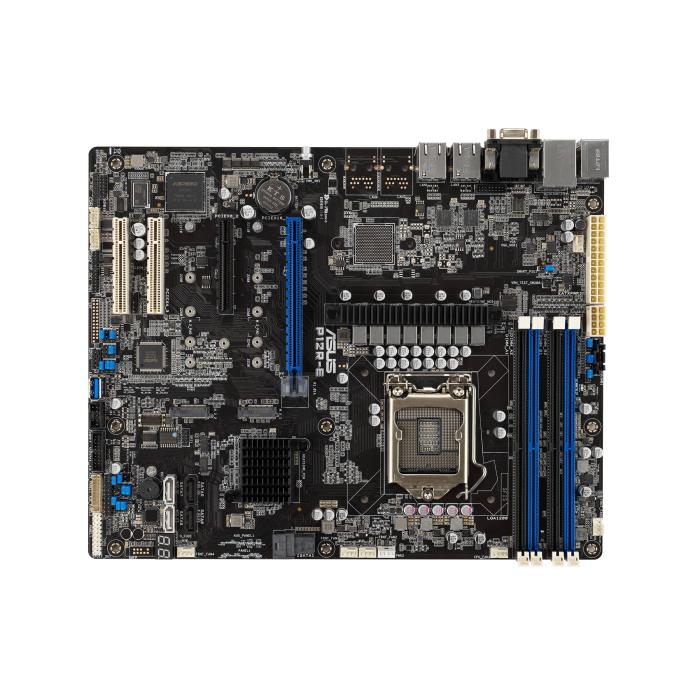

ASUS P12R-E motherboard with LGA 1200 (Socket H5) socket, Intel C256 chipset and ATX form factor. Supports Intel Pentium and Intel Xeon E processors, as well as DDR4-SDRAM memory at speeds of 2666, 2933 and 3200 MHz, with a maximum capacity of 128 GB. It features Aspeed AST2600 graphics with 64 MB of memory and offers two USB 3.2 Gen 1 ports, two USB 3.2 Gen 2 ports and one VGA port. For storage it has RAID compatibility and M.2 and SATA III interfaces for HDD and SSD drives. Its connectivity includes Gigabit Ethernet and PC health monitoring covers CPU and fan, with a component designed for servers. It measures 305 x 68 x 244 mm (width x height x depth) and weighs 800 g.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1200 (Socket H5)
- Compatible processor series: Intel® Pentium®, Intel Xeon E
Memory
- Supported memory clock speed (max): 3200 MHz
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported memory clock speeds: 2666, 2933, 3200 MHz
- Maximum internal memory: 128 GB
- Supported memory module capacities: 8GB, 16GB, 32GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 8
- Number of storage drives supported: 10
- RAID support: Yes
Graphics
- Graphics card family: ASPEED
- On-board graphics card: Yes
- On-board graphics card model: Aspeed AST2600
- On-board graphics card memory: 64 MB
Internal I/O
- USB 2.0 connectors: 1
- ATX Power connector (24-pin): Yes
- Chassis intrusion connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 8
- Power fan connector: Yes
- Number of COM connectors: 1
- TPM connector: Yes

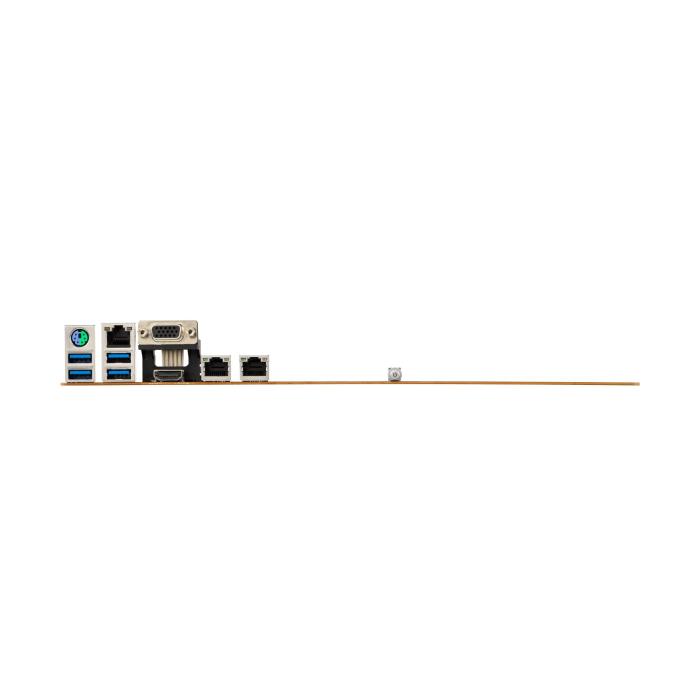

Rear panel I/O ports
- Ethernet LAN (RJ-45) ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel C256
- PC health monitoring: CPU, Fan
- Component for: Server
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
Expansion slots
- PCI Express x8 (Gen 3.x) slots: 2
- PCI Express x8 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
Operational conditions
- Operating temperature (T-T): 10 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 20 - 90%
Logistics data
- Harmonized System (HS) code: 84733020
Packaging data
- Package width: 341 mm
- Package depth: 281 mm
- Package height: 78 mm
- Package weight: 1.5 kg
Weight & dimensions
- Height: 68 mm
- Width: 305 mm
- Depth: 244 mm
Other features
- Weight: 800 g
