Description

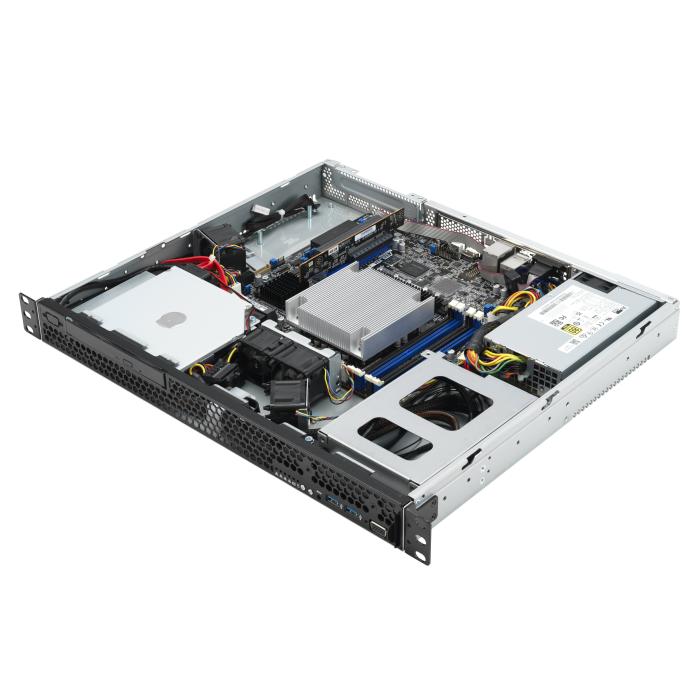

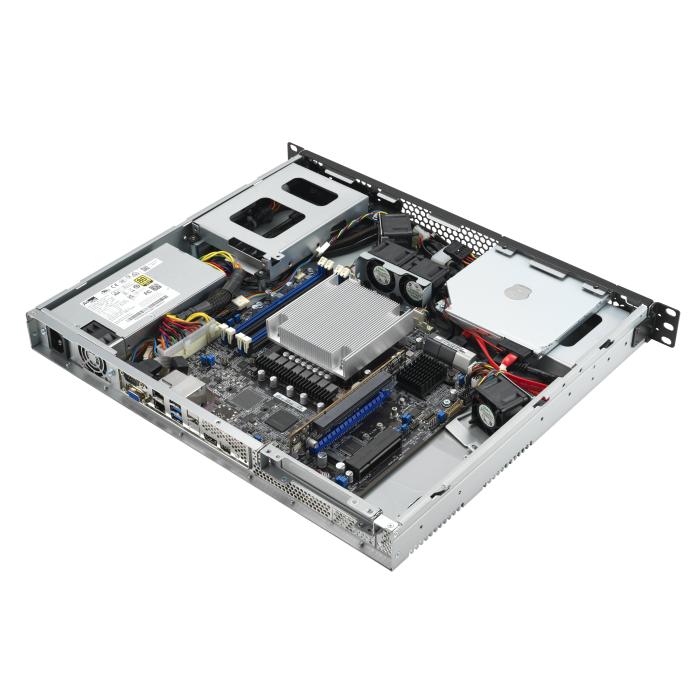

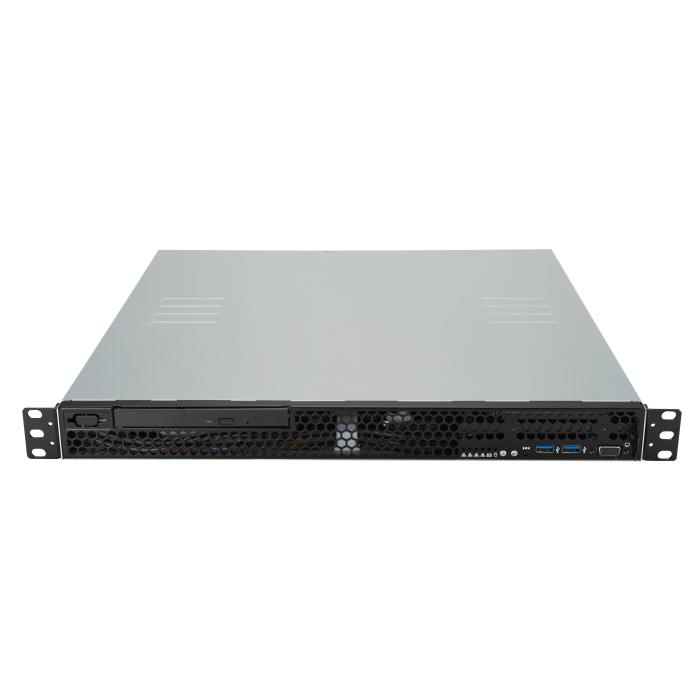

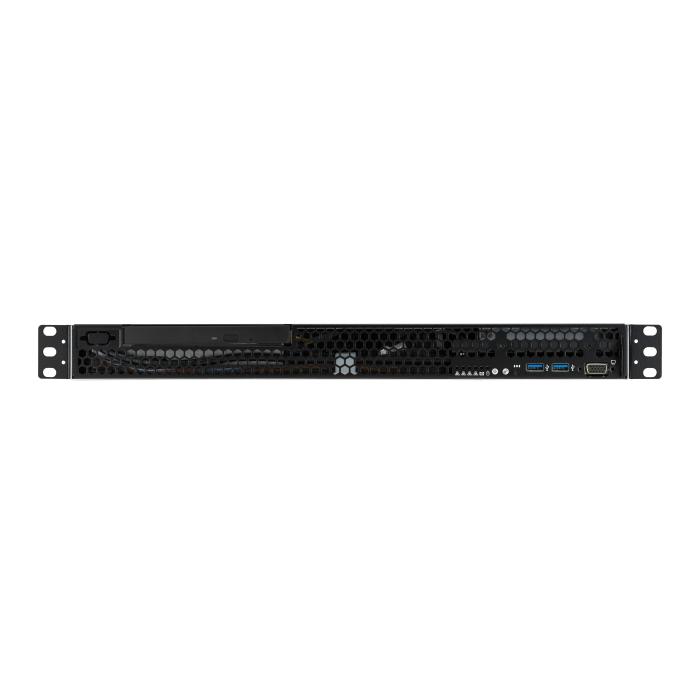

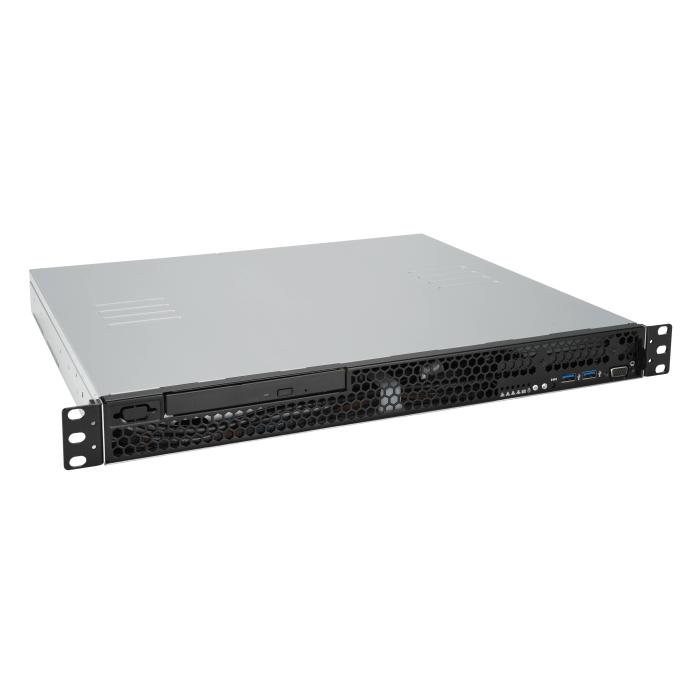

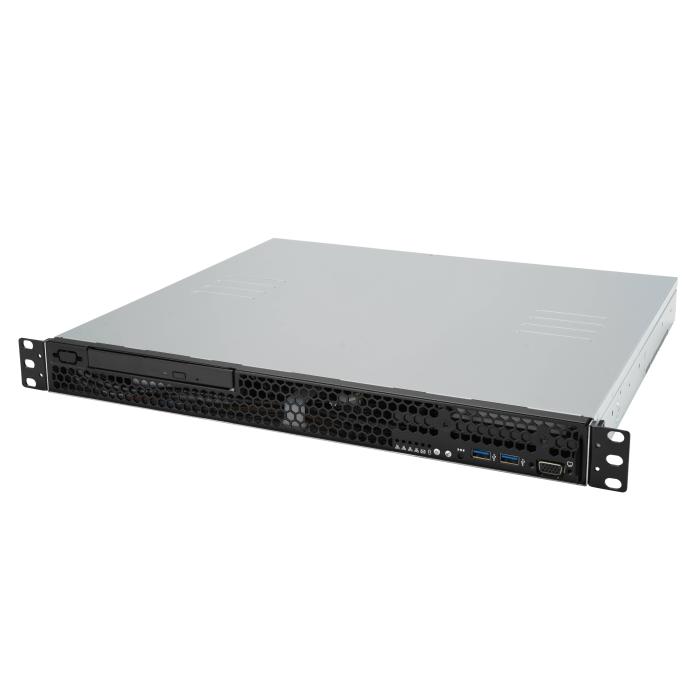

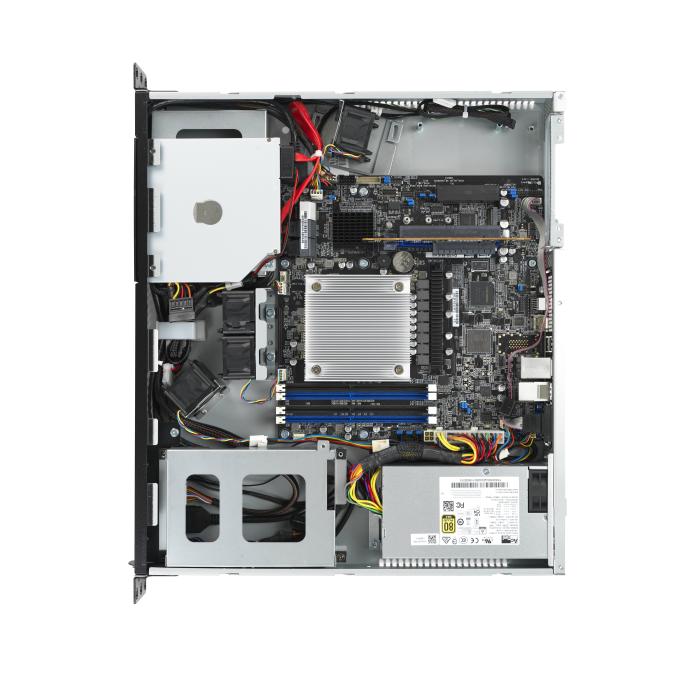

1U rack server ASUS RS100-E11-PI2 in silver finish, designed to house one Intel Xeon processor with LGA 1200 socket and Intel C252 chipset, without built-in CPU. Supports up to 128 GB of DDR4-SDRAM memory across four DIMM slots with dual channel and speeds of 2666 or 3200 MHz. Regarding storage, it supports HDD and SSD drives in 2.5, 3.5, and M.2 formats, with RAID levels 0, 1, 5, and 10. Its integrated Aspeed AST2600 graphics includes 64 MB of memory for basic video output.
Specifications
Processor
- Built-in processor: No
- Motherboard chipset: Intel C252
- Processor socket: LGA 1200 (Socket H5)
- Processor manufacturer: Intel
- Processor family: Intel® Xeon®
- Number of processors supported: 1
Memory
- Number of DIMM slots: 4
- Supported memory types: DDR4-SDRAM
- Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB
- Maximum UDIMM memory: 128 GB
- Supported UDIMM clock speeds: 2666, 3200 MHz
- Memory channels: Dual-channel
Storage
- Storage drive sizes supported: 2.5, 3.5, M.2
- Supported storage drive types: HDD & SSD
- RAID levels: 0, 1, 5, 10
- SSD form factor: M.2
Graphics
- On-board graphics card model: Aspeed AST2600
- On-board graphics card memory: 64 MB
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s

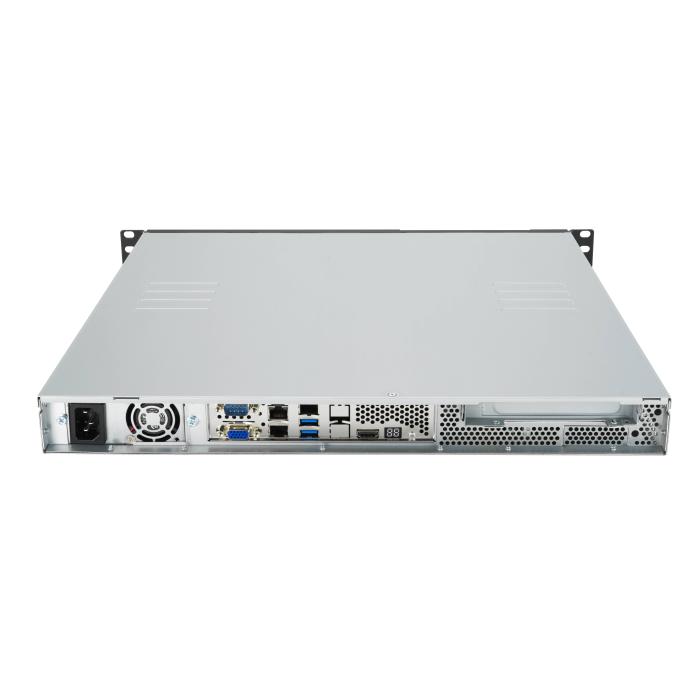

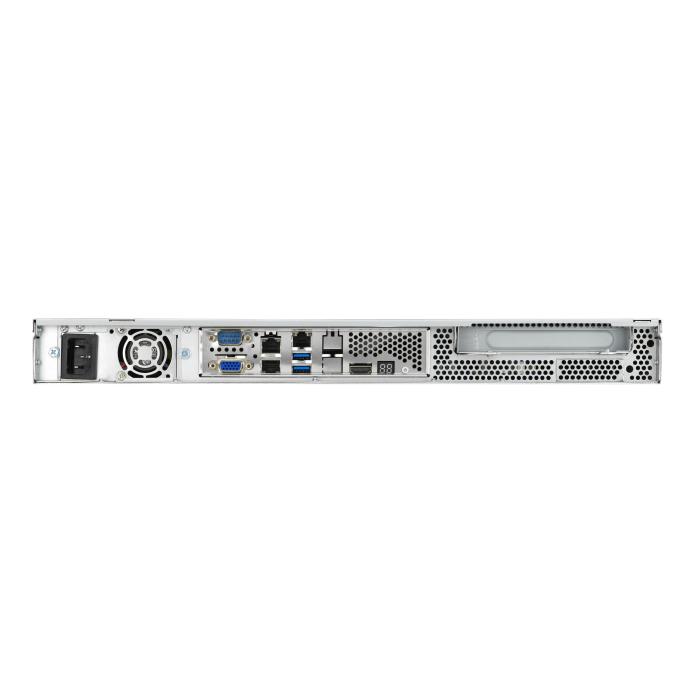

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 2
- COM ports quantity: 1
Expansion slots
- PCI Express slots version: 4.0
- Number of M.2 (M) slots: 1
Design
- Chassis type: Rack (1U)
- Product colour: Silver
- LED indicators: Yes
- On/off switch: Yes
- Reset button: Yes
- Certification: BSMI, CE, FCC(Class A)
Power
- Power supply: 350 W
- 80 PLUS certification: 80 PLUS Gold
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 380 mm
- Depth: 430 mm
- Height: 44 mm
- Weight: 7.5 kg
Packaging data
- Package weight: 11.7 kg
