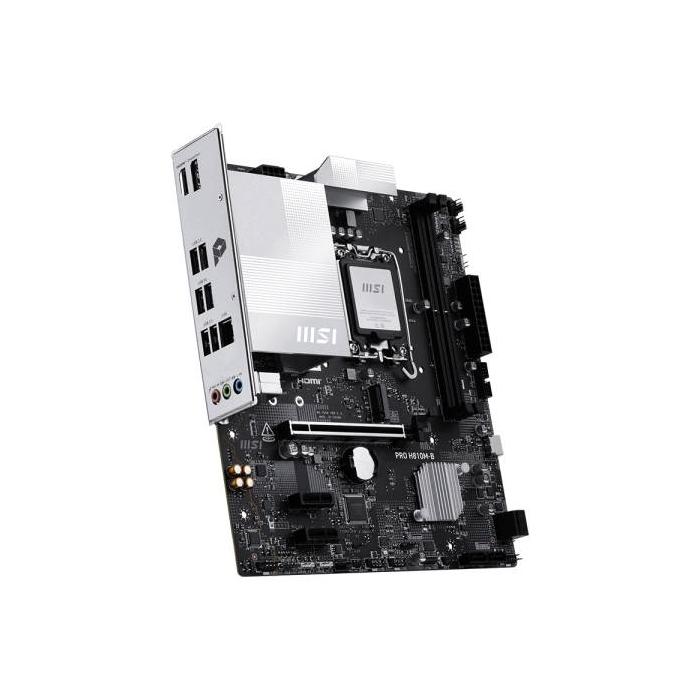

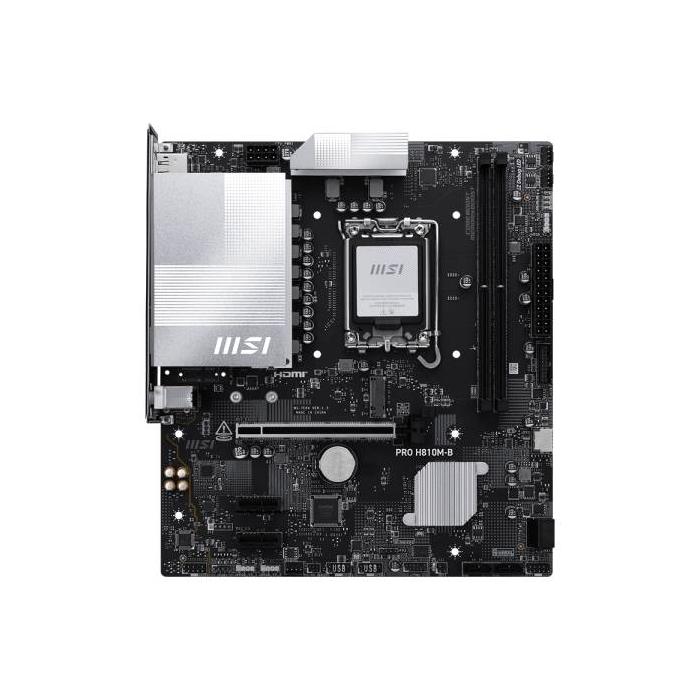

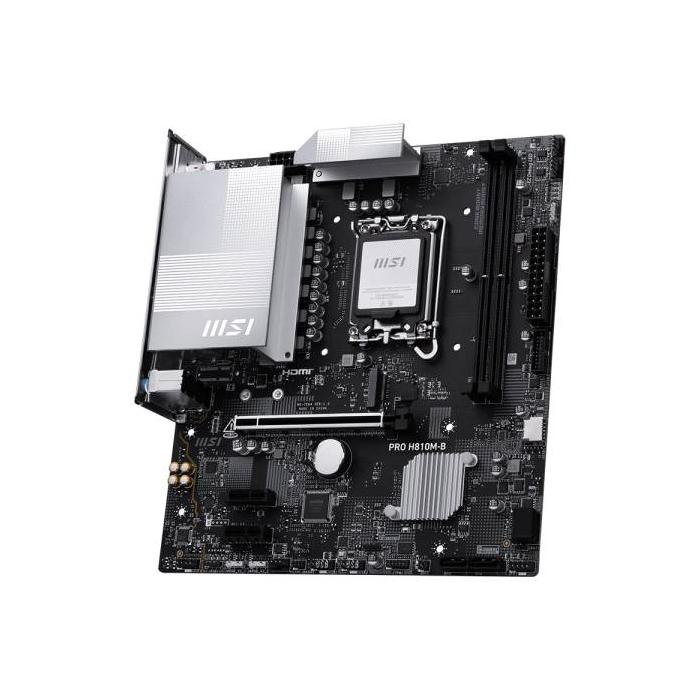

MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX

Return

MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX

88.43 €

88.43 € without VAT

MSI PRO H810M-B motherboard Intel H810 LGA 1851 (Socket V1) micro ATX. More info

Amount

Brand: MSI

SKU: 117304 PRC: 611462 EAN: 4711377337977

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800, 6400 MHz
Maximum internal memory: 128 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 3
Number of SATA III connectors: 4
Audio connector: Yes
Front panel audio connector: Yes
CD/AUX audio in: Yes
ATX Power connector (24-pin): Yes
Power fan connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 1

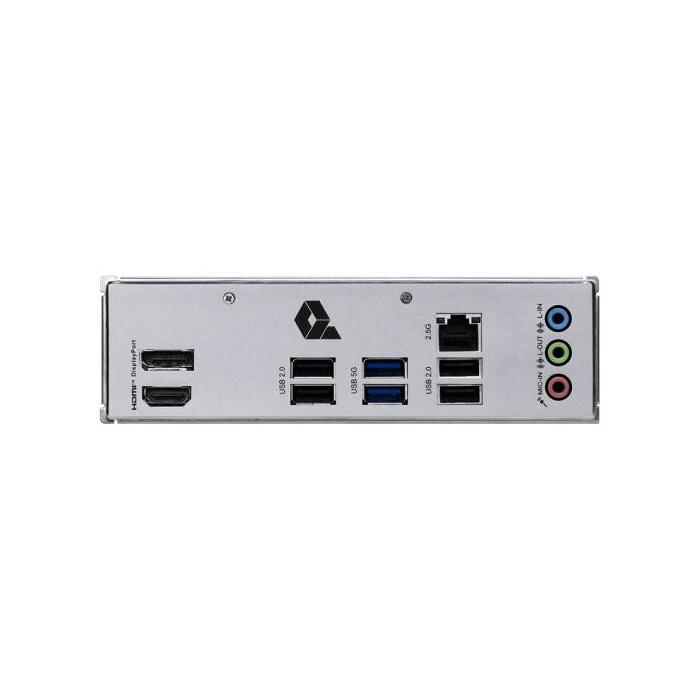

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Features

Motherboard chipset: Intel H810
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x1 slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 1

Weight & dimensions

Width: 220 mm
Depth: 243.8 mm

Packaging content

Cables included: SATA
