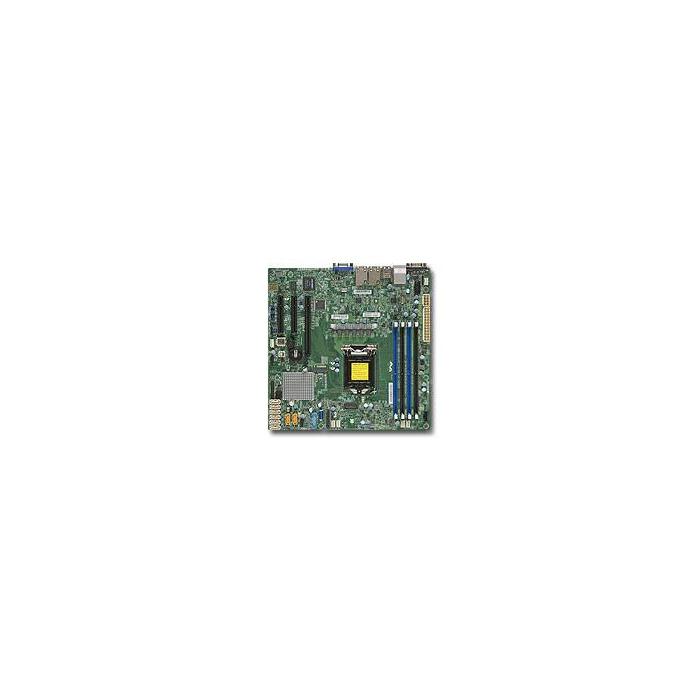

Supermicro X11SSH-F Intel® C236 LGA 1151 (Socket H4) micro ATX
More info
Brand: SUPERMICRO
383.18 €
316.68 €
without VAT
Stock available: 1 ud.
Get it
on the
September 1
/
September 2
SKU:
97825
PRC:
419570
EAN:
672042198641
PN:
MBD-X11SSH-F-B
Description
Supermicro X11SSH-F motherboard with Intel C236 chipset and LGA 1151 socket in micro ATX form factor, designed for Intel Xeon E3-1200 processors with a maximum thermal design power of 80 W. Supports up to 64 GB of DDR4-SDRAM ECC memory at speeds of 1600, 1866 and 2133 MHz with a voltage of 1.2 V. Features eight SATA III connectors with RAID 0, 1, 5 and 10 support, plus an integrated Aspeed AST2400 graphics adapter. The rear panel includes a VGA port and an IPMI LAN connector for remote management, along with four internal USB 2.0 connectors and a TPM connector for security.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1151 (Socket H4)
- Intel Xeon series: E3-1200
- Processor thermal power (max): 80 W
Memory
- Supported memory types: DDR4-SDRAM
- Memory voltage: 1.2 V
- ECC сompatibility: ECC
- Supported memory clock speeds: 1600, 1866, 2133 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive interfaces: SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- On-board graphics card model: Aspeed AST2400
Internal I/O
- USB 2.0 connectors: 4
- Number of SATA III connectors: 8
- TPM connector: Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel® C236
- Motherboard form factor: micro ATX
Expansion slots
- PCI Express x8 (Gen 3.x) slots: 2
BIOS
- BIOS type: AMI
- BIOS memory size: 16 Mbit
- ACPI version: 4.0
Processor special features
- Intel® Anti-Theft Technology (Intel® AT): No
- Intel® Clear Video HD Technology (Intel® CVT HD): No
- Intel Dual Display Capable Technology: No
- Intel Fast Memory Access: No
- Trusted Platform Module (TPM): Yes
- Intel® Virtualization Technology (Intel® VT): VT-x
- Intel Trusted Execution Technology: Yes
- Intel Remote PC Assist Technology (RPAT): No
- Intel Quiet System Technology (QST): No
- Intel Quick Resume Technology: No
- Intel® Matrix Storage Technology (Intel® MST): No
- Intel I/O Acceleration Technology: No
- Intel Flex Memory Access: No
- Intel Client Initiated Remote Access (CIRA) technology: No
- Intel® Active Management Technology (Intel® AMT): No
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel AC'97 technology: No
- Trusted Platform Module (TPM) version: 1.2
- Intel® High Definition Audio (Intel® HD Audio): No
- Intel Unite Technology: No
- Intel Rapid Storage Technology enterprise: No
- Intelligent Platform Management Interface (IPMI) support: No
- Intel® Remote Wake Technology (Intel® RWT): No
- Intel Advanced Management Technology: No
- Intel Server Management Software: No
- Intel Server Customization Technology: No
- Intel Build Assurance Technology: No
- Intel Quiet Thermal Technology: No
- Intel Efficient Power Technology: No
- Intel Intelligent Power Node Manager: No
Weight & dimensions
- Width: 224 mm
- Depth: 224 mm
Other features
- PCI Express x4 (Gen 3.x) slots: 1
- Supported DIMM module capacities: 4GB, 8GB, 16GB
- Maximum UDIMM memory: 64 GB
- Number of DIMM slots: 4
- Number of processors supported: 1
- Intel® vPro™ Platform Eligibility: Yes
