Description

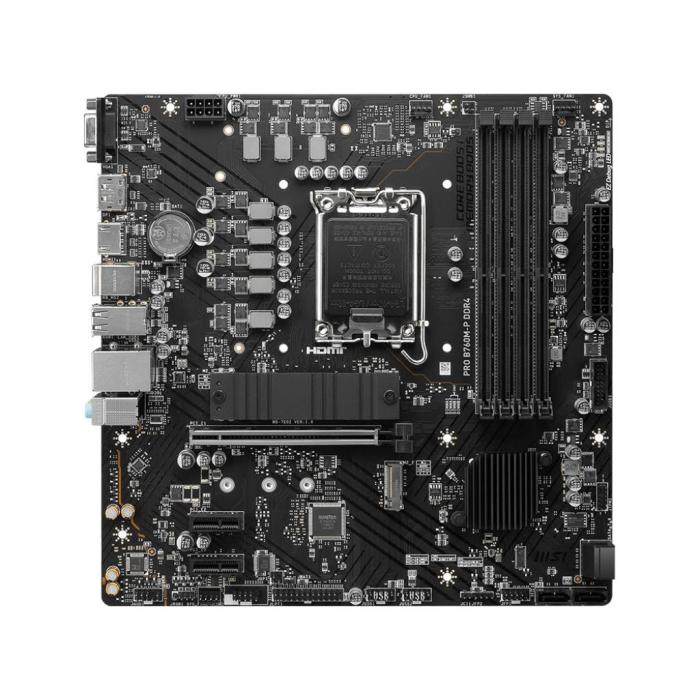

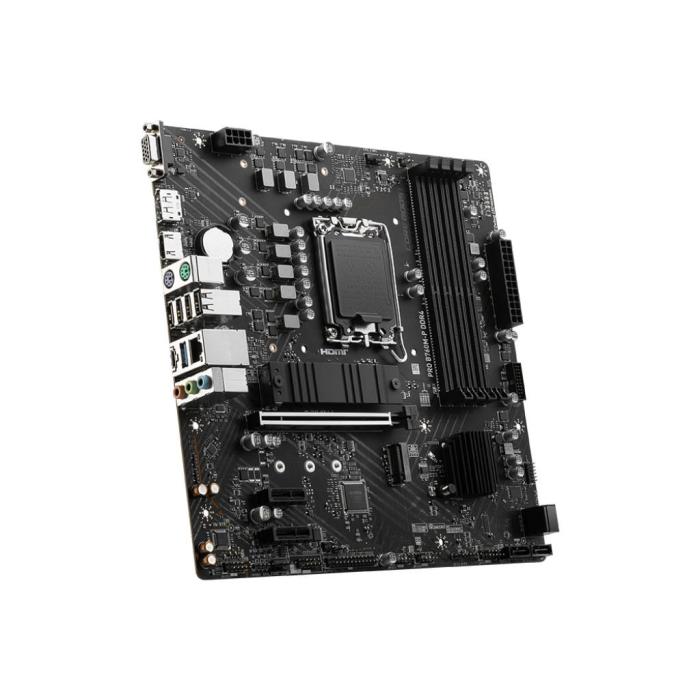

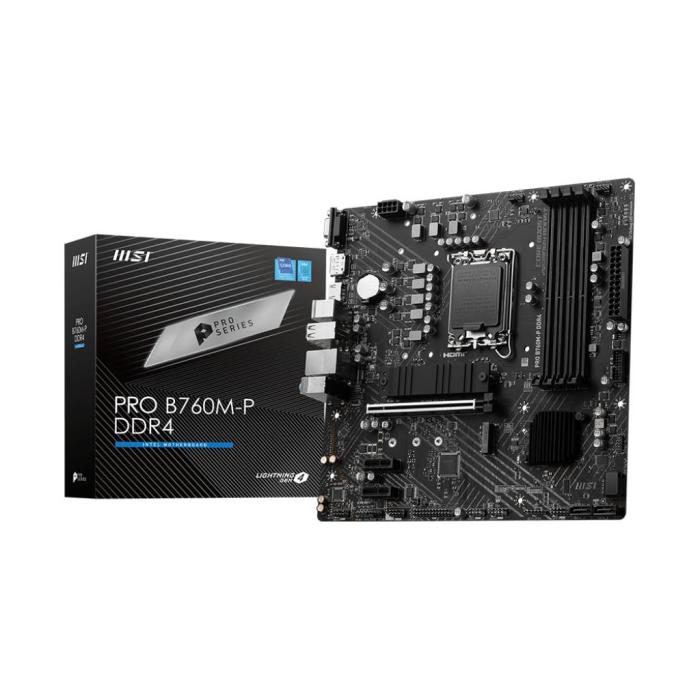

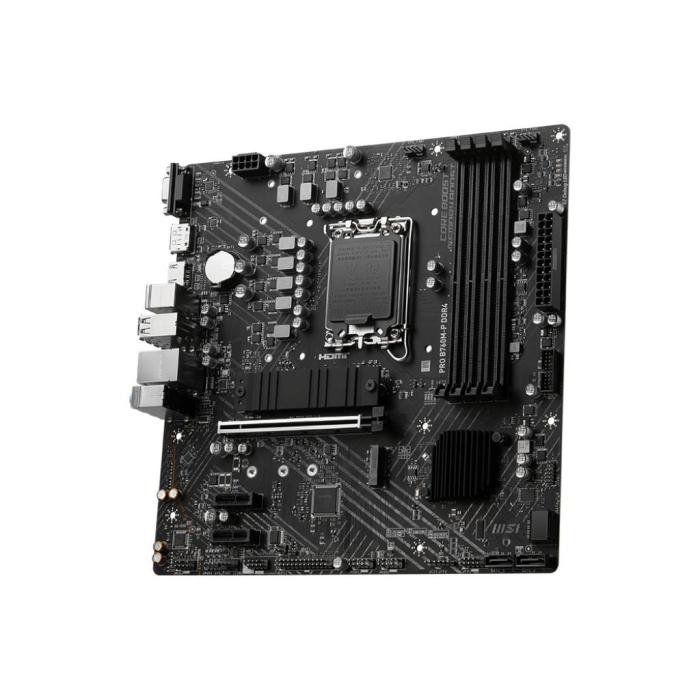

The MSI PRO B760M-P DDR4 is a black micro ATX motherboard with LGA 1700 socket, compatible with Intel Celeron and Pentium Gold processors. It supports up to 128 GB of DDR4-SDRAM memory spread across its four DIMM slots, with dual channel support and clock speeds of up to 4800 MHz. For storage it offers M.2 and SATA III interfaces, as well as RAID support at levels 0, 1, 5 and 10. It includes four internal USB 2.0 connectors to expand the computer's ports. Its micro ATX form factor makes it suitable for compact builds that do not compromise on memory expansion capacity. The memory does not support ECC error correction, so it works with standard non-ECC modules.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
- Maximum number of SMP processors: 1
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
- Supported memory clock speed (max): 4800 MHz
- Maximum internal memory: 128 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- RGB LED pin header: Yes

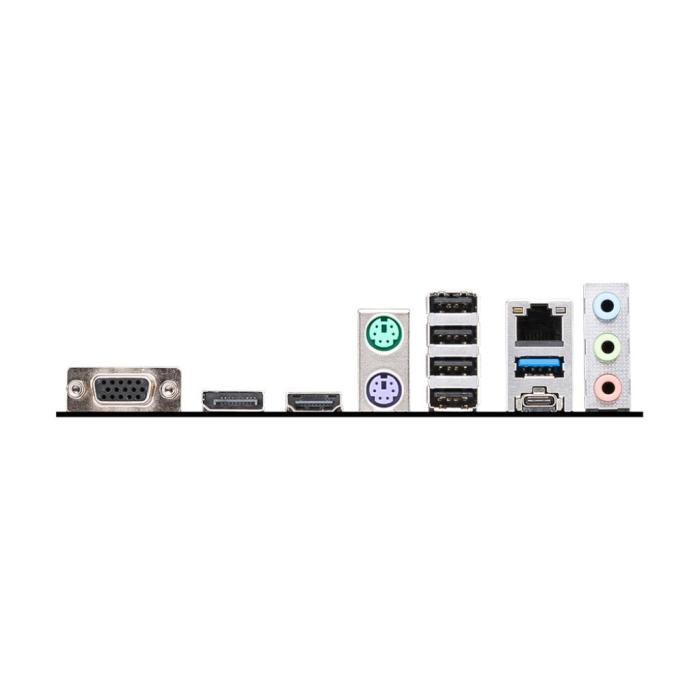

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel B760
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 slots: 2
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System management BIOS (SMBIOS) version: 3.5
Weight & dimensions
- Width: 243.8 mm
- Depth: 243.8 mm
