StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C
More info
Brand: STARTECH.COM
196,00 €Stock available: 0 units.
Unavailable
SKU:
86493
PRC:
304716
EAN:
65030889650
PN:
POEEXT1G60W
Description

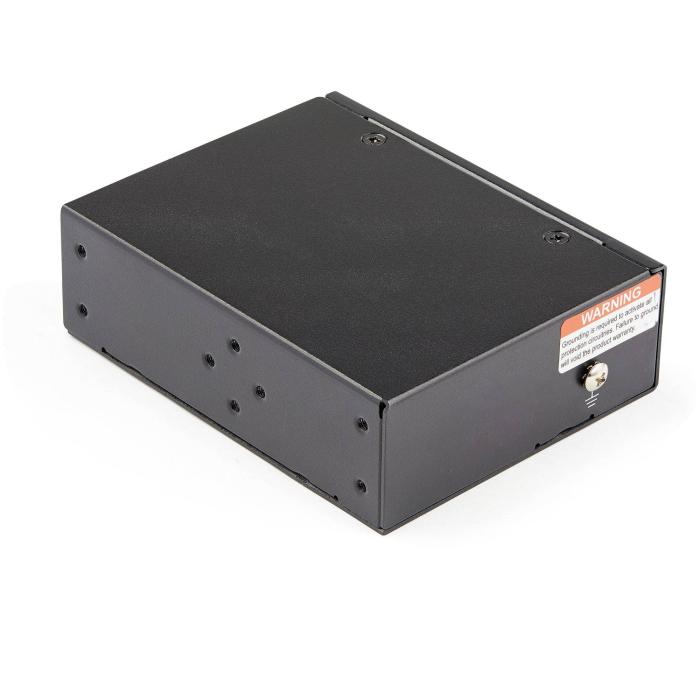

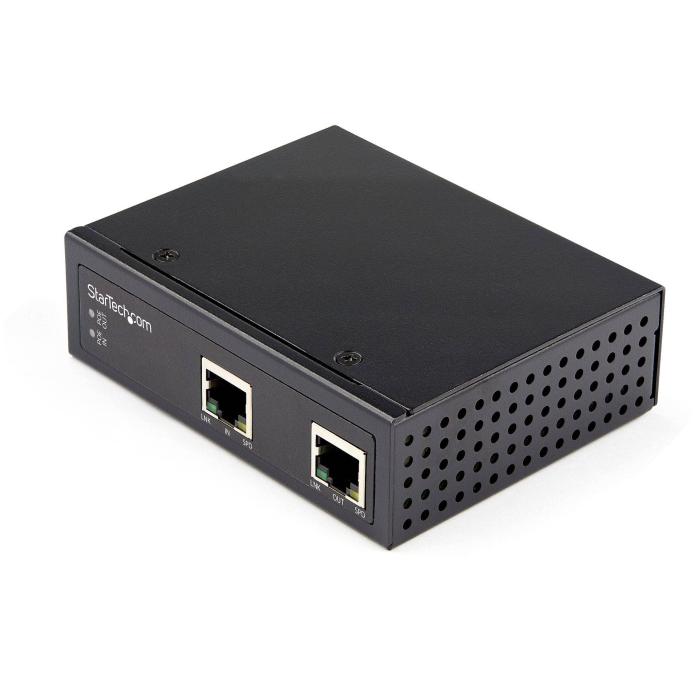

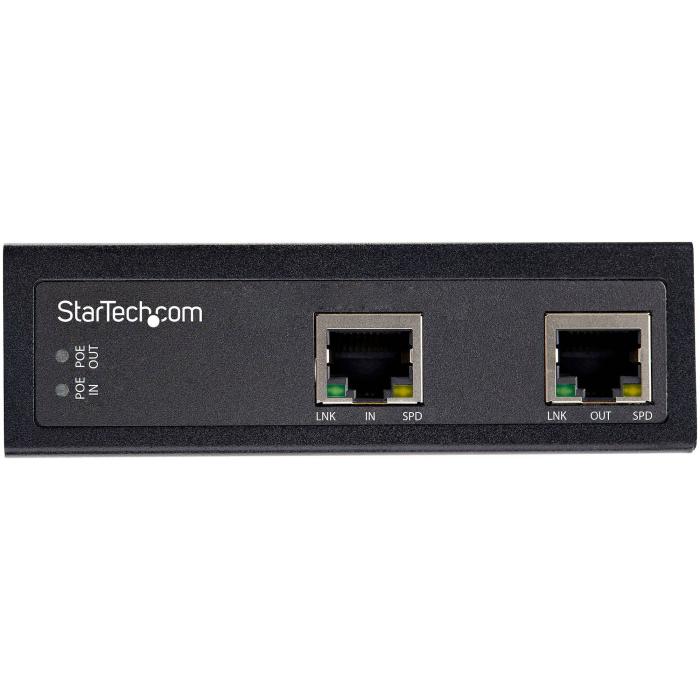

The industrial Gigabit PoE++ extender with reference POEEXT1G60W extends your network up to 100 metres using Cat5e or Cat6 cable, maintaining a speed of 1000 Mbit/s and supporting auto-negotiation and flow control for stable transmission. Equipped with two Power over Ethernet ports and a 60W PoE budget, it supplies power to devices compatible with the 802.3bt, 802.3at and 802.3af standards. Its black aluminium housing integrates LED indicators that facilitate status monitoring, while the Realtek RTL8367 chipset and Microsemi PD69101 ensure reliable operation with an MTBF of 551,848 hours. It complies with CE and FCC certifications, and its energy consumption is limited to 2.7W, making it suitable for demanding network environments.
Specifications
Performance
- Type: Network repeater
- Maximum transfer distance: 100 m
- Data transfer rate: 1000 Mbit/s
- Cable types supported: Cat5e, Cat6
- Chipset: Realtek RTL8367, Microsemi PD69101
- Ethernet LAN data rates: 100, 1000 Mbit/s
- Auto-negotiation: Yes
- Flow control support: Yes
- Mean time between failures (MTBF): 551848 h
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports & interfaces
- Power over Ethernet (PoE) ports quantity: 2
Design
- Product colour: Black
- Housing material: Aluminium
- LED indicators: Yes
- Certification: CE, FCC
Management features
- Supported network protocols (IPv4): CSMA/CD
Power
- Power consumption (typical): 2.7 W
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 81.5 mm
- Depth: 104 mm
- Height: 32 mm
- Weight: 148 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package width: 211 mm
- Package depth: 162 mm
- Package height: 64 mm
- Package weight: 390 g
Certificates
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 355 mm
- Master (outer) case length: 345 mm
- Master (outer) case height: 225 mm
- Products per master (outer) case: 10 pc(s)
