StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged
More info
Brand: STARTECH.COM
235.20 €
194.38 €
without VAT
Stock available: 5 units.
Get it
on the
September 1
/
September 2
SKU:
118801
PRC:
304715
EAN:
65030889568
PN:
POEINJ1G90W
Description
Industrial Gigabit Power over Ethernet injector supporting up to 90W and the 802.3bt PoE++ standard, facilitating the deployment of high-power-demand devices in demanding environments. Its aluminium housing with IP30 rating and CE, FCC, and UL certifications make it suitable for professional installations, while the Microsemi PD69204 chipset and two PoE ports ensure reliable power management. It achieves transfer distances of up to 100 metres with speeds of 10, 100, and 1000 Mbit/s, including support for Jumbo Frames, auto-negotiation, and auto-MDIX. With a mean time between failures of 540,891 hours, it offers a stable full-duplex connection for wired networks requiring robust network repeaters.
Specifications
Performance
- Type: Network repeater
- Maximum transfer distance: 100 m
- Data transfer rate: 1000 Mbit/s
- Chipset: Microsemi PD69204
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Auto MDIX IEEE: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Duplex system: Full
- International Protection (IP) code: IP30
- Mean time between failures (MTBF): 540891 h
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Ports & interfaces

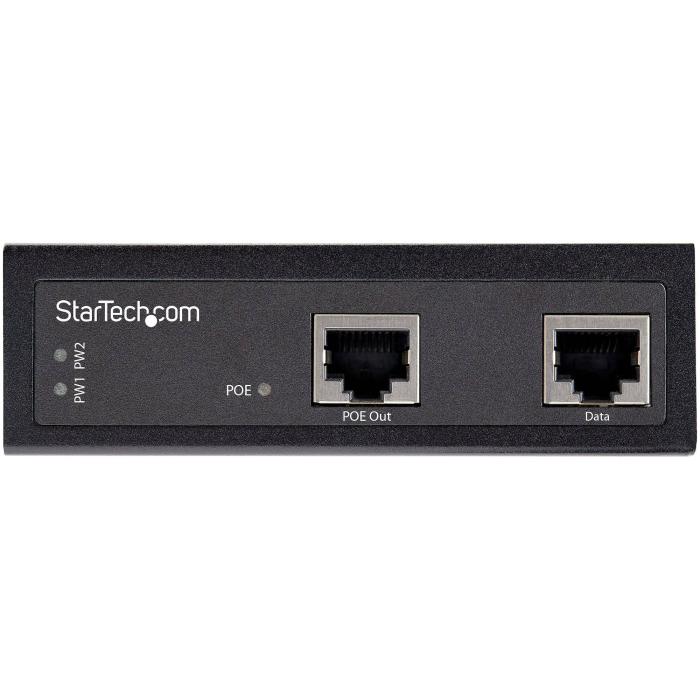

- Power over Ethernet (PoE) ports quantity: 2

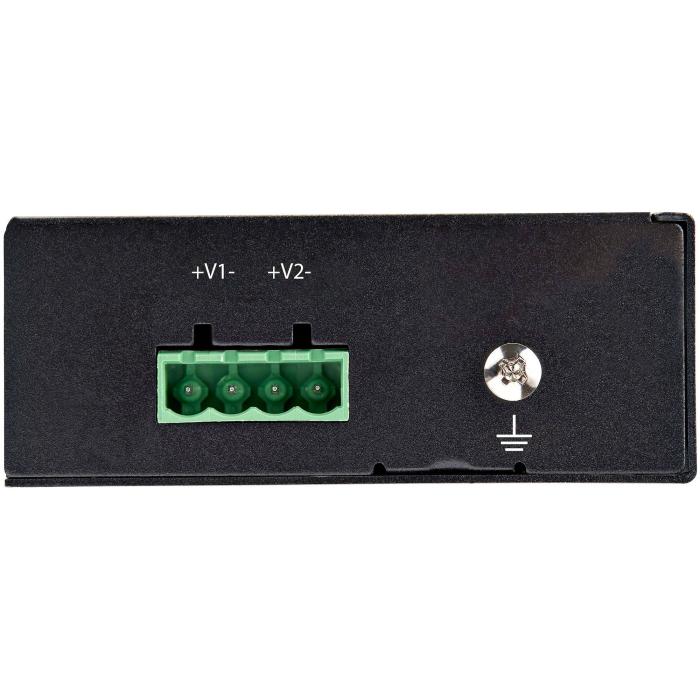

- Terminal block port: Yes
Design
- Product colour: Black
- Housing material: Aluminium
- LED indicators: Yes
- Certification: CE, FCC, UL
Management features
- Supported network protocols (IPv4): CSMA/CD
Power
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 90 W
- Power plug type: Type N
- Power over Ethernet (PoE) voltage range: 48 - 56 V
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 32 mm
- Depth: 82 mm
- Height: 104 mm
- Weight: 174 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package width: 211 mm
- Package depth: 162 mm
- Package height: 64 mm
- Package weight: 416 g
Certificates
- Compliance certificates: CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 355 mm
- Master (outer) case length: 345 mm
- Master (outer) case height: 225 mm
- Products per master (outer) case: 10 pc(s)
