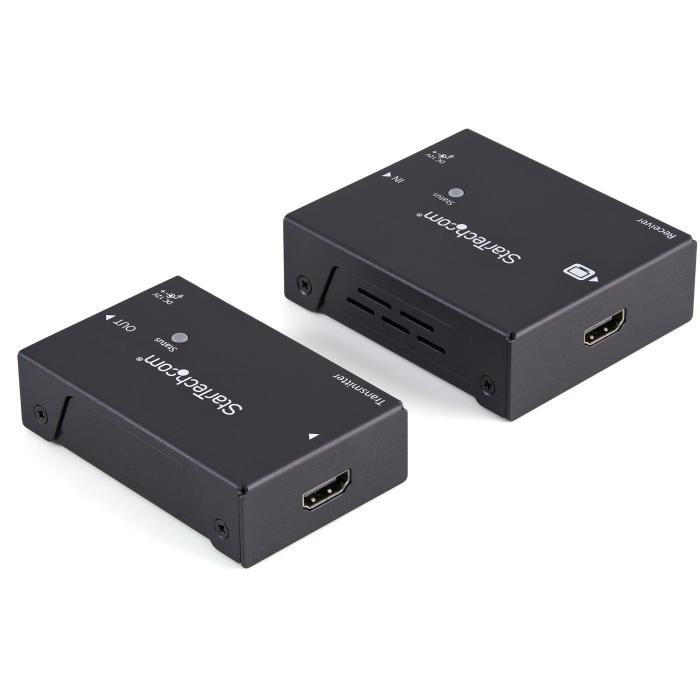

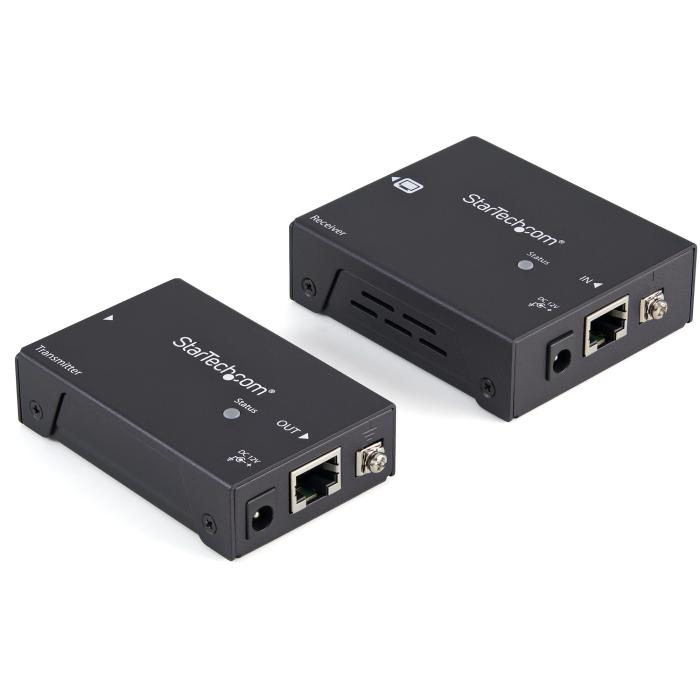

StarTech.com HDMI over CAT5e HDBaseT Extender - 4K - TAA

402.00 €

332.23 € without VAT

Amount

Brand: STARTECH.COM

SKU: 74390 PRC: 66037 EAN: 65030854177 PN: ST121HDBTPW

Description

StarTech.com HDMI over CAT5e HDBaseT Extender - 4K - TAA, 4096 x 2160 pixels, AV transmitter u0026 receiver, 100 m, Black

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
Audio system: Multichannel
Audio output channels: 7.1 channels
LED indicators: Status
Supported video modes: 720p, 1080p, 2160p
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Material: Aluminium
Daisy chain: No
Rubber feet: Yes
Product colour: Black
HDBaseT certified: Yes
Certification: CE, FCC, TAA

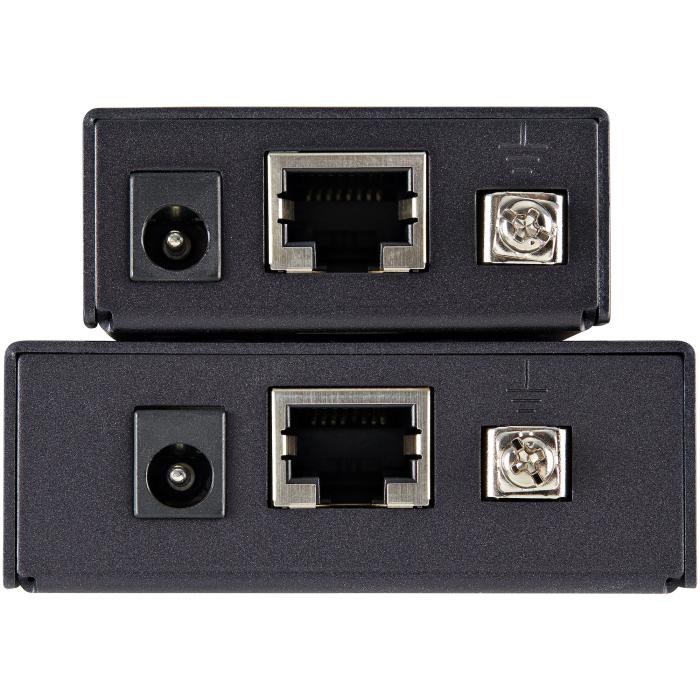

Ports & interfaces

RJ-45 input ports: 1
RJ-45 output ports: 1

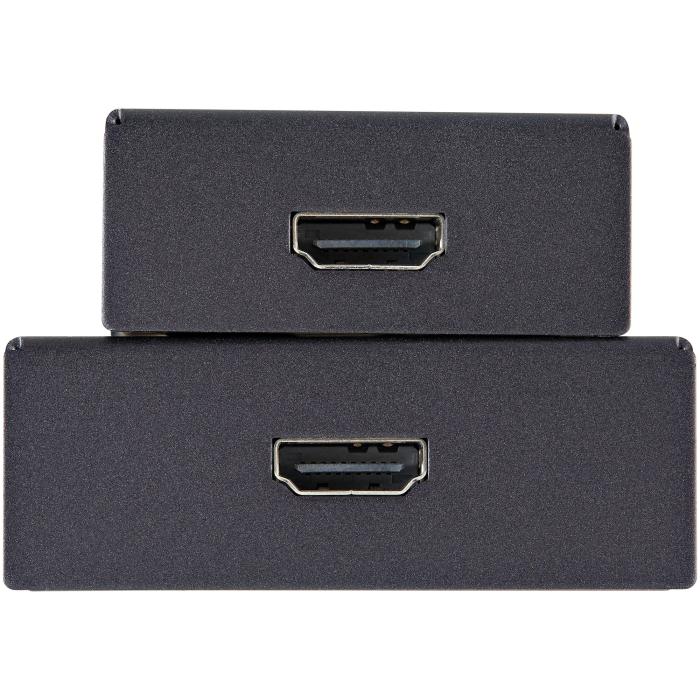

HDMI in: 1
Number of HDMI outputs: 1
DC-in jack: Yes

Power

AC input voltage: 100-240 V
Operating voltage: 12 V
Input current: 0.5 A
Output current: 1.5 A
Power consumption (typical): 18 W
External power adapter: Yes
Power plug type: Type M

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 67 mm
Depth: 80 mm
Height: 25 mm
Weight: 423 g

Packaging data

Package width: 196 mm
Package depth: 295 mm
Package height: 72 mm
Package weight: 1.2 kg

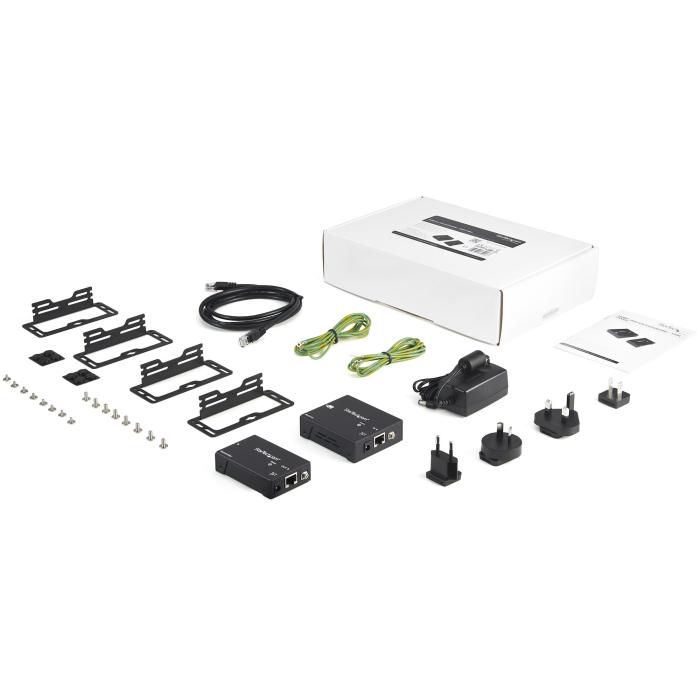

Packaging content

AC adapter included: Yes
Cables included: LAN (RJ-45)
Included power plug types: AU, EU, NA, UK
Manual: Yes
Mounting brackets included: Yes
Grounding wire: Yes

Technical details

Audio support: Yes
Compliance certificates: RoHS

Logistics data

Master (outer) case width: 405 mm
Master (outer) case length: 450 mm
Master (outer) case height: 325 mm
Products per master (outer) case: 12 pc(s)
