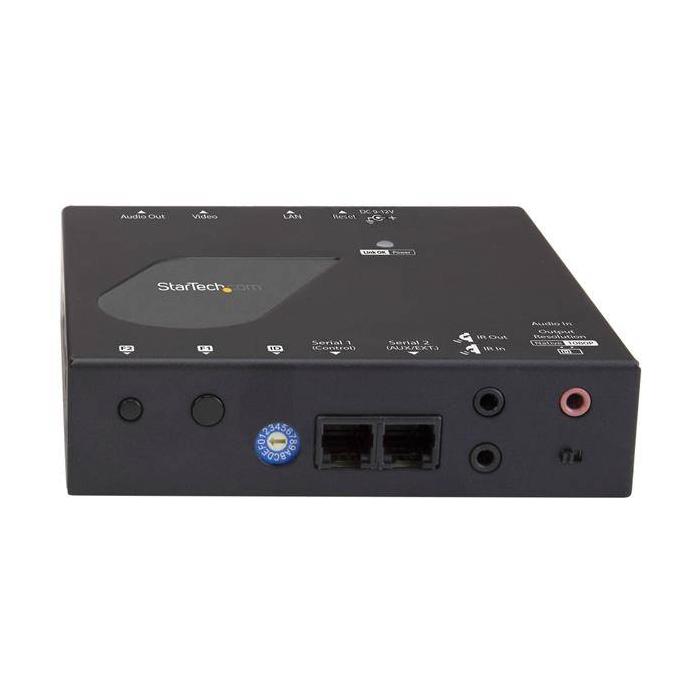

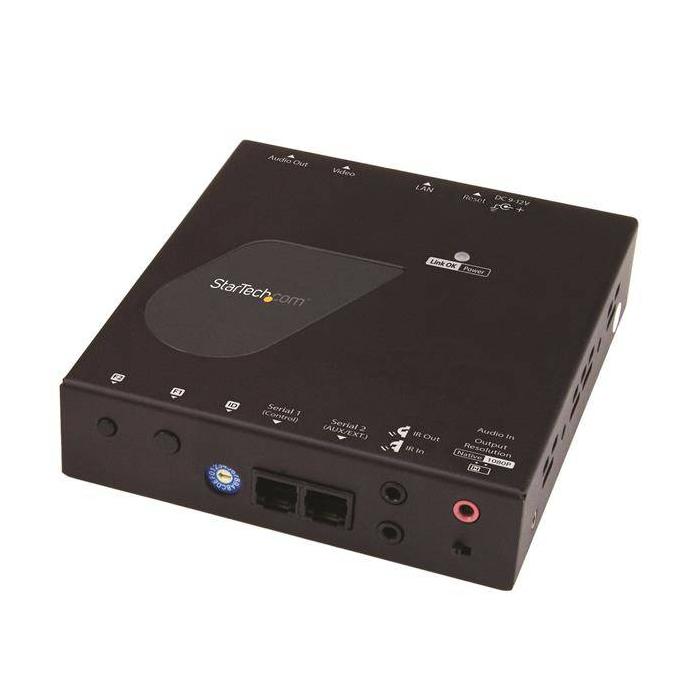

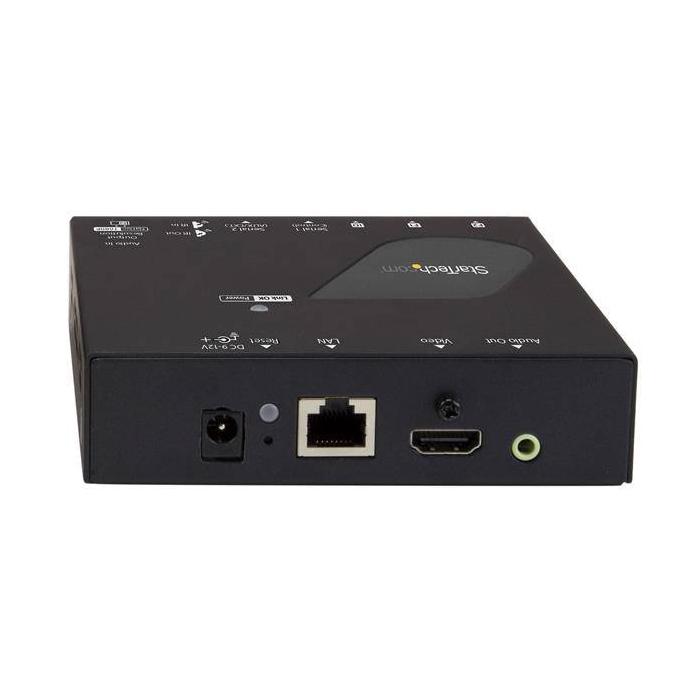

StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K, IP Extender with Video Control App, Support for AVoIP Video Wall - TAA

Not avaliable

More info

Brand: STARTECH.COM
SKU: 113056 PRC: 159261 EAN: 65030868969 PN: ST12MHDLAN4R

Description

StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K, IP Extender with Video Control App, Support for AVoIP Video Wall - TAA, 3840 x 2160 pixels, AV receiver, 100 m, Wired, Black

Specifications

Features

  • Type: AV receiver
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat5e
  • Maximum transfer distance: 100 m
  • Maximum refresh rate: 30 Hz
  • Audio system: stereo
  • Supported video modes: 720p, 1080p, 2160p
  • Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
  • Material: Aluminium
  • Daisy chain: Yes
  • Product colour: Black

Ports & interfaces

  • Connectivity technology: Wired
  • RJ-45 output ports: 1
  • Number of HDMI outputs: 1
  • Audio input: 3.5mm
  • Audio output: 3.5mm
  • RJ-11 ports quantity: 2
  • Remote (IR) input: 1
  • Remote (IR) output: 1
  • DC-in jack: Yes

Power

  • AC input voltage: 100 - 240 V
  • Operating voltage: 12 V
  • Input current: 0.6 A
  • Output current: 1.5 A
  • Power consumption (typical): 18 W
  • Power plug type: Type M

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

  • Width: 117 mm
  • Depth: 131 mm
  • Height: 30 mm
  • Weight: 594 g

Packaging data

  • Package width: 210 mm
  • Package depth: 295 mm
  • Package height: 65 mm
  • Package weight: 1.2 kg

Packaging content

  • AC adapter included: Yes
  • Cables included: LAN (RJ-45), Phone (RJ-11)
  • Quick start guide: Yes
  • Mounting brackets included: Yes

Technical details

  • Compliance certificates: CE, RoHS
  • Sustainability compliance: Yes

Logistics data

  • Master (outer) case width: 320 mm
  • Master (outer) case length: 405 mm
  • Master (outer) case height: 265 mm
  • Products per master (outer) case: 6 pc(s)
