Description

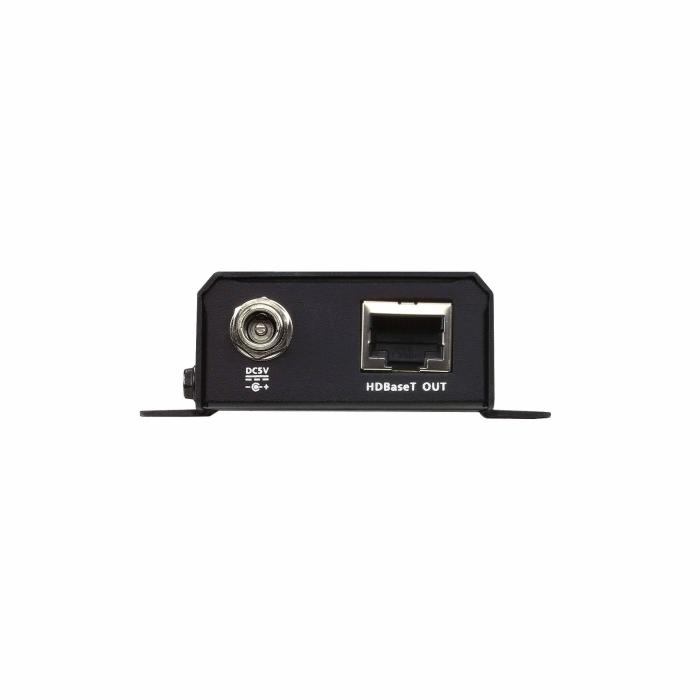

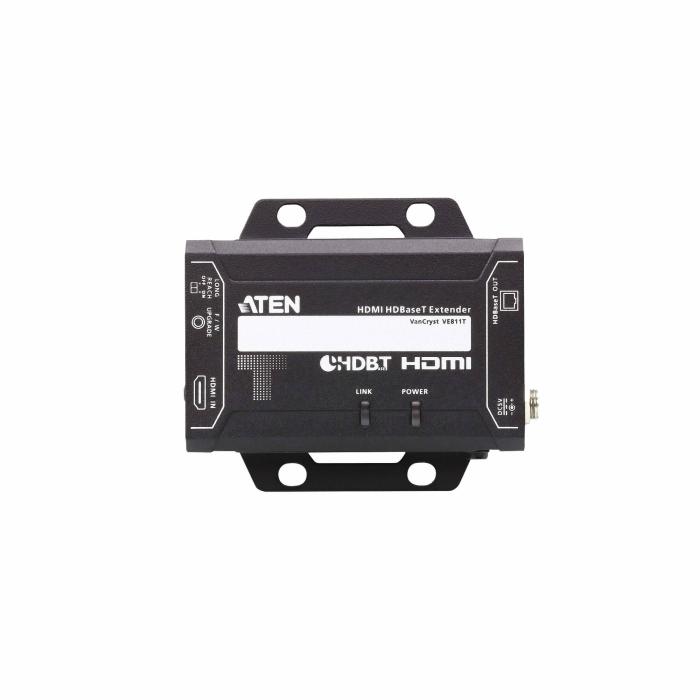

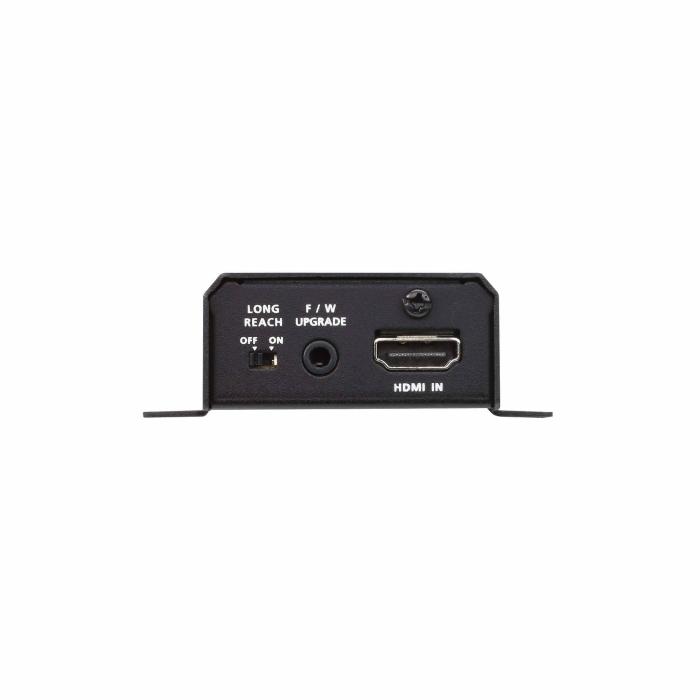

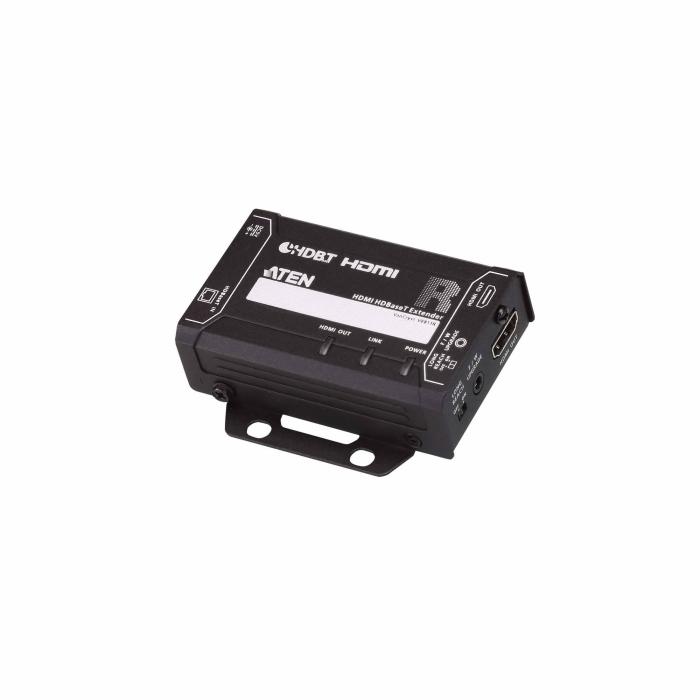

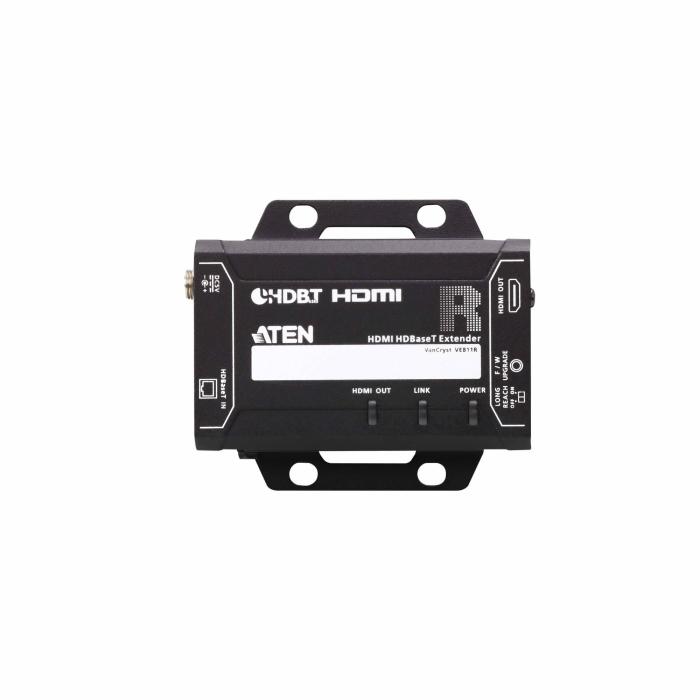

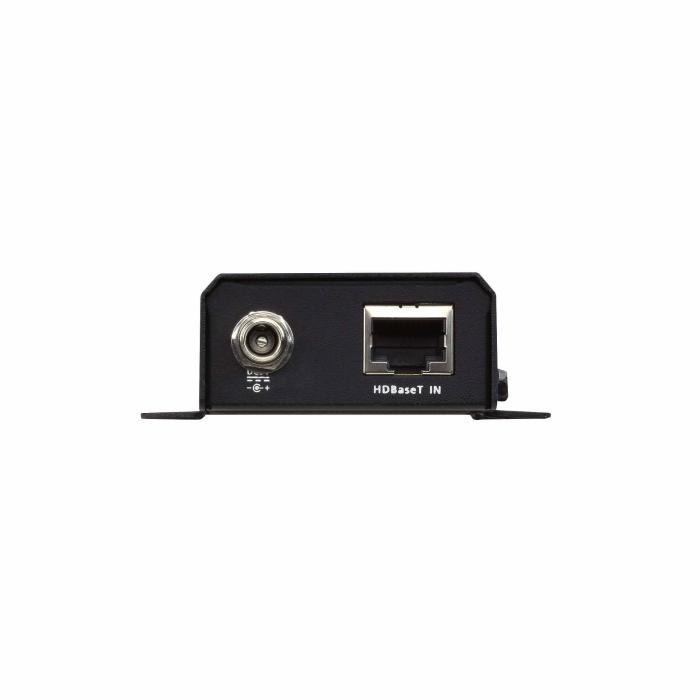

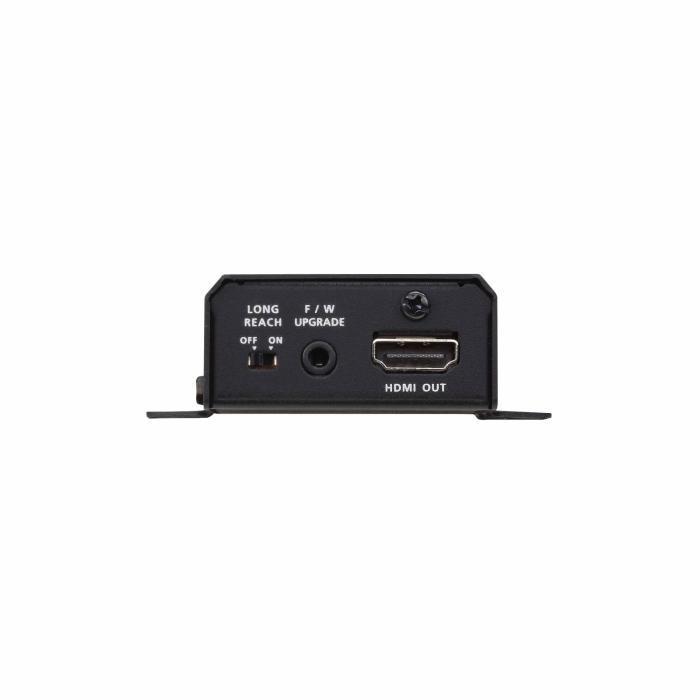

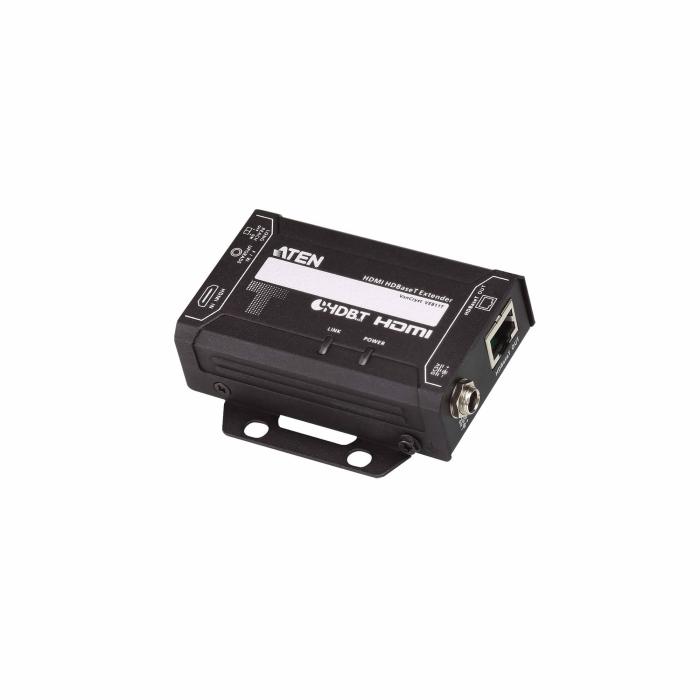

The ATEN HDMI HDBaseT extender, in black, functions as a transmitter and receiver of AV signals to carry image and sound over long distances. It reaches a maximum resolution of 4096 x 2160 pixels and covers a transfer distance of up to 150 m, with a bandwidth of 340 MHz and an impedance of 100 Ω. The connection is via cable and supports Cat5e, Cat6 and Cat6a cables, so you can reuse the network cabling you already have installed. It has one HDMI input and one output, one RJ-45 input and one output, as well as audio input and output, and includes a DC input plug. The receiver operates at an operating voltage of 5 V and its casing is metal, with a weight of 630 g. It is HDCP compliant and is supplied in a pack of 2 units.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- Audio input: 1
- Audio output: 1
- DC-in jack: Yes
Power
- Operating voltage (transmitter): 5 V
- Operating voltage (receiver): 5 V
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 630 g
- Receiver dimensions (WxDxH): 86.4 x 73 x 24.7 mm
- Receiver weight: 170 g
- Transmitter dimensions (WxDxH): 86.4 x 73 x 24.7 mm
- Transmitter weight: 160 g
Packaging data
- Quantity per pack: 2 pc(s)
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 705 g
Packaging content
- Quick start guide: Yes
Logistics data
- Master (outer) case width: 250 mm
- Master (outer) case length: 325 mm
- Master (outer) case height: 175 mm
- Master (outer) case gross weight: 4.02 kg
- Master (outer) case net weight: 3.15 kg
- Products per master (outer) case: 5 pc(s)
