ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m

ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m

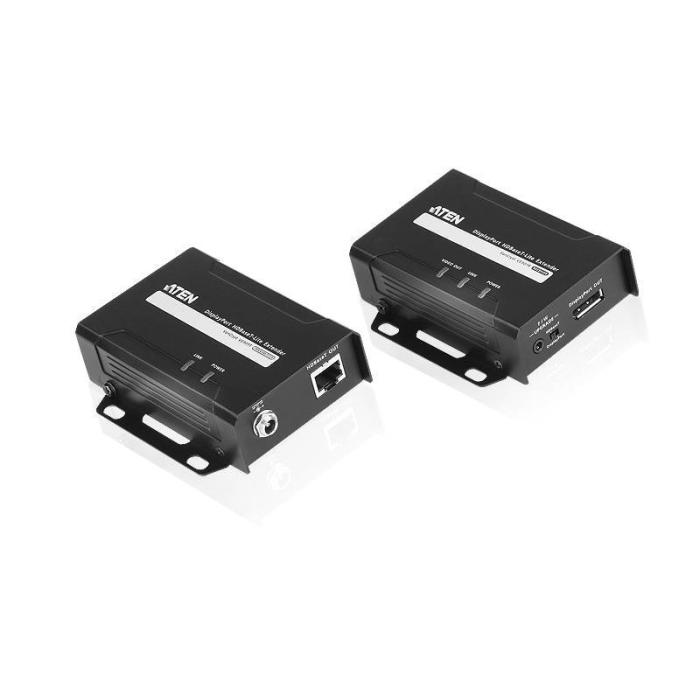

Name: ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m
Brand: ATEN
Availability: OutOfStock

Not avaliable

More info

Amount

Brand: ATEN

SKU: 82030 PRC: 247270 EAN: 4719264645204 PN: VE901

Description

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat5e, Cat6, Cat6a
Maximum transfer distance: 70 m
LED indicators: Yes
Supported video modes: 1080p
Supported graphics resolutions: 3840 x 2160, 4096 x 2160
Bandwidth: 297 MHz
HDCP: Yes
Material: Metal
Rack mounting: Yes
Plug and Play: Yes
Impedance: 100 Ω
HDCP version: 1.4
Product colour: Black
HDBaseT certified: Yes

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDBaseT port: Yes
DisplayPorts in: 1
DisplayPorts out: 1
DC-in jack: Yes

Power

Operating voltage (transmitter): 5 V
Operating voltage (receiver): 5 V
Power consumption (TX): 2.84 W
Power consumption (RX): 5.72 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Weight: 750 g
Receiver dimensions (WxDxH): 94.2 x 66 x 29 mm
Receiver weight: 270 g
Transmitter dimensions (WxDxH): 94.2 x 66 x 29 mm
Transmitter weight: 240 g

Packaging data

Package width: 59 mm
Package depth: 239 mm
Package height: 160 mm
Package weight: 855 g

Packaging content

AC adapter included: Yes
Manual: Yes

Logistics data

Master (outer) case width: 250 mm
Master (outer) case length: 325 mm
Master (outer) case height: 175 mm
Master (outer) case gross weight: 4.85 kg
Master (outer) case net weight: 3.75 kg
Products per master (outer) case: 5 pc(s)
