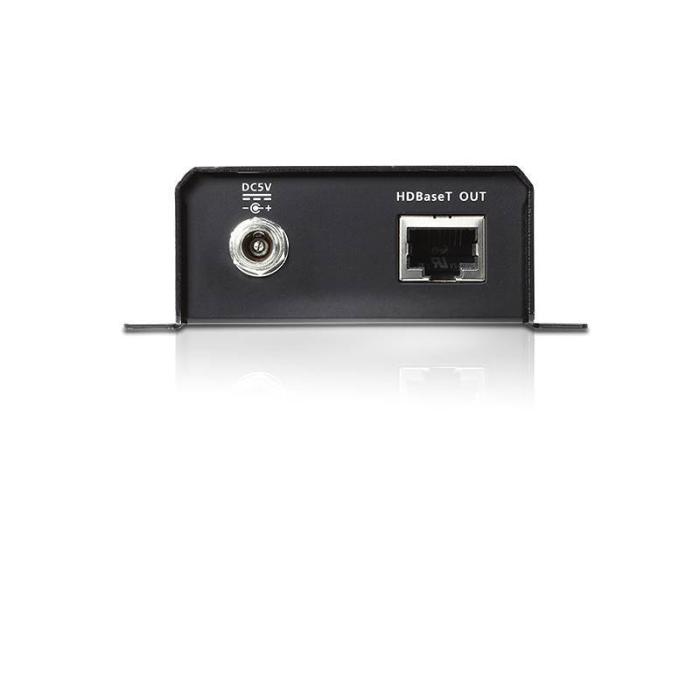

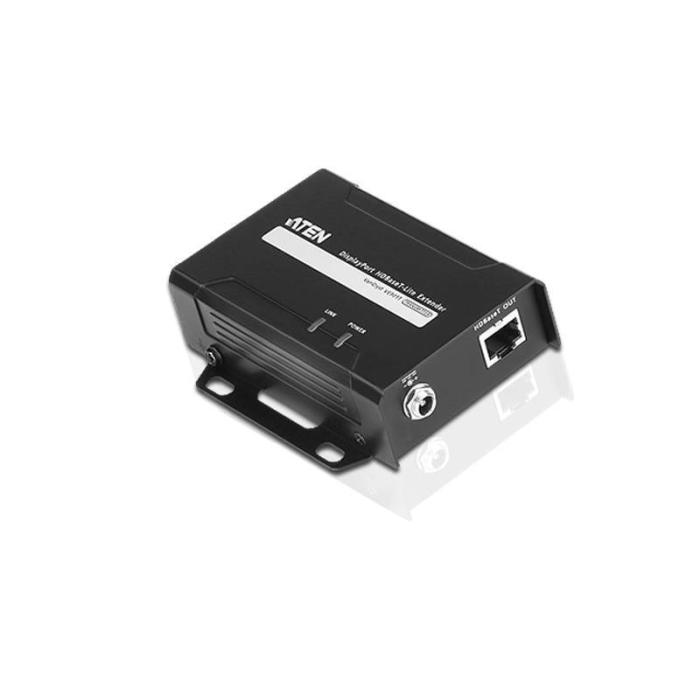

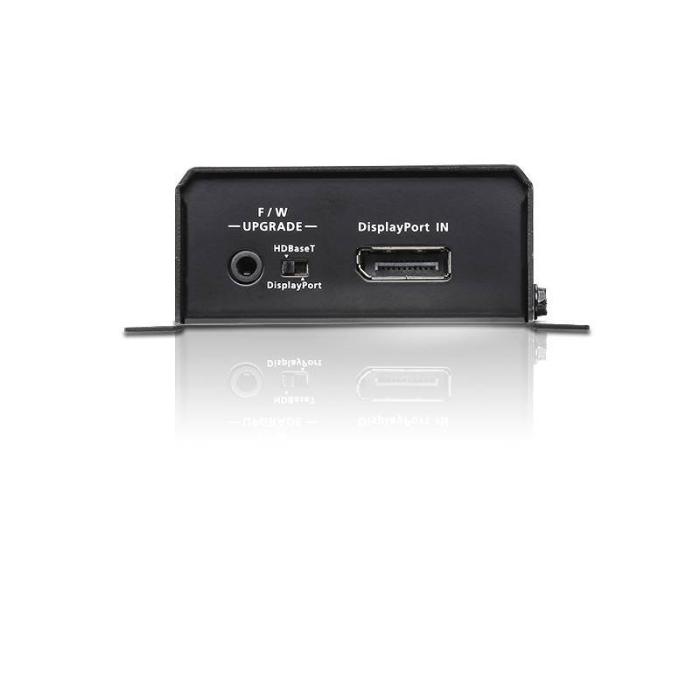

ATEN DisplayPort HDBaseT-Lite Transmitter 4K/40m;1080p/70m

164.00 €
135.54 € without VAT

More info

Brand: ATEN
SKU: 82028 PRC: 247268 EAN: 4719264645211 PN: VE901T

Description

ATEN DisplayPort HDBaseT-Lite Transmitter 4K/40m;1080p/70m, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, Black, HDCP

Specifications

Features

  • Type: AV transmitter
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 70 m
  • Supported video modes: 1080p
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 297 MHz
  • HDCP: Yes
  • Material: Metal
  • Rack mounting: Yes
  • Plug and Play: Yes
  • Impedance: 100 Ω
  • HDCP version: 1.4
  • Product colour: Black
  • HDBaseT certified: Yes

Ports & interfaces

  • Connectivity technology: Wired
  • RJ-45 output ports: 1
  • HDBaseT port: Yes
  • DisplayPorts in: 1
  • DC-in jack: Yes

Power

  • Operating voltage (transmitter): 5 V
  • Power consumption (TX): 2.84 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

  • Width: 94.2 mm
  • Depth: 66 mm
  • Height: 29 mm
  • Weight: 380 g

Packaging data

  • Quantity per pack: 1 pc(s)
  • Package width: 59 mm
  • Package depth: 119 mm
  • Package height: 160 mm
  • Package weight: 440 g

Packaging content

  • AC adapter included: Yes
  • Manual: Yes

Logistics data

  • Master (outer) case width: 250 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 175 mm
  • Master (outer) case gross weight: 5 kg
  • Master (outer) case net weight: 3.8 kg
  • Products per master (outer) case: 10 pc(s)
