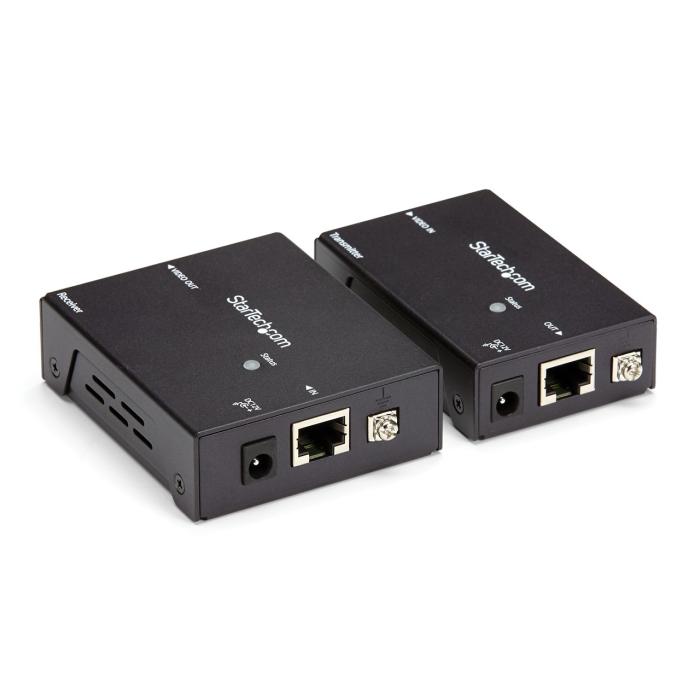

StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA

$230.43

$230.43 without VAT

StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA. More info

Amount

Brand: STARTECH.COM

SKU: 74504 PRC: 68694 EAN: 65030851107 PN: ST121HDBTE

Description

Specifications

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 70 m
Maximum refresh rate: 60 Hz
Audio system: Multichannel
Audio output channels: 7.1 channels
LED indicators: Status
Supported video modes: 720p, 1080p
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Cable length: 0.1 m
Material: Aluminium
Daisy chain: No
Mean time between failures (MTBF): 52000 h
Product colour: Black
Certification: CE, FCC, HDBT, TAA

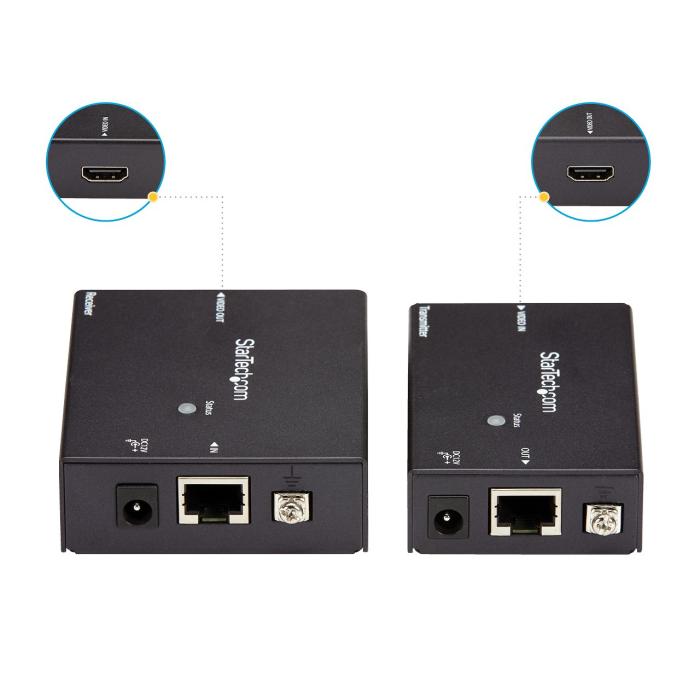

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
DC-in jack: Yes

Power

AC input voltage: 110 - 240 V
Operating voltage: 12 V
Input current: 0.5 A
Output current: 1.5 A
Power consumption (typical): 3 W
Power plug type: Type M

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 67 mm
Depth: 80 mm
Height: 25 mm
Weight: 428 g

Packaging data

Package width: 235 mm
Package depth: 156 mm
Package height: 65 mm
Package weight: 1.1 kg

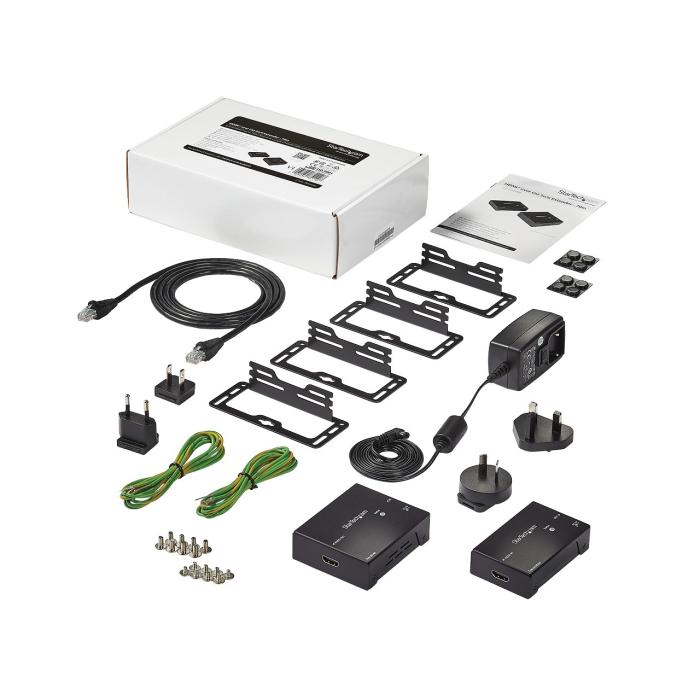

Packaging content

AC adapter included: Yes
Cables included: LAN (RJ-45)
Included power plug types: AU, EU, NA, UK
Manual: Yes
Mounting brackets included: Yes
Grounding wire: Yes

Technical details

Audio support: Yes
Compliance certificates: RoHS

Logistics data

Master (outer) case width: 325 mm
Master (outer) case length: 411 mm
Master (outer) case height: 257 mm
Products per master (outer) case: 12 pc(s)
