Description

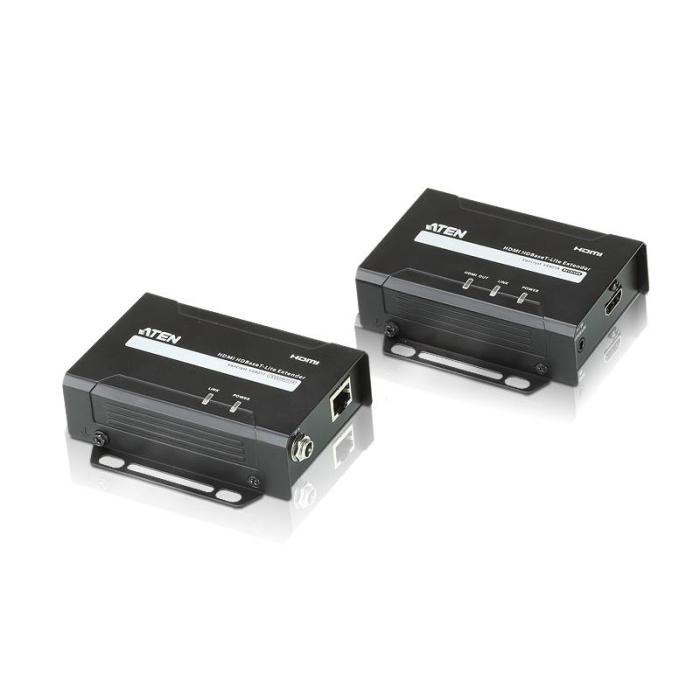

Extends HDMI signals with the ATEN HDBaseT-Lite HDMI Extender, a black AV signal transmitter and receiver that reaches a maximum transfer distance of 70 m. It supports a maximum resolution of 3840 x 2160 pixels and 1080p video modes, with a bandwidth of 340 MHz and HDCP compliance. Connection is wired via one HDMI input port and one HDMI output port, plus one RJ-45 input and one RJ-45 output that allow linking over Cat5, Cat6 and Cat6a cables. It features LED indicators and a DC power input jack for power supply, with a metal casing and a weight of 780 g. It is designed to operate in a relative humidity range of 0 to 80% and a storage temperature range of -20 to 60 °C. The solution is suitable for installations that require carrying the video signal over long distances within the home or a professional environment.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat5, Cat6, Cat6a
- Maximum transfer distance: 70 m
- LED indicators: Yes
- Supported video modes: 1080p
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 780 g
- Receiver dimensions (WxDxH): 34.3 x 98.6 x 30 mm
- Receiver weight: 250 g
- Transmitter dimensions (WxDxH): 34.3 x 98.6 x 30 mm
- Transmitter weight: 240 g
Packaging data
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 841 g
Packaging content
- AC adapter included: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Master (outer) case width: 250 mm
- Master (outer) case length: 325 mm
- Master (outer) case height: 175 mm
- Master (outer) case gross weight: 4.6 kg
- Master (outer) case net weight: 3.9 kg
- Products per master (outer) case: 5 pc(s)
