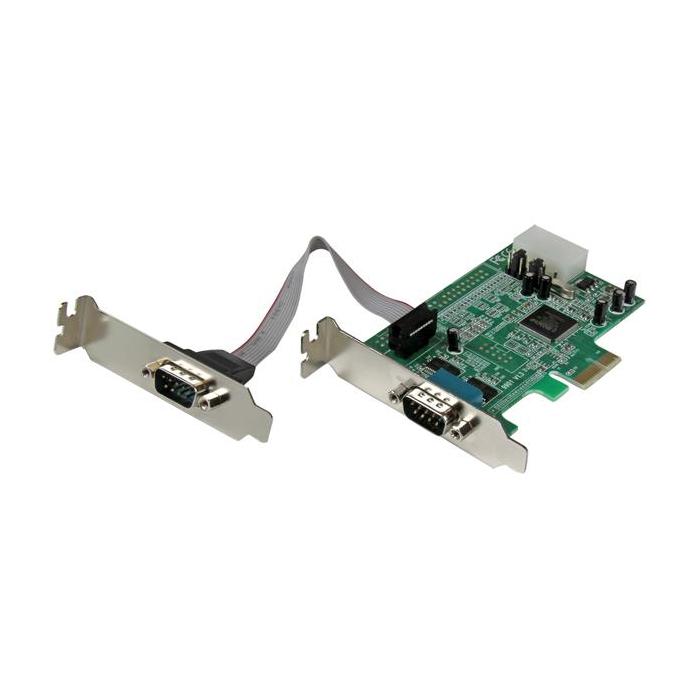

StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP

$43.80
$43.80 without VAT

More info

Brand: STARTECH.COM
SKU: 75014 PRC: 75078 EAN: 5052217282279 PN: PEX2S553LP

Description

StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows u0026 Linux, TAA - Replaced by PEX2S953LP, PCIe, Serial, PCIe 1.1, RS-232, Green, ASIX - MCS9922CV-AA

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Serial
  • Expansion card standard: PCIe 1.1
  • Serial ports quantity: 2
  • Serial interface type: RS-232
  • Peripheral (Molex) power connectors (4-pin): 1

Design

  • Internal: Yes
  • Product colour: Green

Features

  • Chipset: ASIX - MCS9922CV-AA
  • Baud rate: 460.8 Kbit/s
  • FIFO (First In, First Out): 128 B
  • Flow Control type: DTR/DSR, RTS/CTS, XON/XOFF

Operational conditions

  • Operating temperature (T-T): -10 - 80 °C
  • Storage temperature (T-T): -20 - 100 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20
  • Other operating systems supported: DOS, Windows XP Embedded

Technical details

  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 80 mm
  • Depth: 105 mm
  • Height: 20 mm
  • Weight: 63.5 g

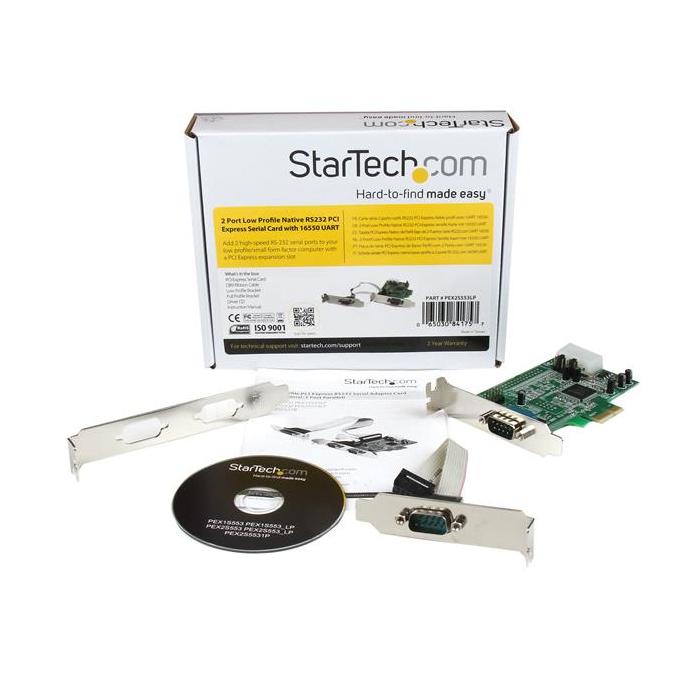

Packaging data

  • Cables included: Serial
  • Mounting brackets included: Yes
  • Drivers included: Yes
  • Manual: Yes
  • Package width: 143 mm
  • Package depth: 173 mm
  • Package height: 32 mm
  • Package weight: 180 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 50 pc(s)
  • Master (outer) case width: 363 mm
  • Master (outer) case length: 684 mm
  • Master (outer) case height: 320 mm
