StarTech.com 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific IC, USB to Serial Adapter for PLC/Printer/Scanner/Switch, USB to COM Port Adapter, Windows/Mac
More info
Brand: STARTECH.COM
25.48 €
21.06 €
without VAT
incl. 21 % VAT
Stock available: 19 units.
Get it
on the
October 16
/
October 19
SKU:
91139
PRC:
352094
EAN:
65030894586
PN:
1P3FP-USB-SERIAL
Description

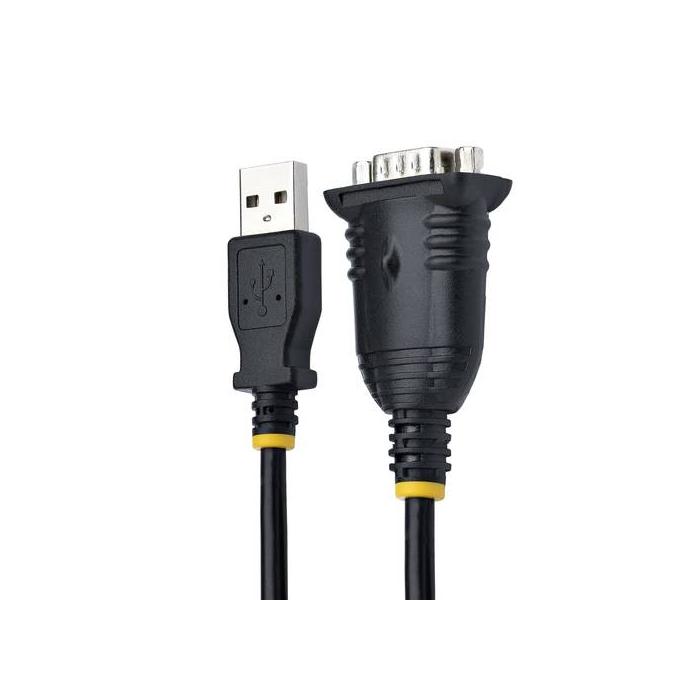

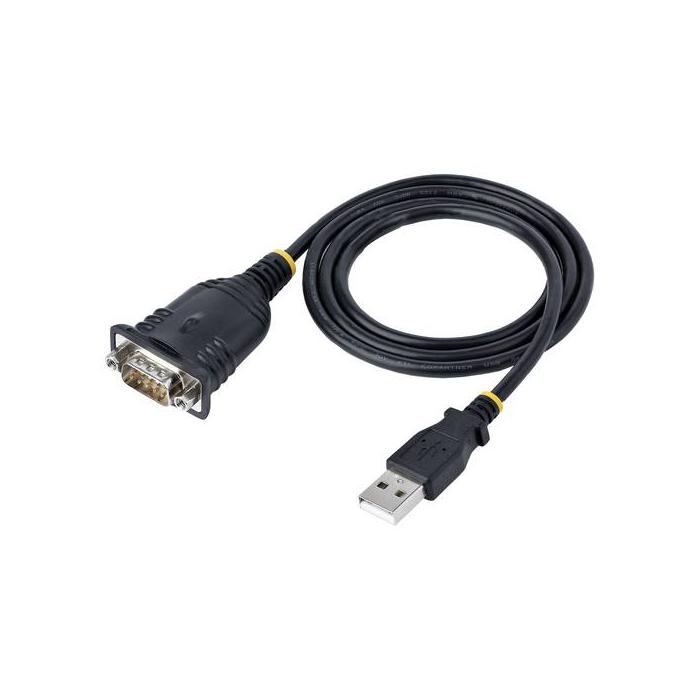

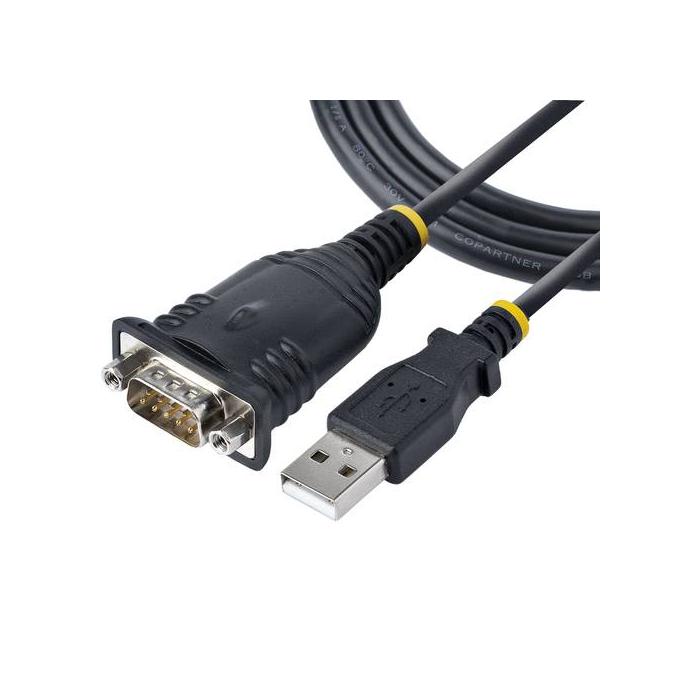

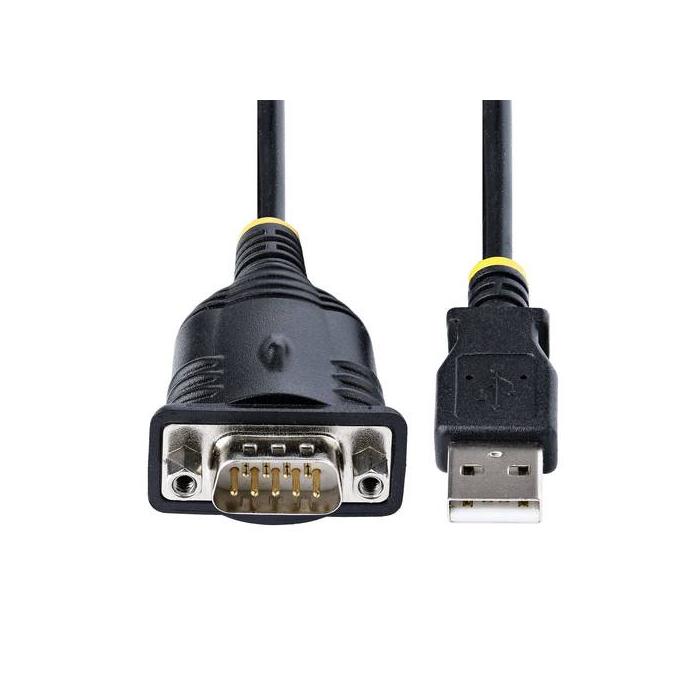

Connect serial port devices to a computer with this StarTech.com USB to serial adapter, featuring a male DB-9 connector and a male USB Type-A connector, both with a straight form factor. The 0.91 m cable provides enough reach to link PLCs, printers or scanners with a COM port. Its Prolific PL2303RA chipset handles the conversion with a transfer rate of up to 921.6 Kbit/s and supports 5, 6, 7 or 8 data bit configurations, 1, 1.5 or 2 stop bits and DTR/DSR, RTS/CTS and XON/XOFF flow control. The USB 2.0 version ensures compatibility with Windows and Mac computers. The adapter, in black, measures 45 x 16 x 34 mm, width x height x depth, and weighs 39.2 g, making it lightweight and easy to carry. It supports a storage temperature range of -20 to 100 °C and a relative humidity of between 20 and 80 %.
Specifications
Ports & interfaces
- Connector 1: DB-9
- Connector 2: USB Type-A
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- USB version: 2.0
- Cable length: 0.91 m
Performance
- FIFO (First In, First Out): 512 B
- Compatible operating systems: Windows 7, 8.1, 10, 11 Windows Server 2016, 2019 macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura Linux 4.15.x LTS Versio
- Product colour: Black
- Chipset: Prolific - PL2303RA
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Flow Control type: DTR/DSR, No, RTS/CTS, XON/XOFF
- Baud rate: 921.6 Kbit/s
- Parity bit: Even, Mark, No, Odd, Space
Operational conditions
- Operating temperature (T-T): 0 - 80 °C
- Storage temperature (T-T): -20 - 100 °C
- Relative humidity: 20 - 80%
Certificates
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 45 mm
- Depth: 34 mm
- Height: 16 mm
- Weight: 39.2 g
Packaging content
- Manual: Yes
Packaging data
- Package width: 220 mm
- Package depth: 142 mm
- Package height: 200 mm
- Package weight: 102.2 g
Logistics data
- Products per master (outer) case: 100 pc(s)
- Master (outer) case width: 570 mm
- Master (outer) case length: 355 mm
- Master (outer) case height: 290 mm
