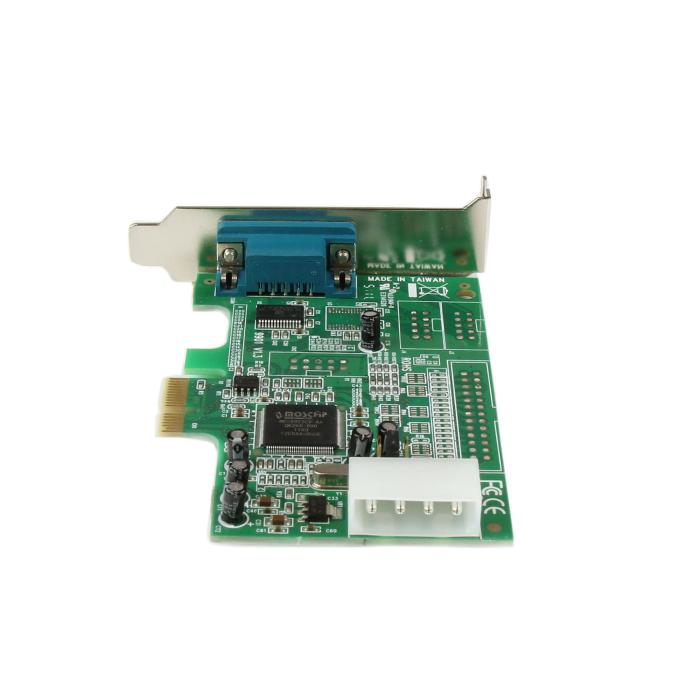

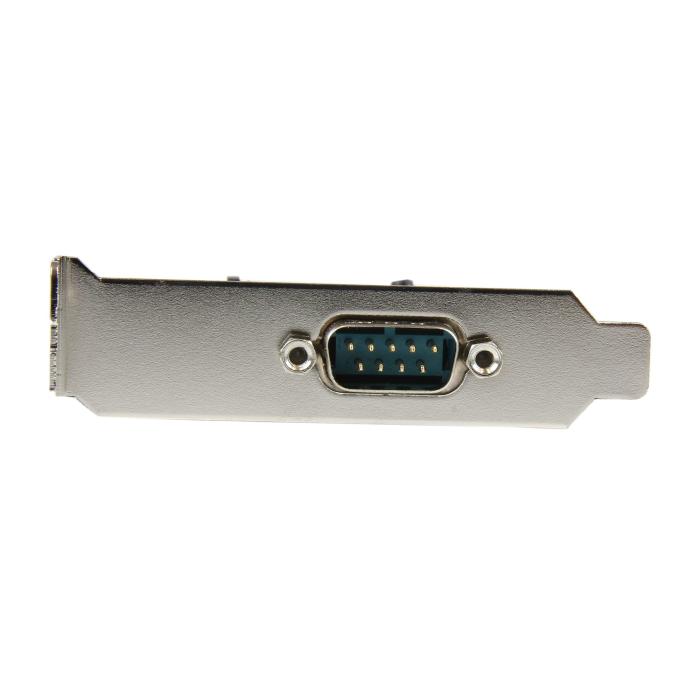

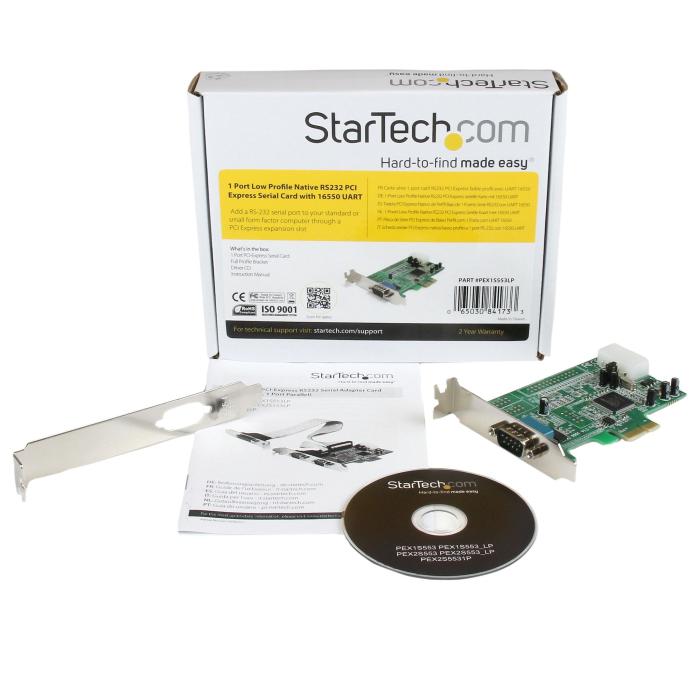

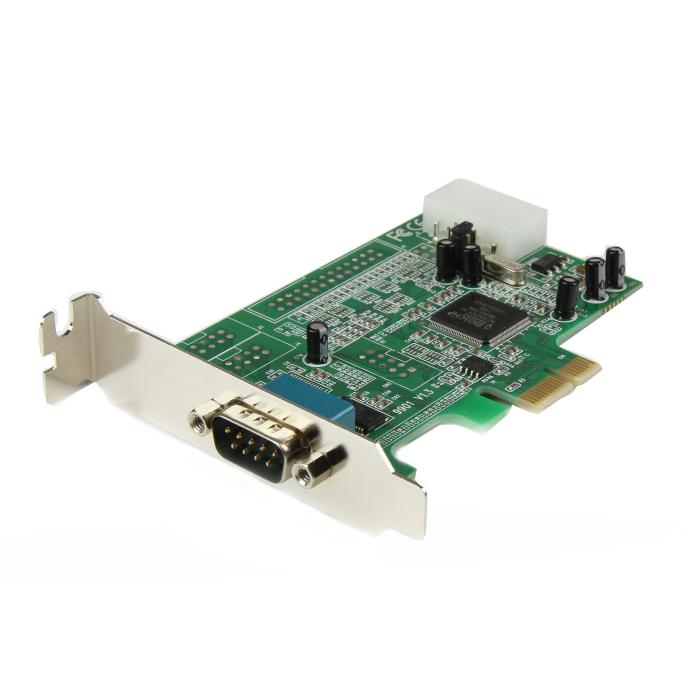

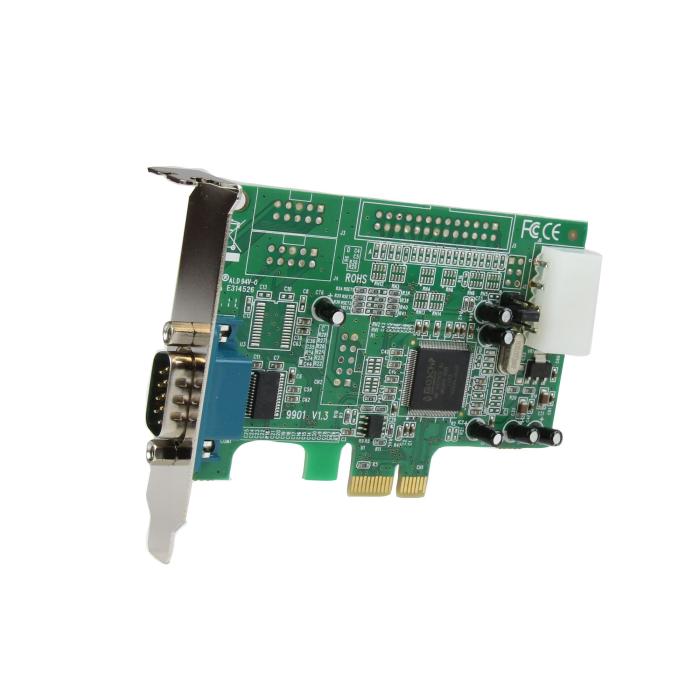

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16550 UART - Low Profile Expansion Card - Windows & Linux

$44.75
$44.75 without VAT

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16550 UART - Low Profile Expansion Card - Windows & Linux.   More info

Brand: STARTECH.COM
SKU: 75021 PRC: 75096 EAN: 650308417330 PN: PEX1S553LP

Description

Specifications

Ports & interfaces

  • Host interface: PCIe
  • Output interface: Serial
  • Expansion card standard: PCI 1.1
  • Serial ports quantity: 1
  • Serial interface type: RS-232
  • Peripheral (Molex) power connectors (4-pin): 1

Design

  • Internal: Yes
  • Product colour: Green

Features

  • Chipset: ASIX - MCS9922CV-AA
  • Baud rate: 460.8 Kbit/s
  • FIFO (First In, First Out): 128 B

Operational conditions

  • Operating temperature (T-T): -10 - 80 °C
  • Storage temperature (T-T): -20 - 100 °C
  • Operating relative humidity (H-H): 5 - 85%

System requirements

  • Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
  • Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20
  • Other operating systems supported: DOS, Windows XP Embedded

Technical details

  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 80 mm
  • Depth: 105 mm
  • Height: 20 mm
  • Weight: 44 g

Packaging data

  • Drivers included: Yes
  • Manual: Yes
  • Package width: 143 mm
  • Package depth: 174 mm
  • Package height: 32 mm
  • Package weight: 130 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 75 pc(s)
  • Master (outer) case width: 365 mm
  • Master (outer) case length: 692 mm
  • Master (outer) case height: 315 mm

Other features

  • Compatible operating systems: Linux, Mac OS 10.4.x
