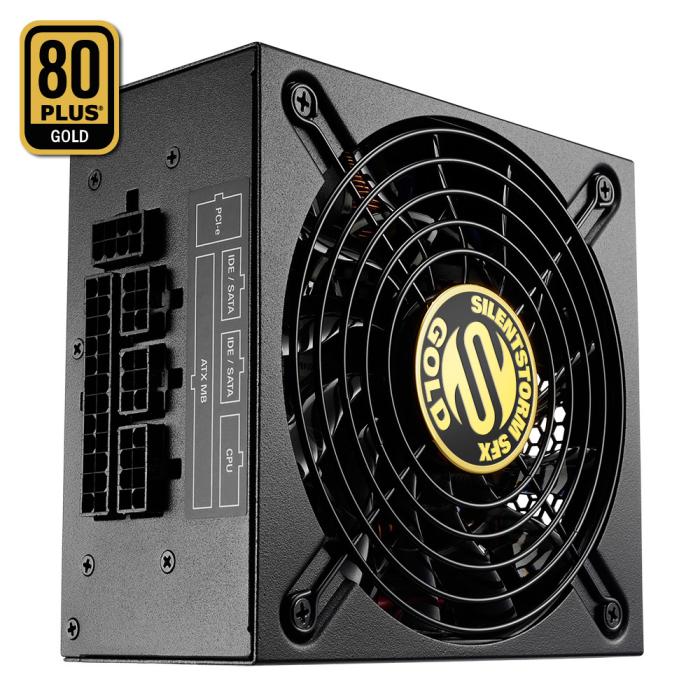

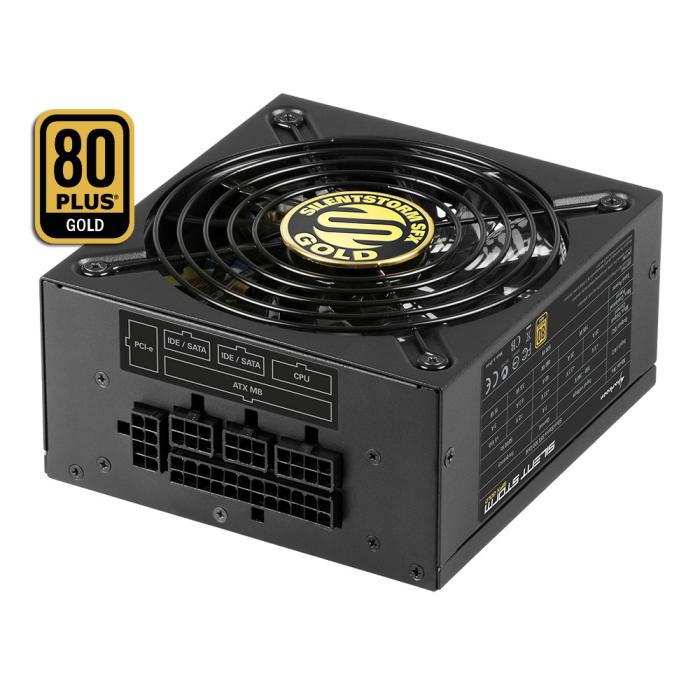

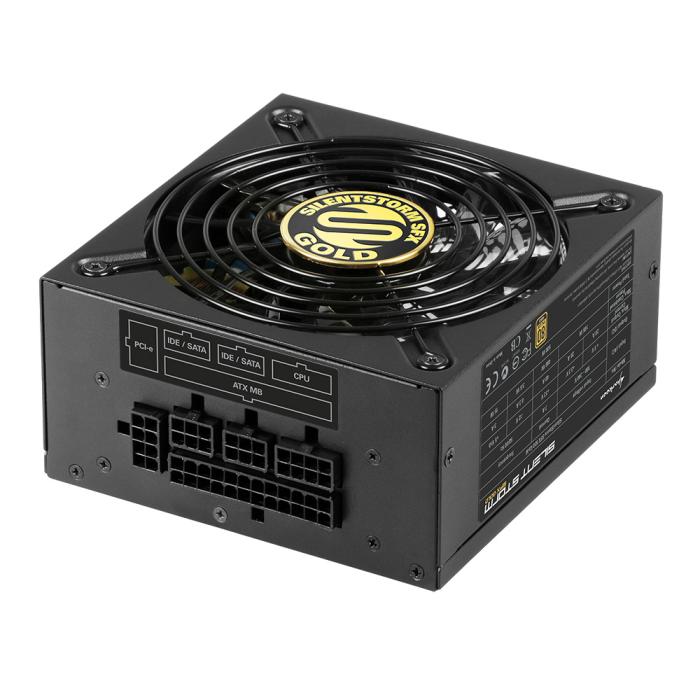

Sharkoon SilentStorm SFX Gold power supply unit 500 W 20+4 pin ATX Black

Not avaliable

Amount

Brand: SHARKOON

SKU: 76240 PRC: 102154 EAN: 4044951016419 PN: 4044951016419

Description

Specifications

Power

Total power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 7 A
Maximum input current (@110V): +12V,+3.3V,+5V,+5Vsb,-12V
Combined power (+3.3V): 105 W
Combined power (+12V): 480 W
Combined power (+5V): 105 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 40 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
Floppy disk drive connector: Yes

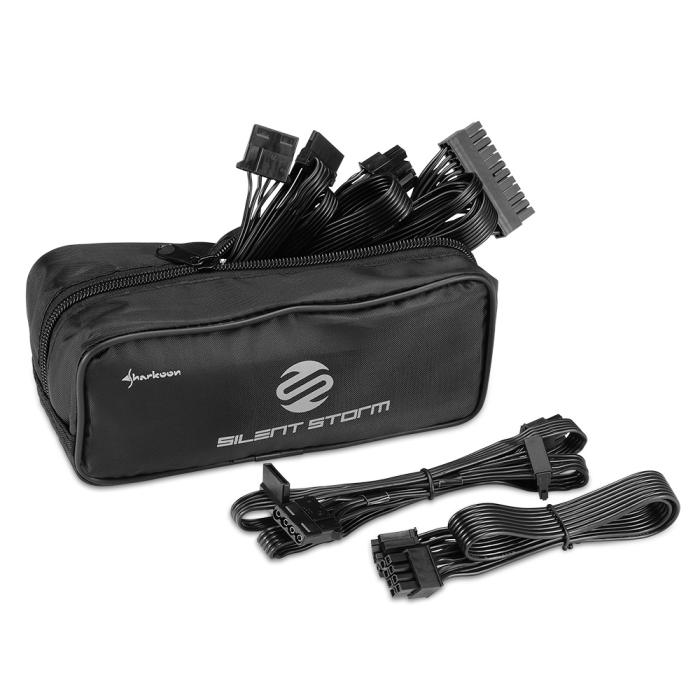

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

Weight & dimensions

Width: 125 mm
Depth: 130 mm
Height: 63 mm

Packaging data

Manual: Yes
Package width: 230 mm
Package depth: 190 mm
Package height: 80 mm
Package weight: 1.8 kg

Logistics data

Harmonized System (HS) code: 84733020

Other features

Case colour: Black
Housing colour: Black
