Description

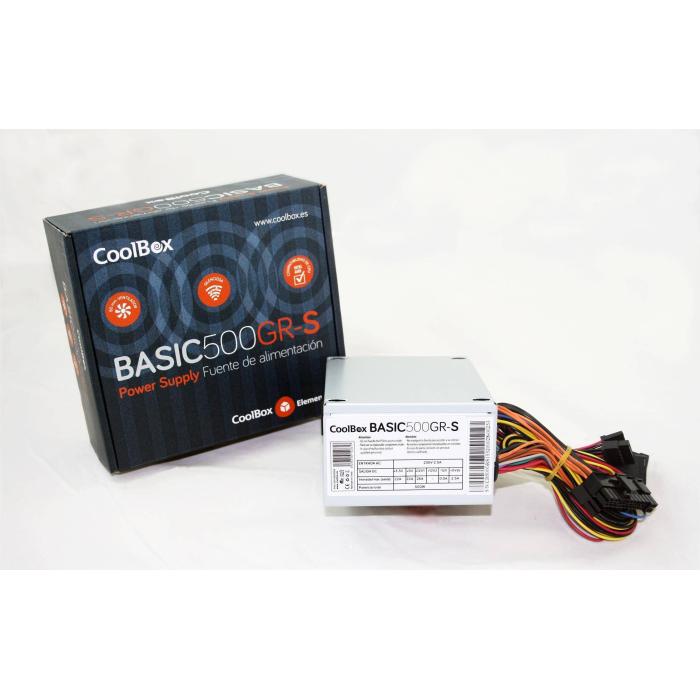

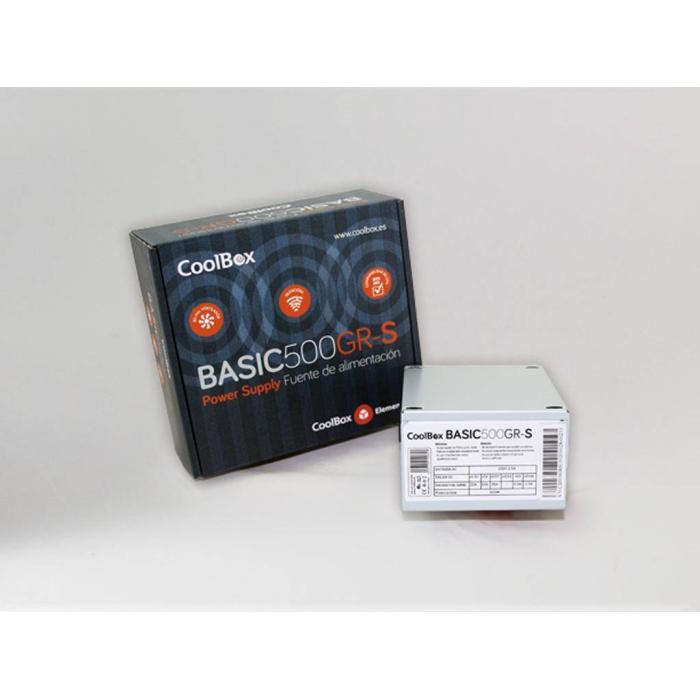

CoolBox SFX Basic 500 W power supply unit in white, designed for desktop computers. Its SFX format and dimensions of 125 x 62 x 100 mm make it suitable for compact cases, with a weight of 593 g. It supports an AC input voltage of 230 V and an input current of 2.5 A, and distributes the load across the output rails: 26 A on +12 V1, 22 A on both +3.3V and +5V, 2.5 A on +5Vsb and 0.5 A on -12V. It includes protection against overcurrent, overvoltage and short circuit. As for connectors, it has a 20+4 pin ATX motherboard power connector, a 4-pin CPU P4 connector, three SATA, a 4-pin peripheral Molex and a floppy drive connector, with non-modular cabling.
Specifications
Power
- Total power: 500 W
- AC input voltage: 230 V
- Input current: 2.5 A
- Max output current (+3.3V): 22 A
- Max output current (+12V1): 26 A
- Max output current (+5V): 22 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over current, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- CPU P4 connector (4-pin): 1
- ATX power connector (20+4 pin): Yes
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- Mean time between failures (MTBF): 100000 h
- Compatible products: EPS1U (2.1), Intel TFX12V v2.3
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 8 cm
- Number of fans: 1 fan(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 85%
Certificates
- Compliance certificates: RoHS
- Certification: CE, Eco-raee
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 62 mm
- Weight: 593 g
Packaging data
- Package type: Box
