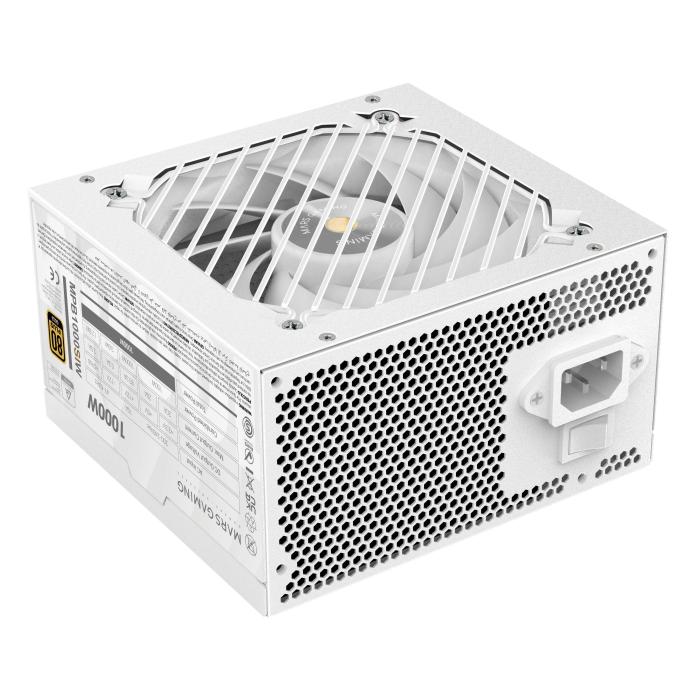

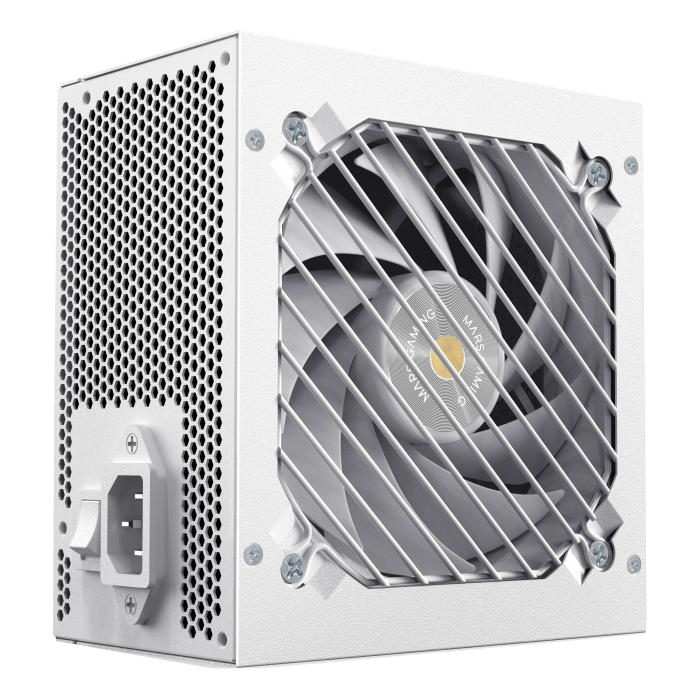

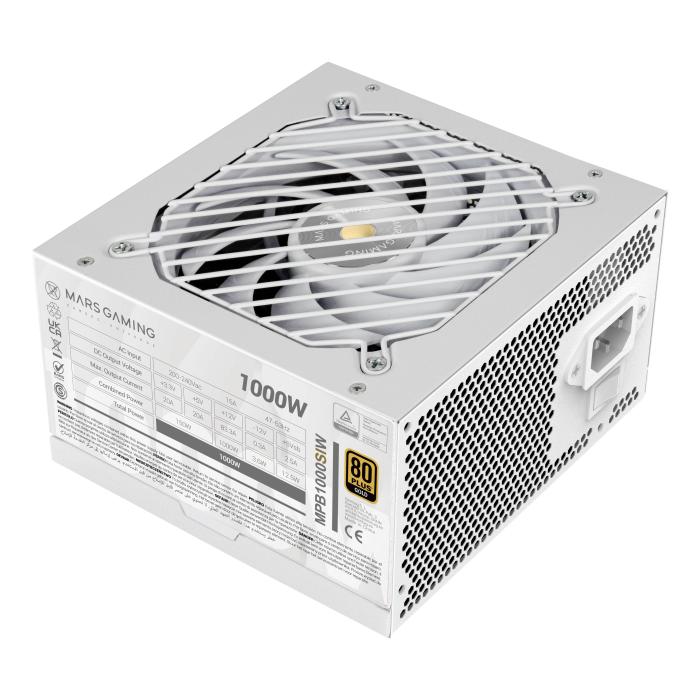

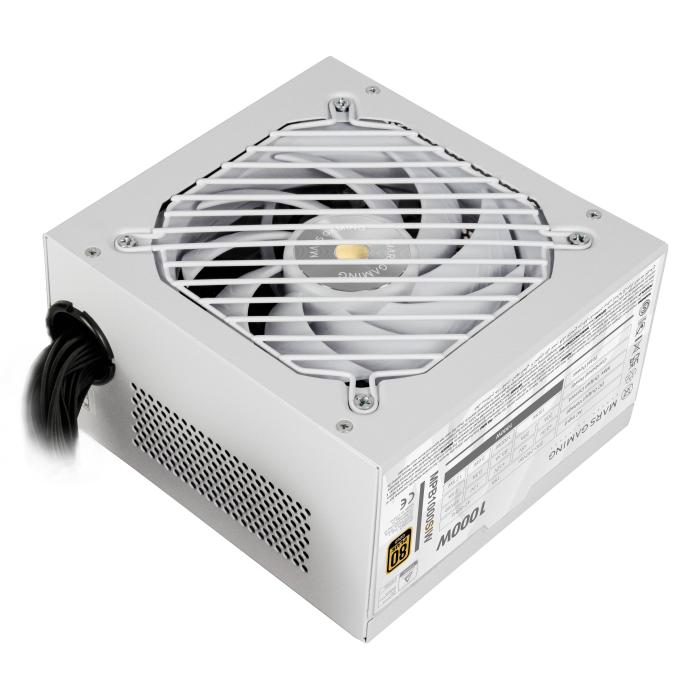

Mars Gaming MPB1000SIW power supply unit 1000 W 24-pin ATX ATX White
More info
Brand: MARS GAMING
79.38 €
65.60 €
without VAT
Stock available: 23 units.
Get it
on the
September 22
/
September 23
SKU:
117084
PRC:
607323
EAN:
8435693110651
PN:
MPB1000SIW
Description
The Mars Gaming MPB1000SIW is a 1000 W power supply unit with a 24-pin ATX form factor and white colour, with dimensions of 150 x 85 x 145 mm (width x height x depth) and a weight of 1.65 kg. Its power factor correction is active, with a power factor of 0.9, and it supports an AC input voltage of 220 to 240 V with an input frequency of 47 to 63 Hz and an input current of 15 A. The 12 V output is organised on a single rail, with a maximum current of 83.3 A and a combined power of 1000 W on that line. On the 3.3 V and 5 V lines it offers 20 A maximum current on each, with 150 W combined power in both cases. The 5 Vsb line delivers 2.5 A with 12.5 W combined power, while the -12 V line stays at 0.3 A and 3.6 W. With an efficiency of 90%, this power supply covers configurations that require a stable supply of 1000 W total.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 220 - 240 V
- AC input frequency: 47 - 63 Hz
- Input current: 15 A
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Number of +12V rail(s): 1
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1000 W
- Combined power (+5V): 150 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX Power connector (24-pin): Yes
- Number of EPS connectors: 2
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Noise level: 14 dB
- Bearing technology: FDB
Design
- Product colour: White
- Cooling type: Active

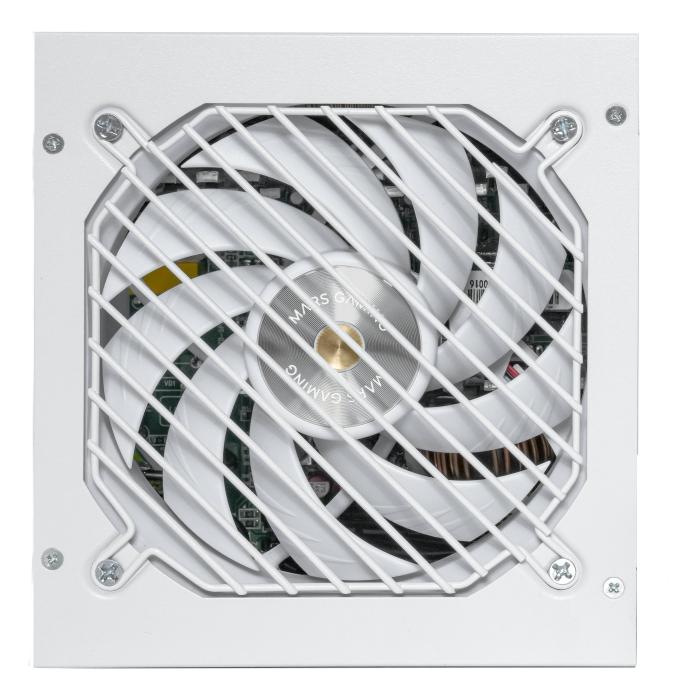

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content

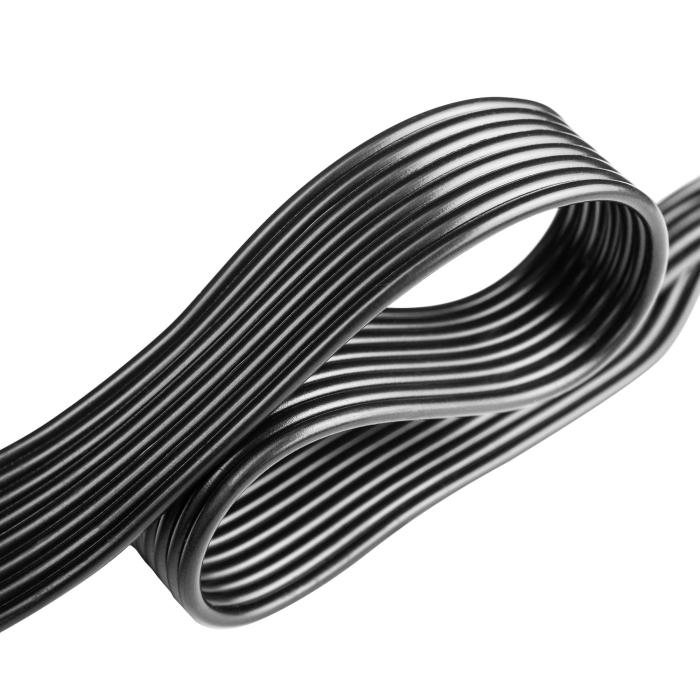

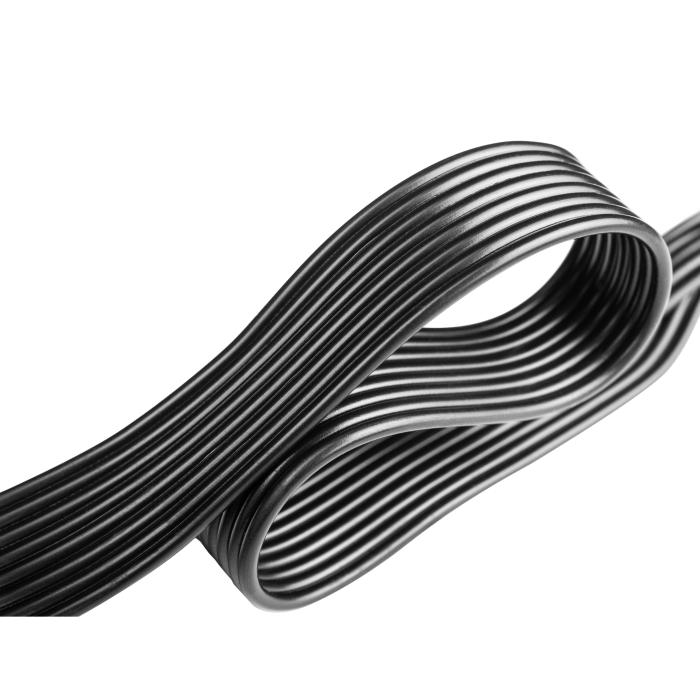

- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Certificates
- Compliance certificates: CE, RoHS, TÜV mark
Weight & dimensions
- Width: 150 mm
- Depth: 145 mm
- Height: 85 mm
- Weight: 1.65 kg
Packaging data
- Package width: 258 mm
- Package depth: 136 mm
- Package height: 206 mm
- Package type: Box
