Description

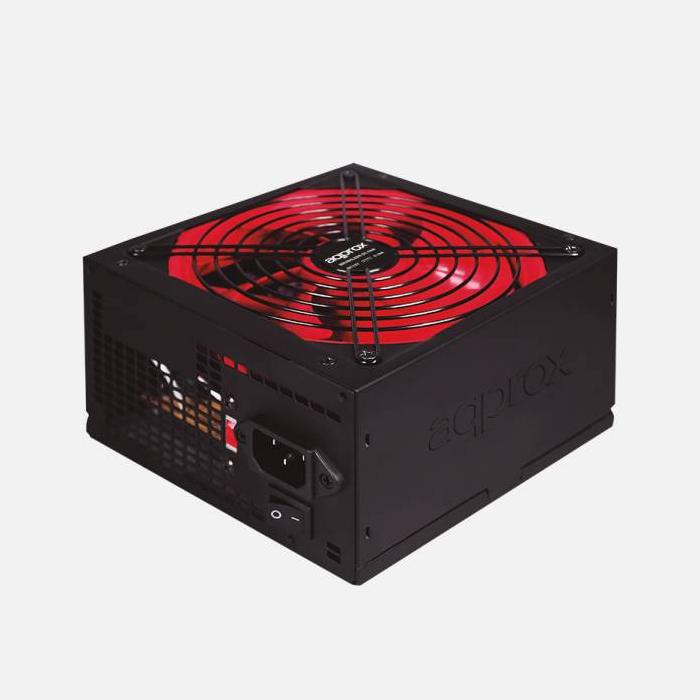

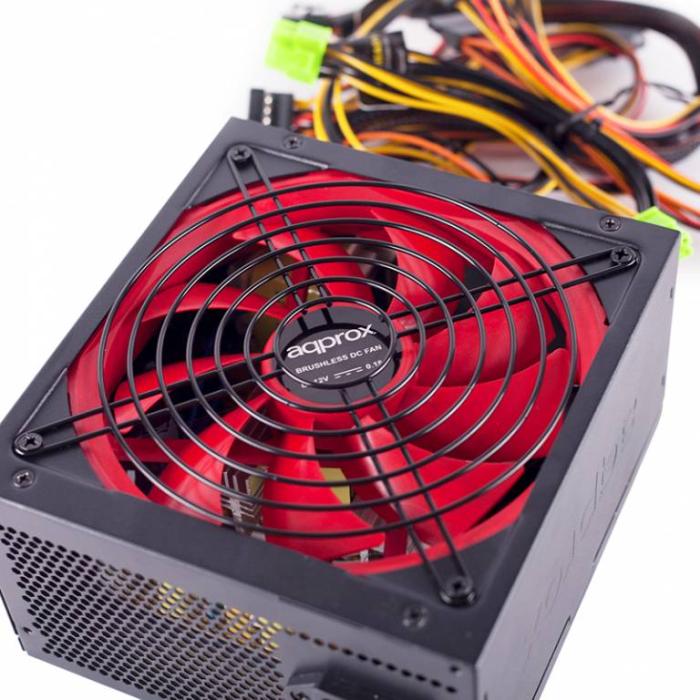

APPROX 800 W ATX power supply with black and red finish, designed for gaming systems; includes a main 20+4 pin connector for the motherboard and non-modular cabling. It offers 87% efficiency, active power factor correction, and 230 V input with a frequency of 50-60 Hz. It distributes 744 W on the +12 V rail (62 A), while the +5 V and +3.3 V rails deliver up to 20 A each, with combined powers of 150 W respectively; the standby (+5 VSB) reaches 15 W and the -12 V rail, 3.6 W. Its input current is 8 A, and the 20+4 pin ATX connector ensures compatibility with current motherboards.
Specifications
Power
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 87%
- Total power: 800 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Input current: 8 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 150 W
- Combined power (+12V): 744 W
- Combined power (+5V): 150 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 120 cm
- Number of SATA power connectors: 4
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Non-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Noise level: 14 dB
Design
- Product colour: Black, Red

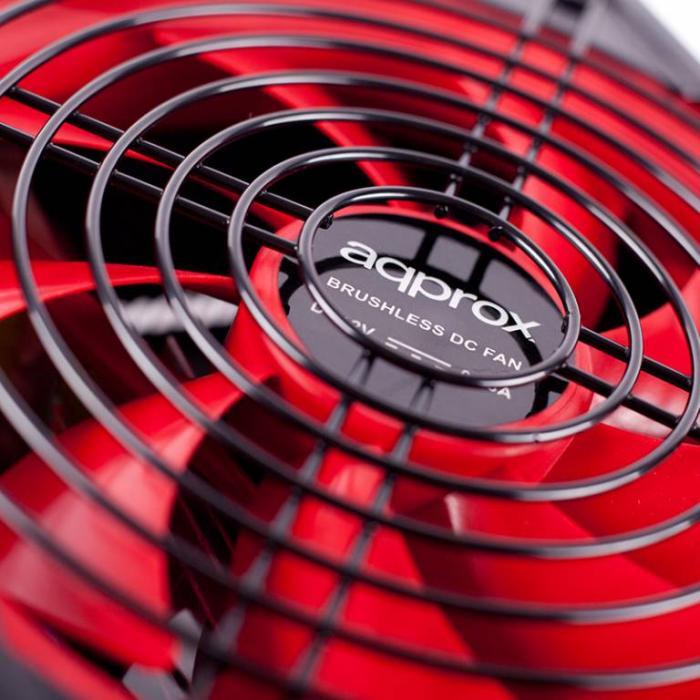

- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Weight & dimensions
- Width: 159 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.43 kg
Packaging data
- Package width: 315 mm
- Package depth: 225 mm
- Package height: 120 mm
- Package weight: 2.08 kg
- Package type: Box
