Description

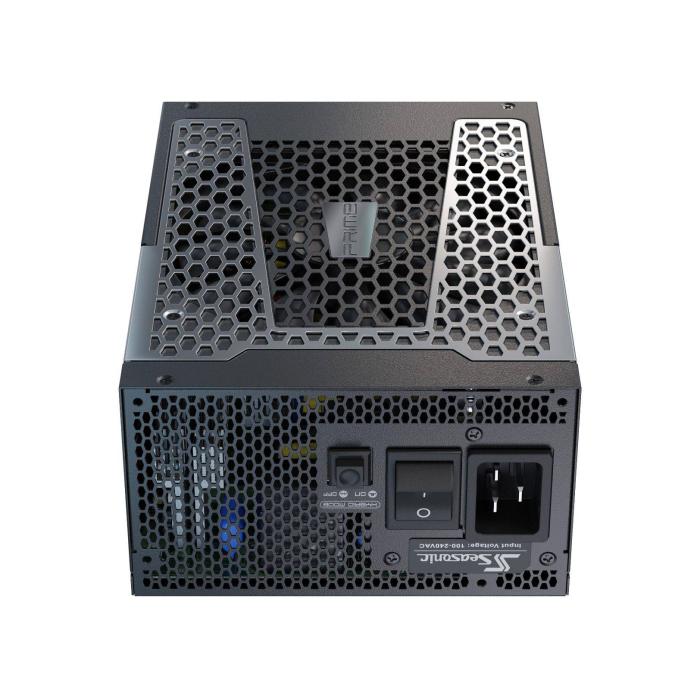

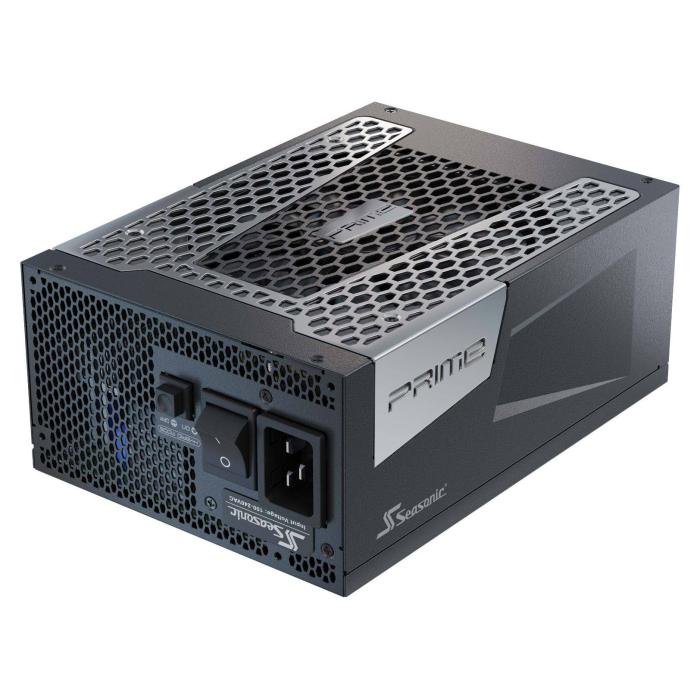

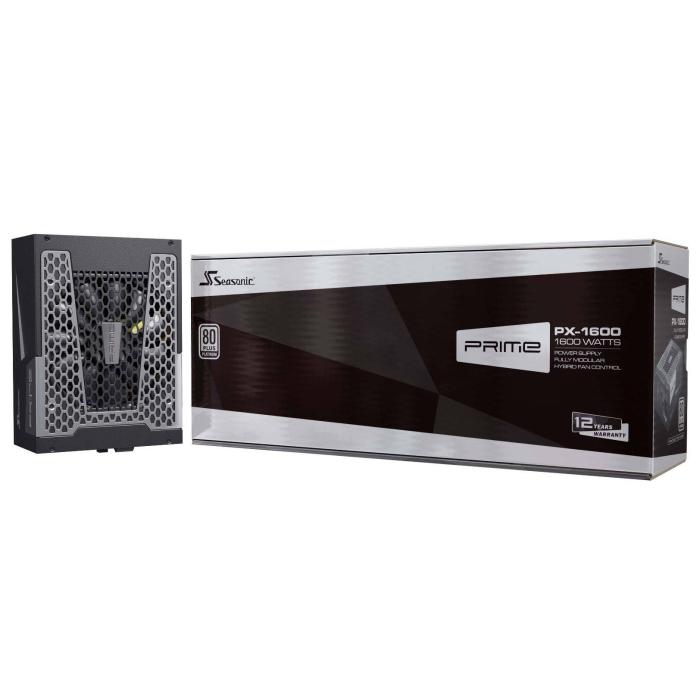

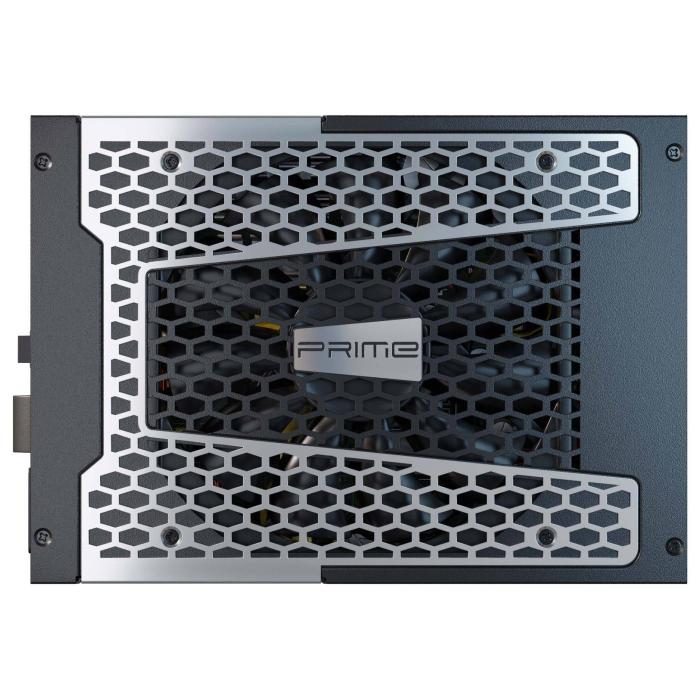

Seasonic PRIME-PX-1600 power supply unit with a total power of 1600 W and ATX form factor in black, designed to power demanding configurations with fully modular cabling that facilitates internal case management. It offers AC input voltage of 115-240 V with input current of 15-10 A and a frequency of 50-60 Hz, ensuring compatibility with standard electrical networks. The +12 V rail delivers up to 133.3 A and 1600 W combined, while the +3.3 V and +5 V outputs provide 25 A each with combined power of 125 W, and the +5 VSB and -12 V rails complete a balanced distribution.
Specifications
Power
- Total power: 1600 W
- AC input voltage: 115 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 15 - 10 A
- Combined power (+3.3V): 125 W
- Combined power (+12V): 1600 W
- Combined power (+5V): 125 W
- Combined power (-12V): 6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 133.3 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 10
- SATA power cable length: 450, 470, 550, 570, 760, 860, 950 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 470, 690 mm
- EPS power connector (8-pin): Yes
- CPU power cable length: 70 cm

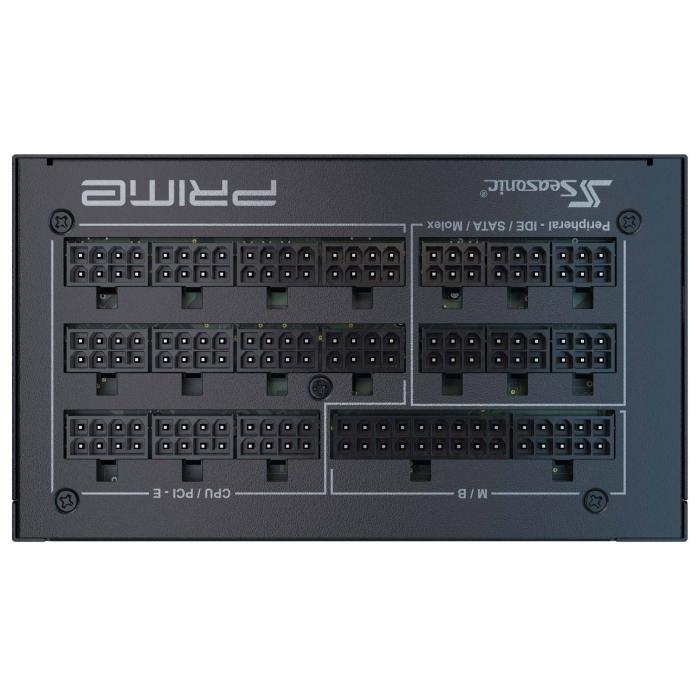

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Bearing technology: FDB
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Packaging content
- Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
- Cable tie(s) included: Yes
Certificates
- Compliance certificates: RoHS
- Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, RoHS, WEEE, ErP Lot 6, REACH, Energy Star
Weight & dimensions
- Width: 150 mm
- Depth: 210 mm
- Height: 86 mm
Packaging data
- Package type: Box
