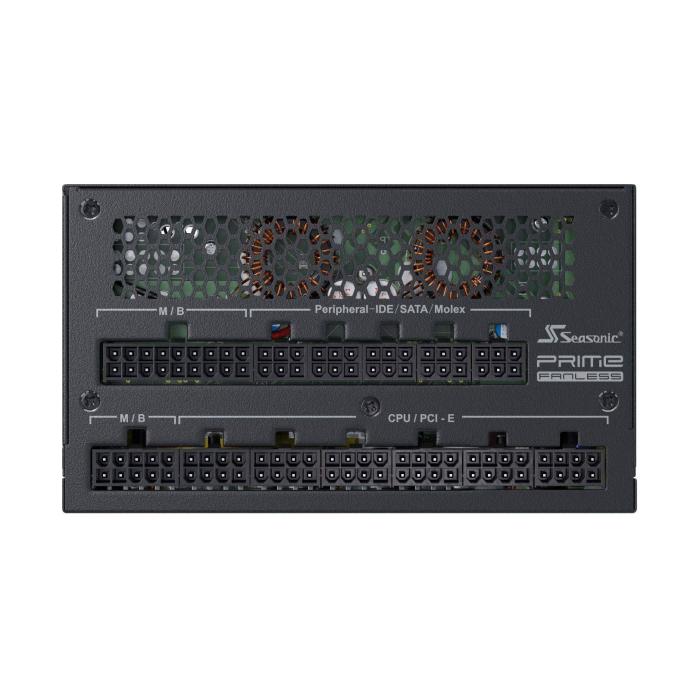

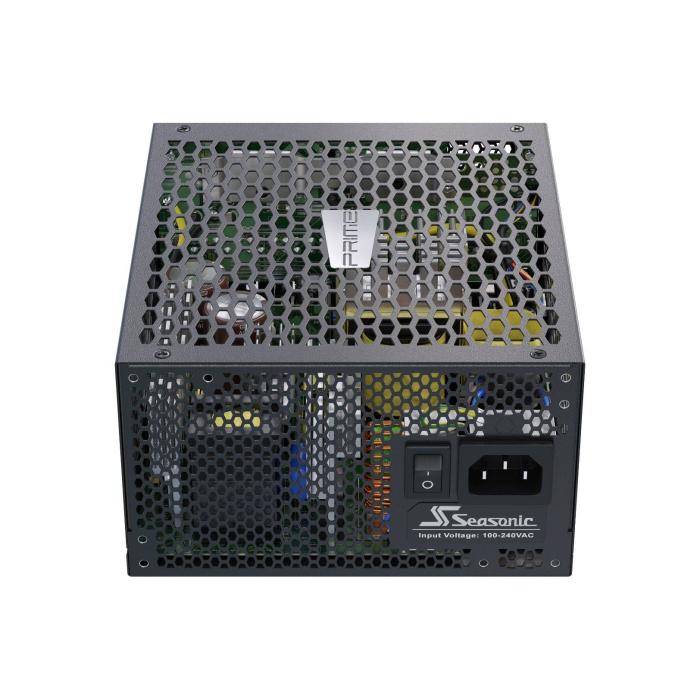

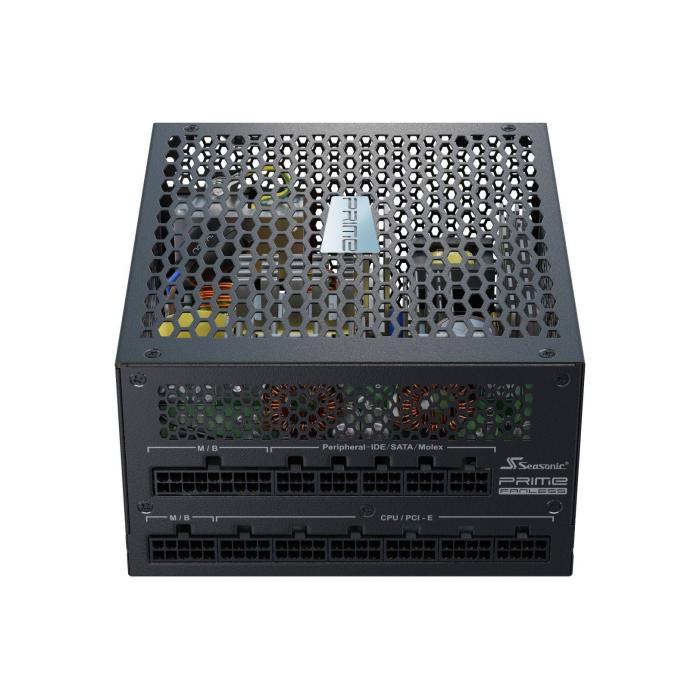

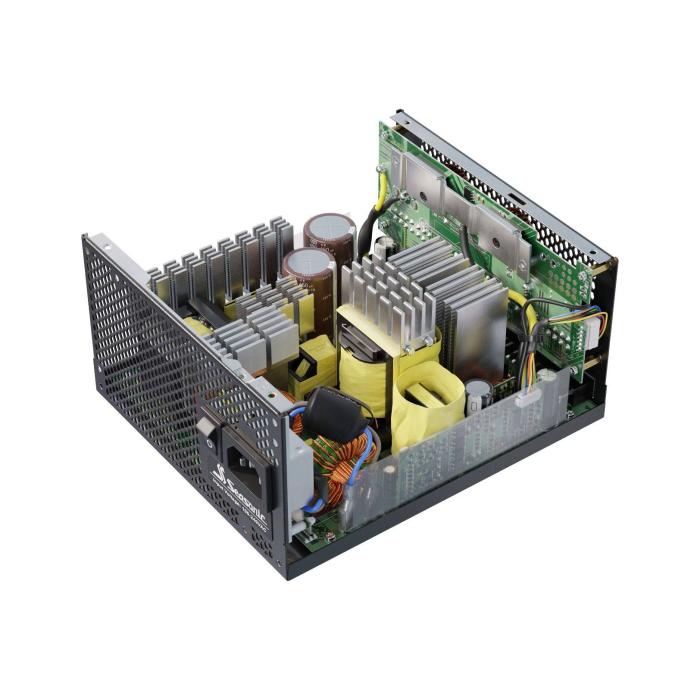

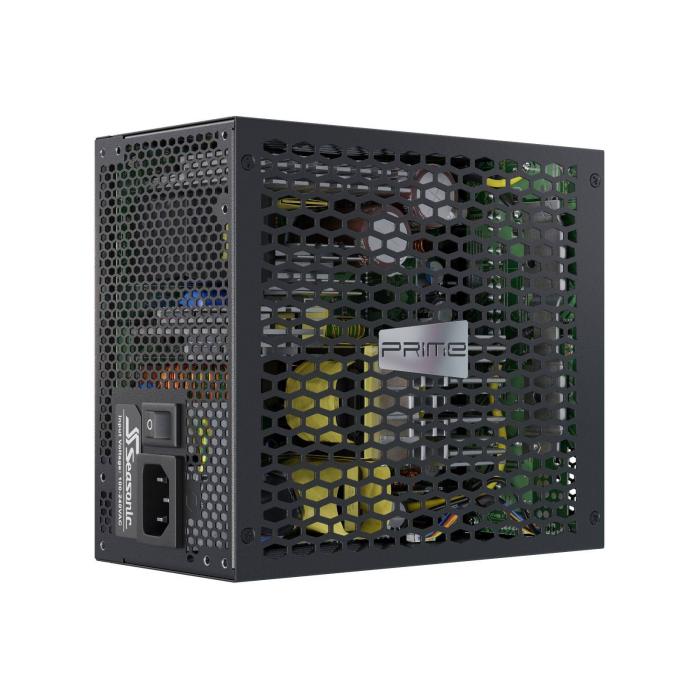

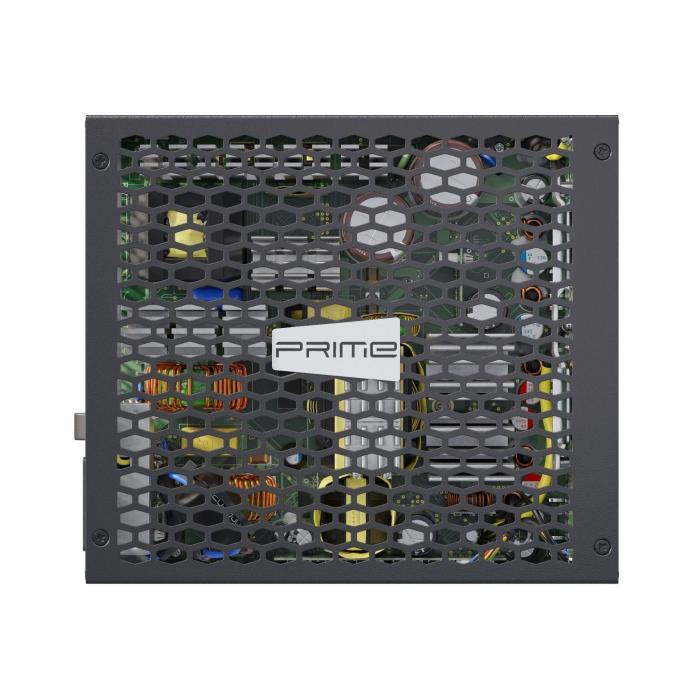

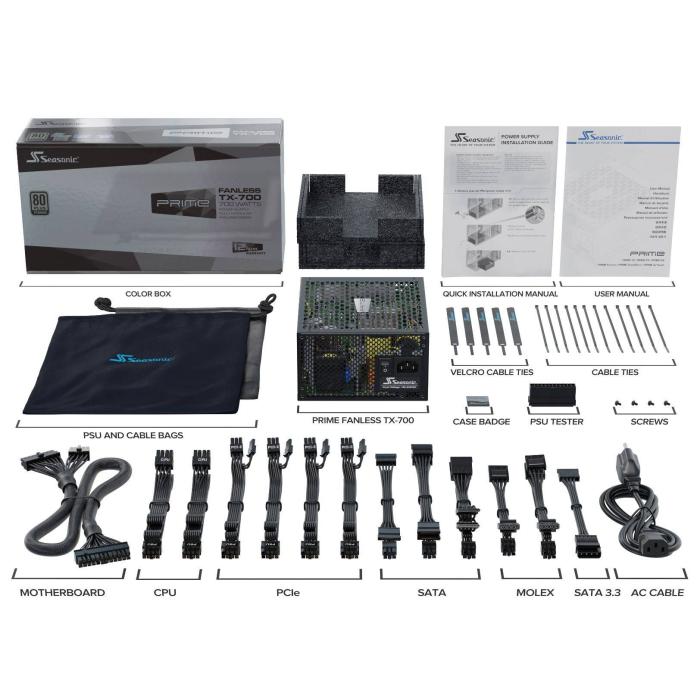

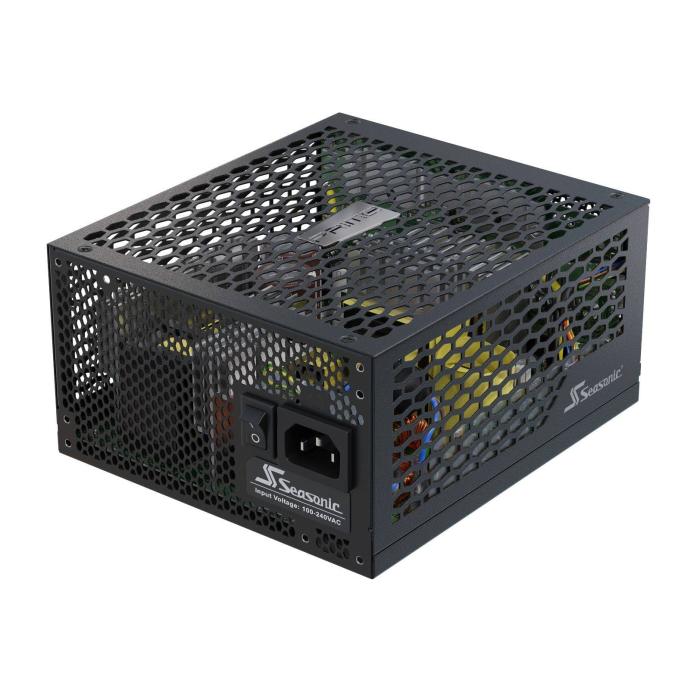

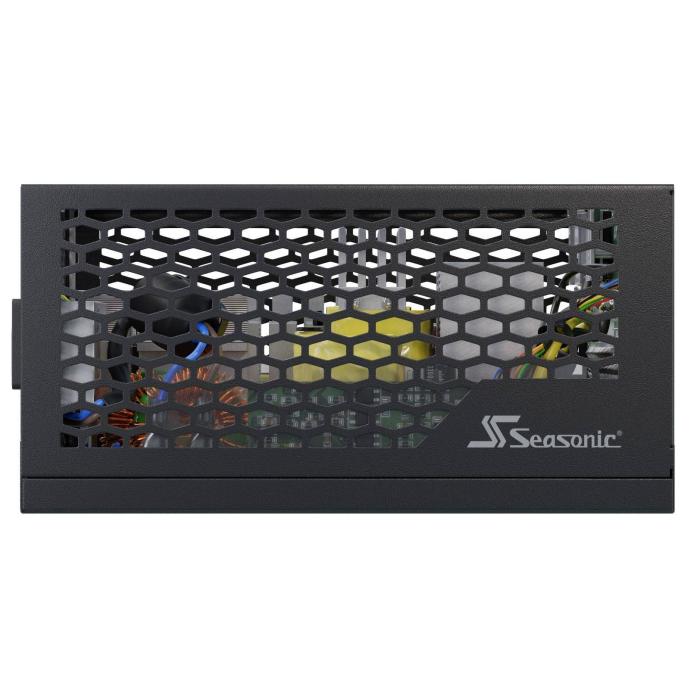

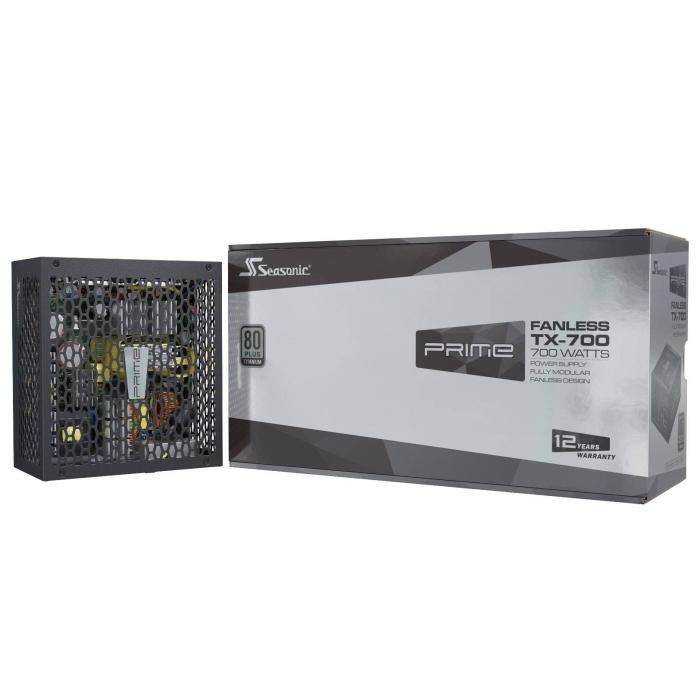

Seasonic PRIME Fanless TX power supply unit 700 W 20+4 pin ATX ATX Black

Not avaliable

More info

Brand: SEASONIC
SKU: 84430 PRC: 284184 EAN: 4711173875581 PN: prime-fanless-tx-700

Description

Specifications

Power

  • Total power: 700 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 4.5 - 9.5 A
  • Combined power (+3.3V): 100 W
  • Combined power (+12V): 696 W
  • Combined power (+5V): 100 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 20 A
  • Max output current (+12V): 58 A
  • Max output current (+5V): 20 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Efficiency: 94%
  • Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 61 cm
  • Number of SATA power connectors: 3
  • SATA power cable length: 450, 800, 810 mm
  • Peripheral (Molex) power connectors (4-pin): 3
  • Peripheral (Molex) power cable length: 300, 470, 690 mm
  • PCI Express power connectors (6+2 pin): 4
  • PCI Express power cable length: 75 cm
  • CPU power cable length: 65 cm
  • CPU power connectors (8-pin): 2
  • Cabling type: Fully-Modular

Performance

  • 80 PLUS certification: 80 PLUS Titanium
  • Supported motherboard form factors: ATX
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • Mean time between failures (MTBF): 150000 h

Design

  • Product colour: Black
  • Cooling type: Passive
  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C

Certificates

  • Compliance certificates: RoHS
  • Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH

Weight & dimensions

  • Width: 150 mm
  • Depth: 170 mm
  • Height: 86 mm

Packaging data

  • Package type: Box

Technical details

  • Sustainability certificates: ENERGY STAR

Logistics data

  • Harmonized System (HS) code: 84733020
