Description

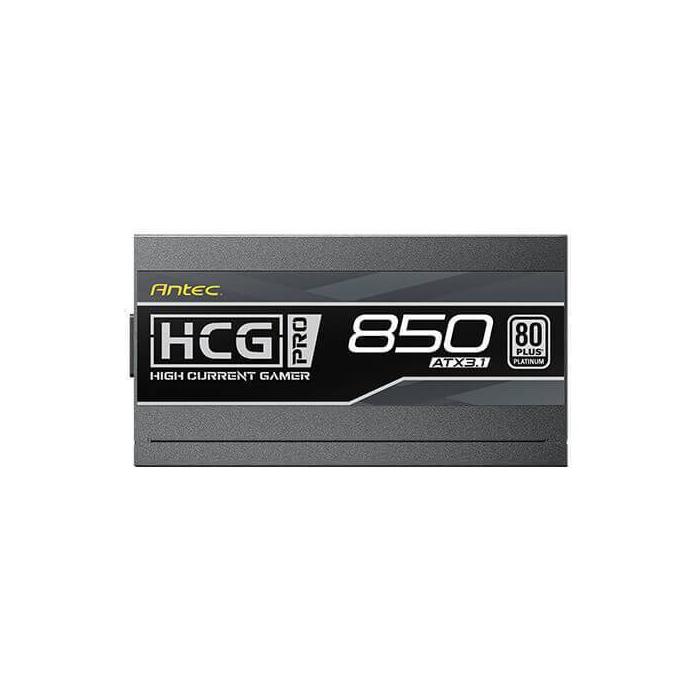

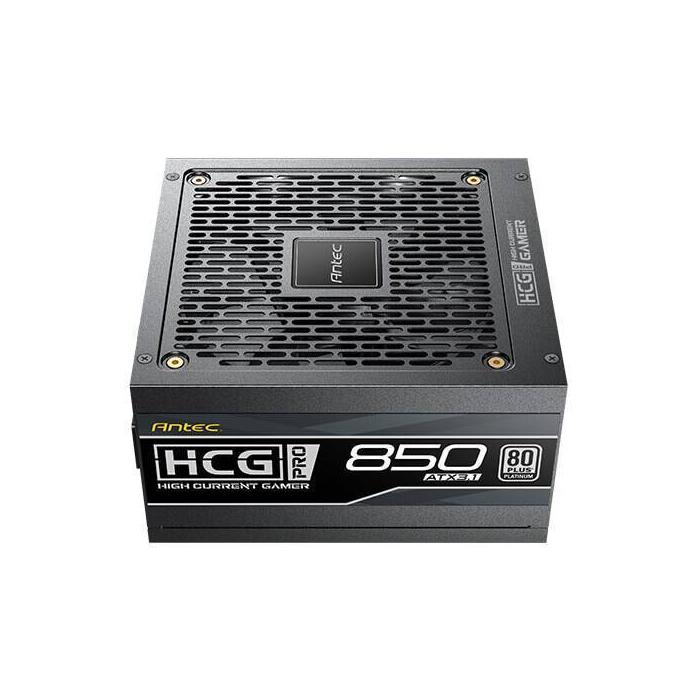

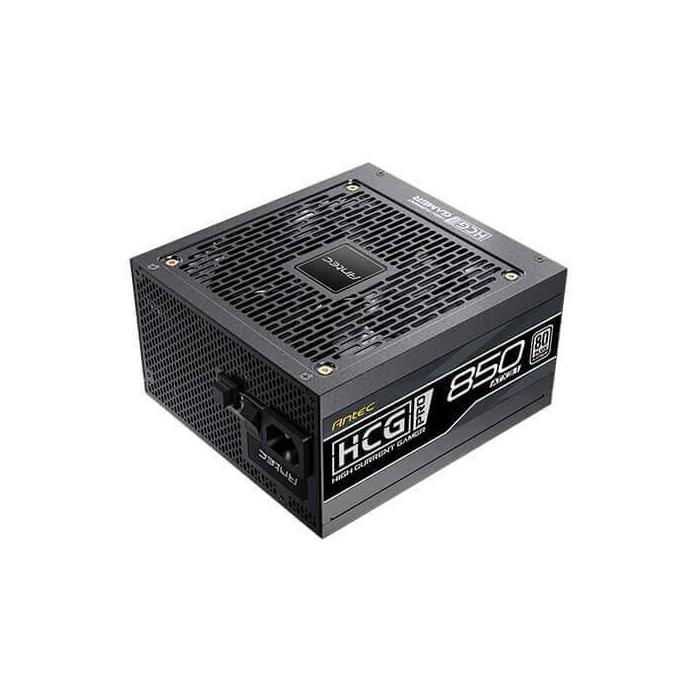

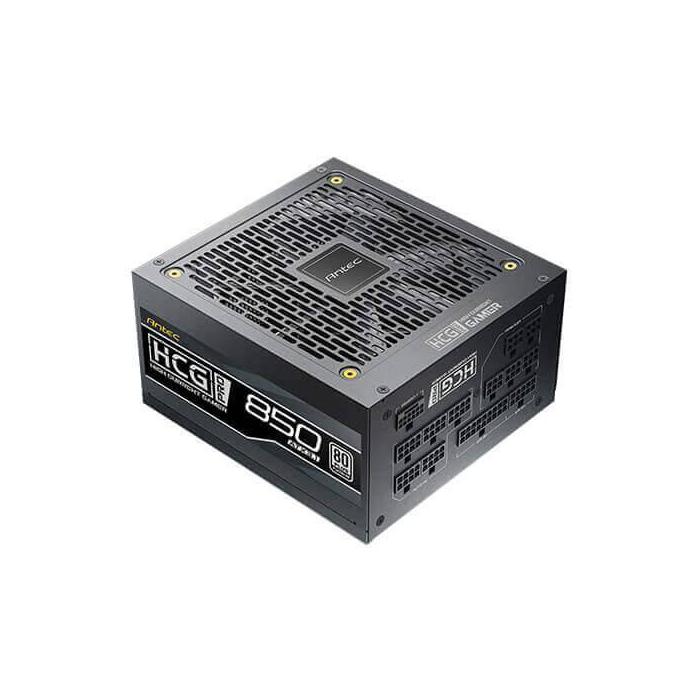

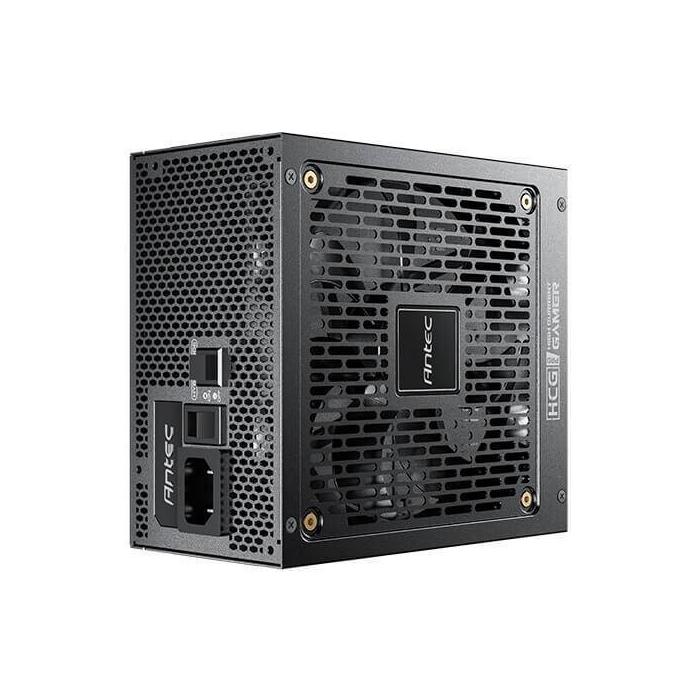

ANTEC High Current Gamer HCG850 PRO Platinum power supply unit with 850 W total power and ATX 3.1 form factor, in black, designed for demanding desktop builds. It offers a +12V output with up to 70 A and 840 W combined, along with a 20+4 pin ATX connector and a 12+4 pin PCI Express connector for modern graphics cards. It includes three 4-pin Molex peripheral connectors and features active power factor correction (PFC), operating over an input voltage range of 100 to 240 V and a frequency of 50/60 Hz. Its combined powers for the 3.3 V, 5 V, 5 VSB and -12 V rails are 100 W, 100 W, 15 W and 3.6 W respectively.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 11 - 5.5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 840 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 70 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 750 mm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- ATX power connector (20+4 pin): Yes

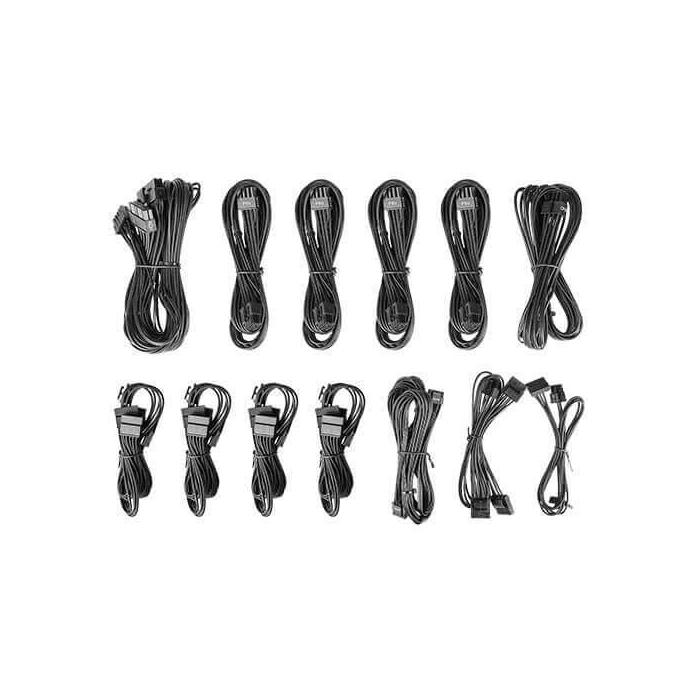

- Cabling type: Fully-Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 14
- SATA power cable length: 400, 500, 550, 650, 800, 950 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 450, 550, 650 mm
- PCI Express power connectors (6+2 pin): 3
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Silent mode: Yes
Design
- Product colour: Black
- Cooling type: Active

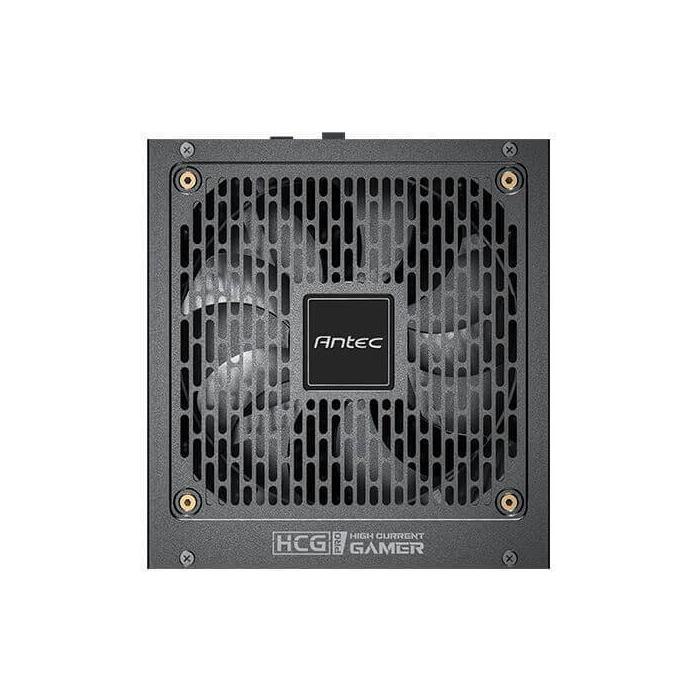

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 3.33 kg
Packaging data
- Package width: 198 mm
- Package depth: 336 mm
- Package height: 133 mm
- Package weight: 3.91 kg
- Package type: Box
