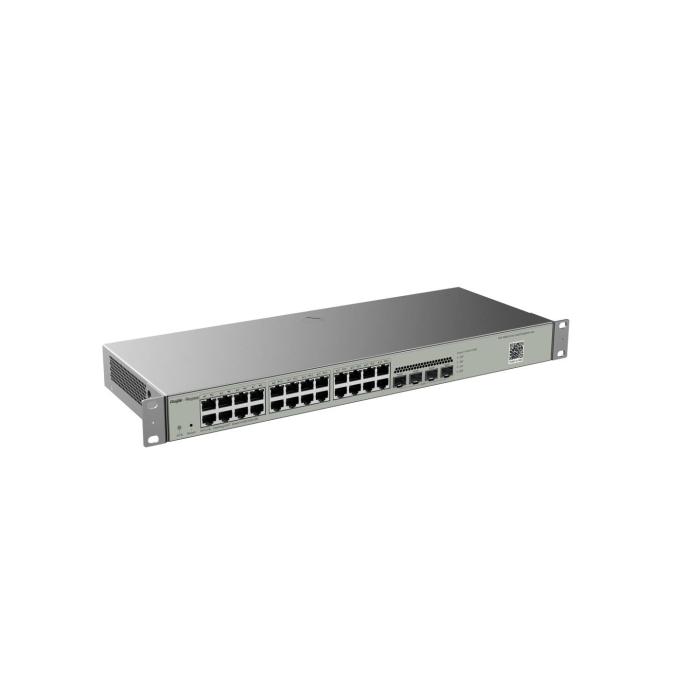

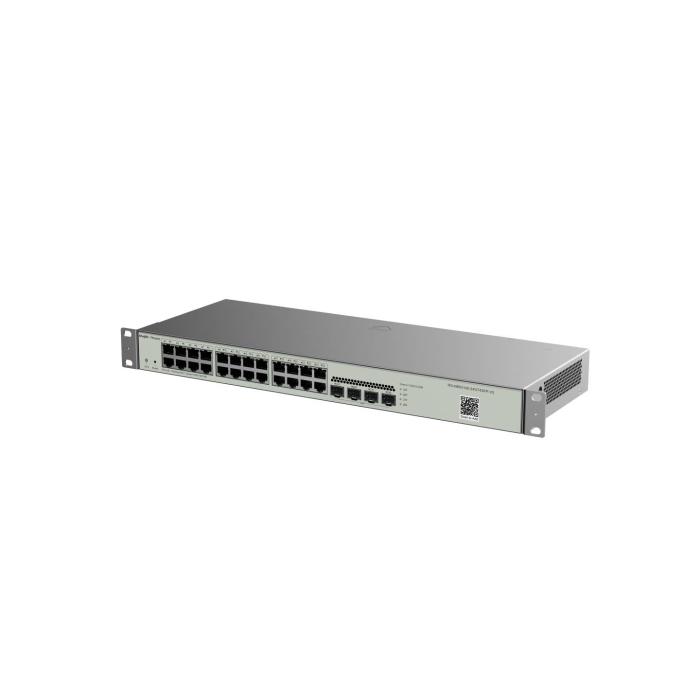

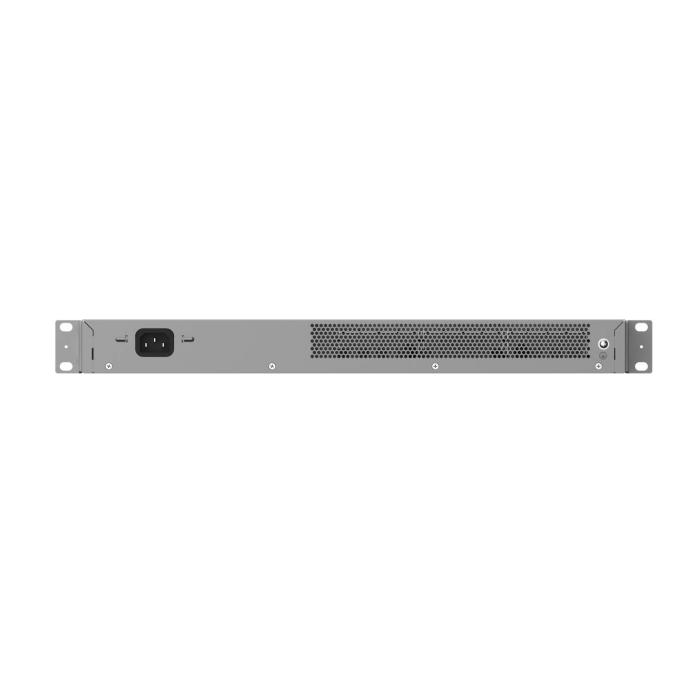

Ruijie Networks RG-NBS3100-24GT4SFP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
More info
Brand: RUIJIE NETWORKS
283,00 €Stock available: 0 units.
Unavailable
SKU:
104382
PRC:
504189
EAN:
6971693270923
PN:
RG-NBS3100-24GT4SFP
Description
Managed L2 switch from Ruijie Networks with 24 RJ-45 Gigabit Ethernet ports (10/100/1000) and 4 SFP slots that allows network expansion with fibre optic. Offers web-based administration and cloud management, along with support for up to 4094 VLANs and features such as Voice VLAN, storm control and link aggregation. Its switching capacity reaches 56 Gbit/s and supports jumbo frames of 9216 bytes, in addition to complying with standards such as IEEE 802.1D, 802.1s and 802.1w for stable operation. This model in black is designed for environments requiring complete network control without the need to upgrade to 10G.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
- 10G support: No
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- VLAN support: Yes
- Virtual LAN features: Voice VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 56 Gbit/s
- Forwarding rate: 41.67 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 12 MB
Security
- DHCP features: DHCP server, DHCP snooping, DHCPv6 client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: HTTPS
- Loop protection: Yes
Design
- Product colour: Black
Performance
- Mean time between failures (MTBF): 200000 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- Input current: 0.6 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 440 mm
- Depth: 165 mm
- Height: 44 mm
Packaging data
- Package weight: 2.4 kg
Certificates
- Compliance certificates: CE, RoHS
