Description

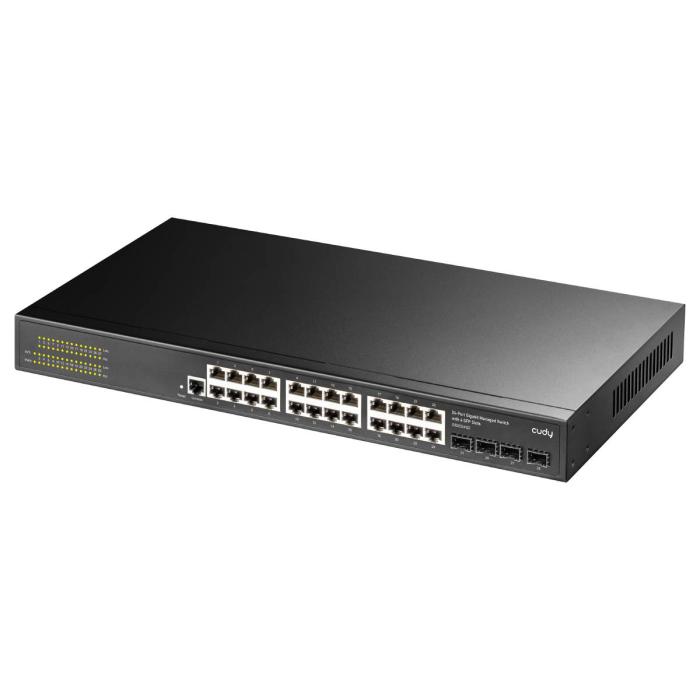

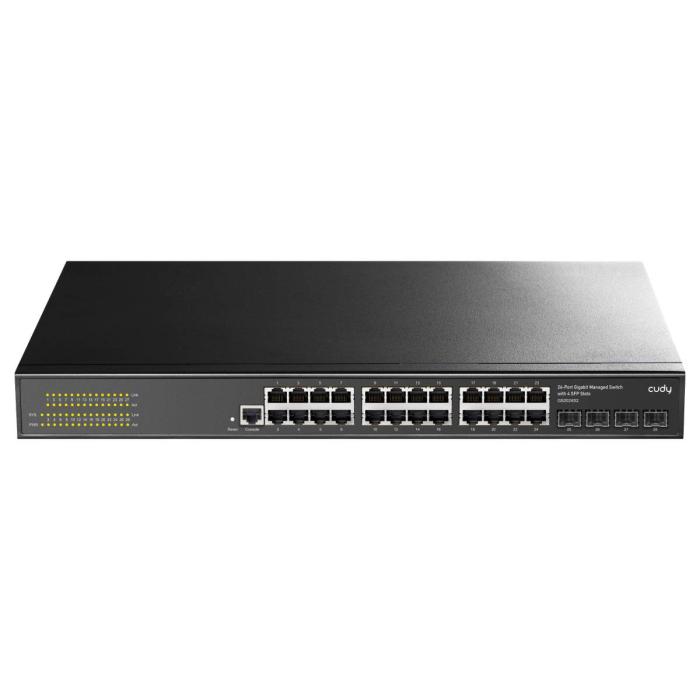

The Cudy GS2024S2 switch, in a 1U format with a black finish, is a managed L2/L3 device featuring 24 Gigabit Ethernet ports (10/100/1000) and four installed SFP modules for fibre connections. It offers web-based administration, Quality of Service (QoS) with traffic classification, support for 4096 VLANs including Voice VLAN, and system event logging. It incorporates features such as spanning tree, link aggregation, and storm control, as well as an RJ-45 console port for local management. Compatible with Cat3, Cat4, and Cat5 cabling, this switch centralises your office or rack network with advanced control without complications.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Installed SFP modules quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav
- Cable types supported: Cat3, Cat4, Cat5
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
- Virtual LAN features: Voice VLAN
- Number of VLANs: 4096
Optical fiber
- Fiber type: Multi-mode
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9.6
- Packet buffer memory: 0.5 MB
Security
- DHCP features: DHCP Option 82, DHCP server, DHCP snooping
- IGMP snooping: Yes
- SSH/SSL support: Yes
- IP-MAC-Port binding: Yes
- Authentication: Port-based authentication
- Authentication type: AAA, TACACS+
Multicast features
- Multicast support: Yes
Protocols
- IPv4 & IPv6 features: IPv6 Telnet
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Link, Power, System
Performance
- Memory type: DDR-SDRAM
- Internal memory: 128 MB
- Flash memory: 16 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
Operational conditions
- Operating temperature (T-T): -10 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 204 mm
- Height: 44 mm
- Weight: 2.45 kg
Packaging data
- Package type: Box
- Package width: 500 mm
- Package depth: 290 mm
- Package height: 85 mm
- Package weight: 3.06 kg
