Description

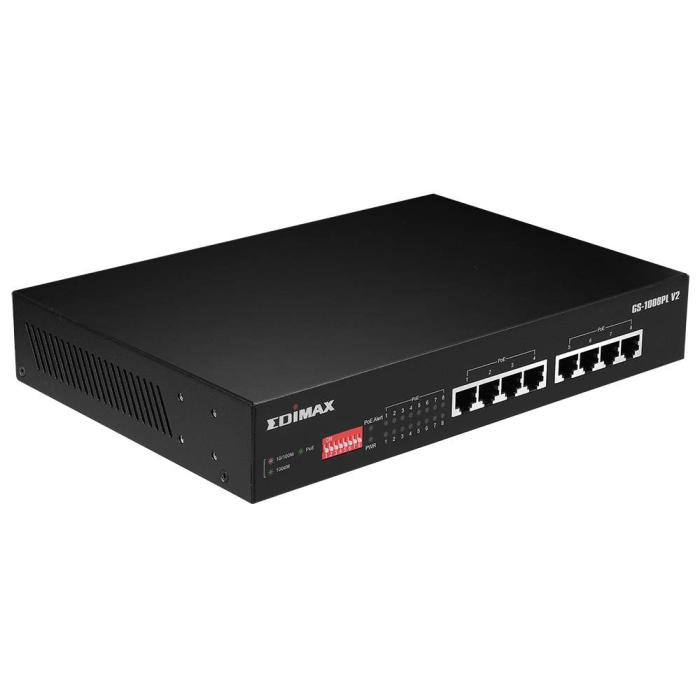

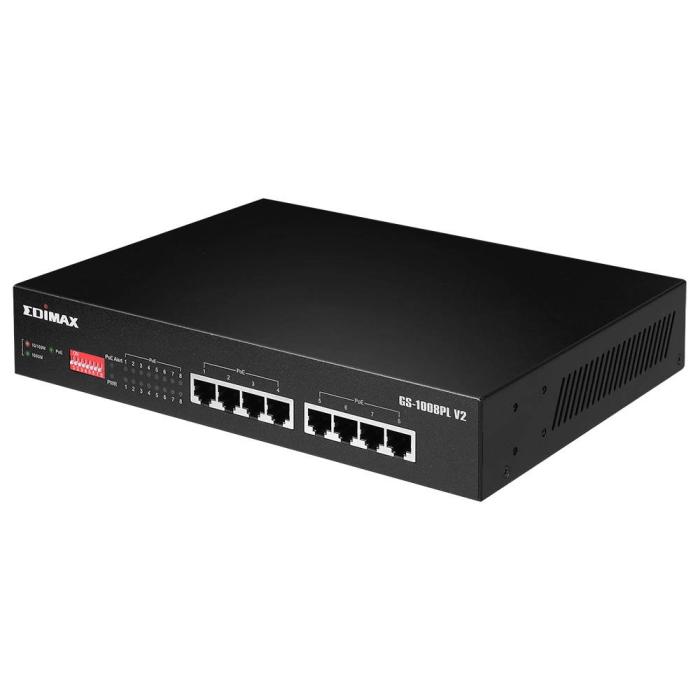

The Edimax GS-1008PL V2 managed switch, in a 1U format with a black finish, offers eight Gigabit Ethernet ports (10/100/1000) with PoE support to power network devices directly from the unit. This L2 layer model includes management functions such as QoS, VLAN and storm control, along with a switching capacity of 16 Gbit/s and a MAC table of 4096 entries. Its store-and-forward switching mode and jumbo frames of up to 9216 bytes optimise data transfer in small and medium-sized business networks. Full duplex and half duplex transmission, as well as the lack of 10G support, position it as a practical solution for environments requiring basic management and energy efficiency.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Broadcast storm control: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 1.488 Mpps
- MAC address table: 4096 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9216
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, Power
Performance
- Fanless: Yes
Power
- Power supply included: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Active PoE
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 70 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 265 mm
- Depth: 184 mm
- Height: 44 mm
- Weight: 1.61 kg
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
- Certification: CE, FCC, LVD
Logistics data
- Harmonized System (HS) code: 85176990
