Description

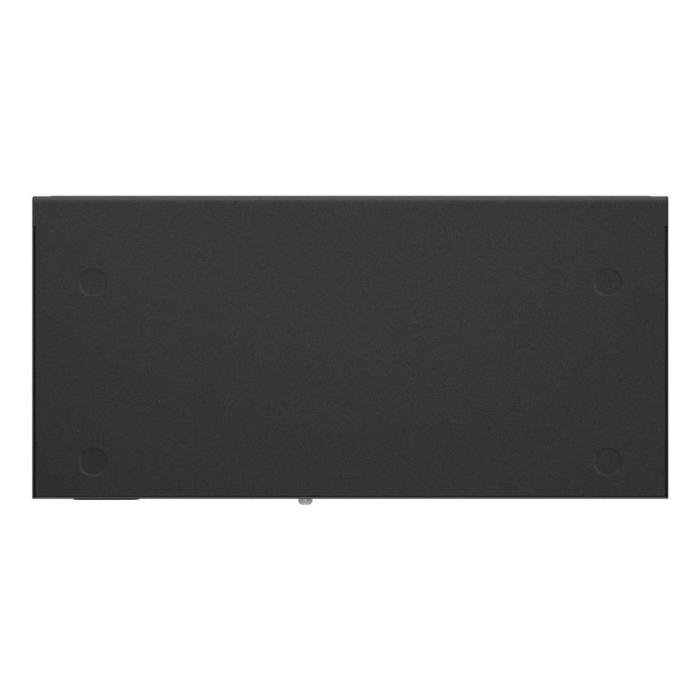

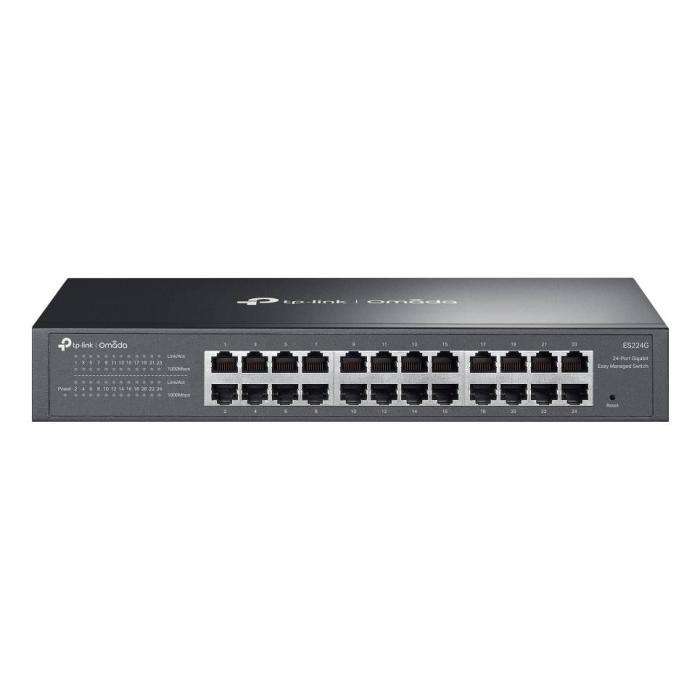

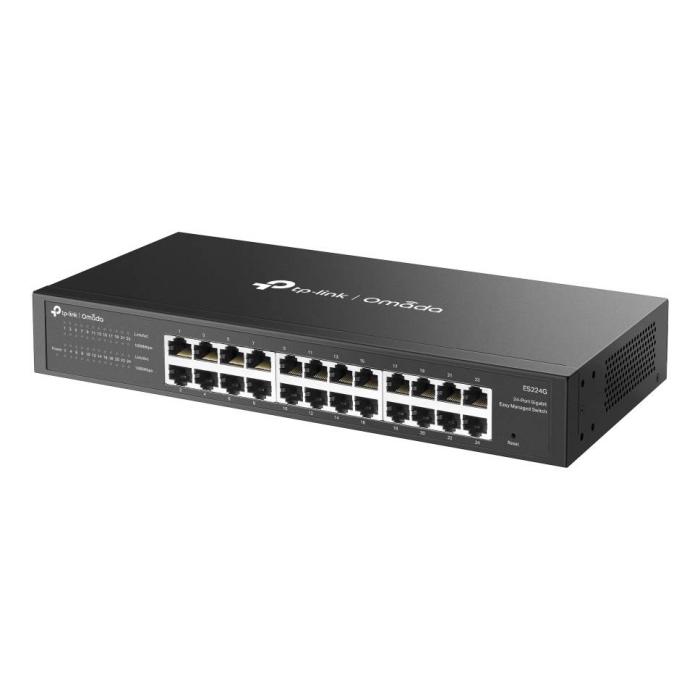

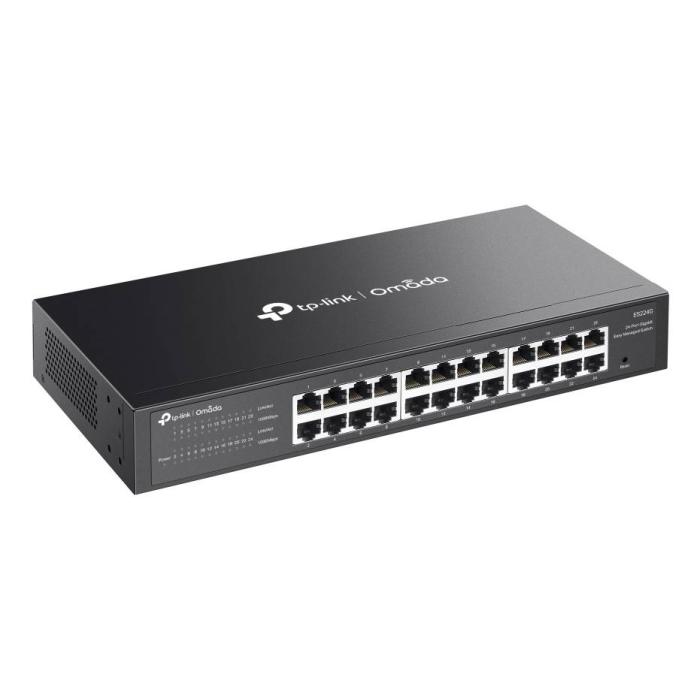

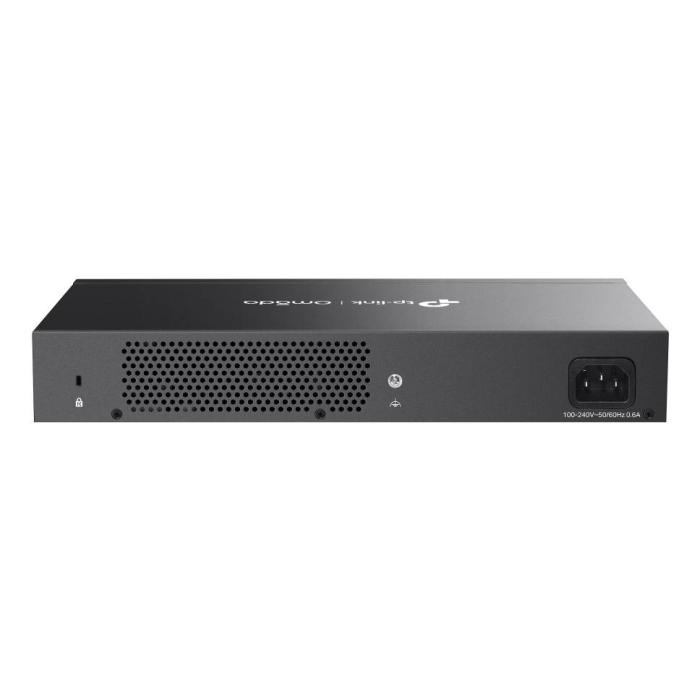

Managed L2 switch TP-Link Omada ES224G in black, with 24 RJ-45 Gigabit Ethernet ports (10/100/1000) to connect your office or business network. It offers web-based administration, unified static configuration, and cloud control to manage your devices centrally. It includes advanced features such as VLAN support for up to 32 networks, quality of service (QoS), flow control, link aggregation, and port mirroring. Its auto-negotiation and automatic MDI/MDI-X cable detection simplify installation, while storm control and Fast Leave support optimise network performance.
Specifications
Management features
- Cloud-managed: Yes
- Unified static configuration: Yes
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
Network
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Fast leave: Yes
- Virtual LAN features: MTU VLAN, Port-based VLAN
- Number of VLANs: 32
- Broadcast storm control: Yes
- VLAN support: Yes
Data transmission
- Store-and-forward: Yes
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 15000
- Packet buffer memory: 4 MB
Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- DHCP features: DHCP client
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
Performance
- Firmware upgradeable: Yes
- Fanless: Yes
Power
- Surge protection: Yes
- Surge protection voltage: 6 kV
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 294 mm
- Depth: 140 mm
- Height: 44 mm
Packaging content
- User guide: Yes
- Cables included: AC
- Rack mount kit: No
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
