Description

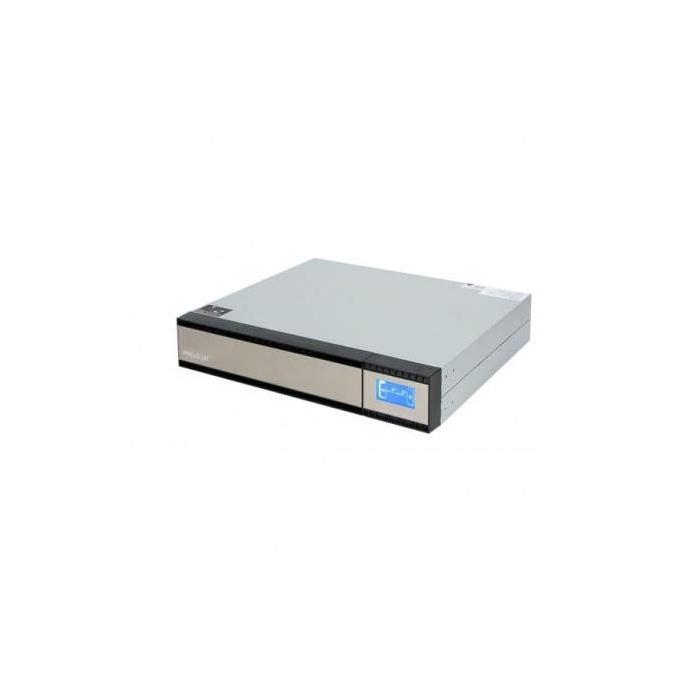

Online UPS in rack format, 1000 VA from Phasak, model PH 9310, designed for AC power supply with pure sine wave and an output power factor of 0.9. This unit includes automatic voltage regulation (AVR), ECO mode, and protection against overload, overvoltage, overheating, and battery discharge, with configurable audible alarms for battery replacement, fault, low battery, or overload. Its crest factor of 3:1 and input frequency of 45/55 Hz guarantee an adequate response to variable loads, while the noise level is kept at 45 dB. The output operates at 60 Hz with frequency regulation of 50/60 Hz, and it does not feature additional overload protection beyond the listed power protection functions.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 900 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 160 V
- Input frequency: 45/55 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 60 Hz
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.9%
- Power factor: 0.9
- Input power factor: 1
- Output power factor: 0.9
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 2%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes
Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content
- Rack mount kit: Yes
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 410 mm
- Height: 88 mm
- Weight: 11.6 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 440 mm
- Package depth: 470 mm
- Package height: 250 mm
- Package weight: 12.6 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
