Description
The Phasak Protekt Tower Interactive UPS 2160 VA (reference PH 75121) delivers an output power of 1400 W and operates at an output frequency of 50/60 Hz, with a transfer time of 4 ms when switching from line mode to battery. This single-phase input and output unit operates with an output voltage between 220 V and 240 V, and accepts a minimum input voltage of 165 V. It includes protection functions against battery discharge, overvoltage, overload and overheating, as well as an audible alarm for failure, low battery and overload. It features emergency shutdown, auto-shutdown and auto-restart, emitting a noise level of 45 dB; its power supply is alternating current.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.16 kVA
- Output power: 1400 W
- Waveform: Pure sine
- Input operation voltage (min): 165 V
- Input operation voltage (max): 290 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Transfer time (Line Mode to Battery Mode): 4 ms
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Power factor: 0.6
- Output power factor: 0.6
- ECO mode: No
- Emergency Power Off (EPO): Yes
- Noise level: 45 dB
- Surge protection: Yes
- Power protection features: Battery discharge, Over power, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Fault, Low battery alarm, Overload alarm
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes

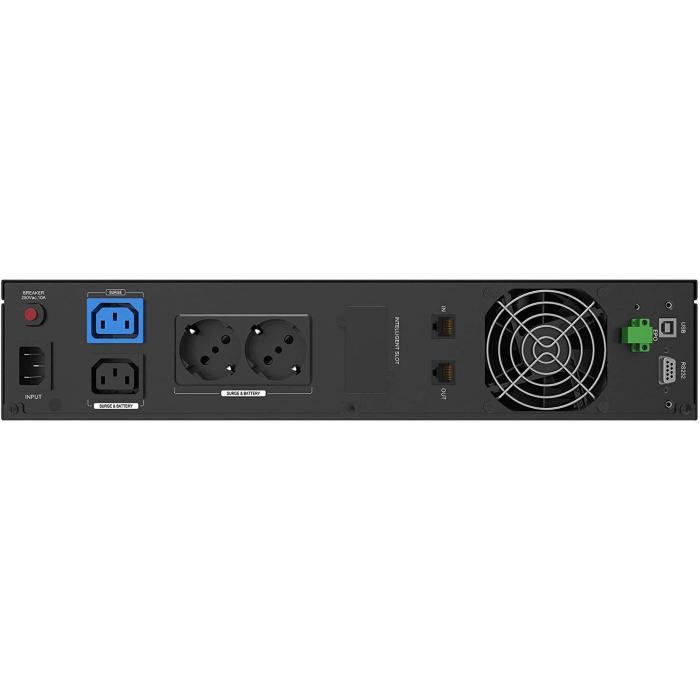

Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- Number of type F outputs: 2
- Number of outlets (Battery backup & protection): 4
- Number of output IEC jumpers: 2
- Number of outlets (Protection): 1
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RJ-45
- Serial ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
- Programmable sockets: No
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Battery recharge time (90%): 8 h
- Charging current: 1 A
- Hot-swap battery: No
- Automatic battery test: No
- Cold start: Yes
- Rechargeable battery: Yes
- Battery level indicator: Yes
- Off-mode charging: Yes
Design
- Control type: Buttons
- Display type: LCD
- LED indicators: Activity, Alarm, Battery level, Charging, Power, Power fail, Status
- Form factor: Compact
- Rack capacity: 2U
- Extended battery module rack capacity: 2U
- Cable length: 1 m
- Modular: No
- Cooling type: Passive
- Built-in fan: Yes
- Product colour: Grey
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 2400 m
- Non-operating altitude: 2400 - 3000 m
Certificates
- Compliance certificates: CE
Packaging content
- Batteries included: Yes
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 400 mm
- Height: 88 mm
- Weight: 16.5 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Screws included: No
- Bracket: Yes
- Rubber feet: Yes
- Management card included: Yes
- Fuse included: Yes
- Resource CD: No
- Warranty card: Yes
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 500 mm
- Package depth: 450 mm
- Package height: 150 mm
- Package weight: 17 kg
- Package type: Box
Logistics data
- Serialized: Yes
- Quantity per pack: 1 pc(s)
- Warranty period: 3 year(s)
Other features
- Power plug type: Type F
