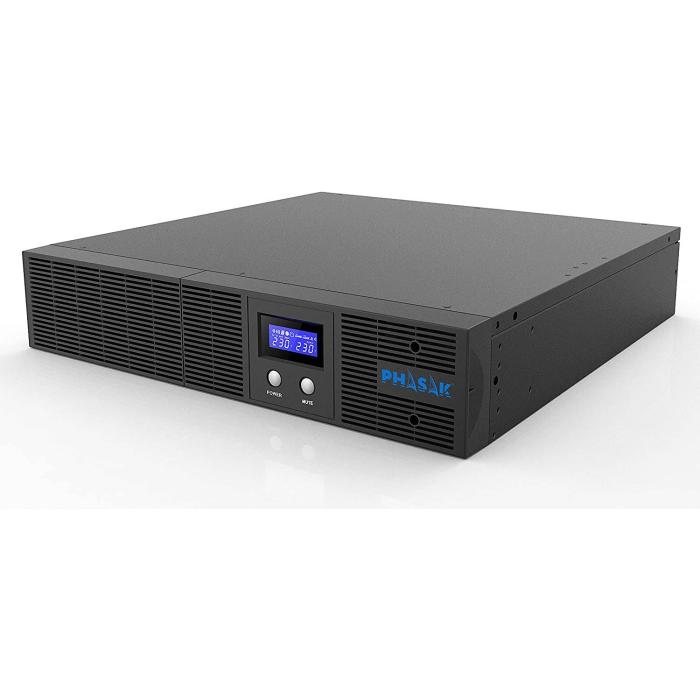

Phasak UPS Protekt Rack Interactive 1260 VA - PH 7512

$198.05
$198.05 without VAT

More info

Brand: PHASAK
SKU: 87697 PRC: 316161 EAN: 5605922009138 PN: ph 7512

Description

Specifications

Features

  • UPS topology: Line-Interactive
  • Output power capacity: 1.26 kVA
  • Output power: 720 W
  • Waveform: Pure sine
  • Input operation voltage (min): 165 V
  • Input operation voltage (max): 290 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Automatic Voltage Regulation (AVR): Yes
  • Transfer time (Line Mode to Battery Mode): 4 ms
  • Response time: 4 ms
  • Number of input phases: 1
  • Number of output phases: 1
  • Power factor: 0.6
  • Output power factor: 0.6
  • ECO mode: No
  • Emergency Power Off (EPO): Yes
  • Noise level: 45 dB
  • Surge protection: Yes
  • Power protection features: Battery discharge, Over power, Overcharge, Overheating, Overload
  • Carrying handle(s): No
  • Audible alarm(s): Yes
  • Audible alarm modes: Fault, Low battery alarm, Overload alarm
  • Auto-restart: Yes
  • Auto shut-off: Yes
  • Power source type: AC
  • Detachable power cord: Yes

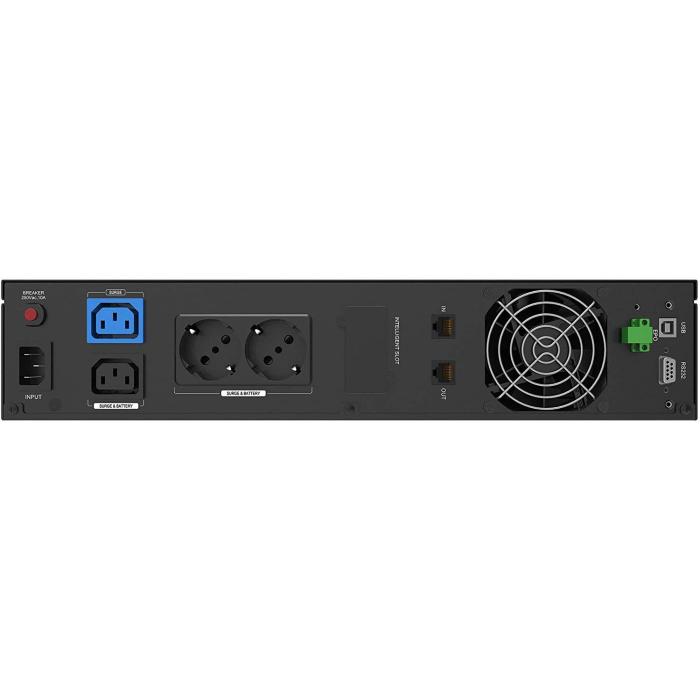

Ports & interfaces

  • AC outlet types: C13 coupler
  • Power plug: Type F
  • AC outlets quantity: 4 AC outlet(s)
  • Number of type F outputs: 2
  • Number of outlets (Battery backup & protection): 4
  • Number of output IEC jumpers: 2
  • Number of outlets (Protection): 1
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • USB port type: USB Type-B
  • Serial interface: Yes
  • Serial interface type: RJ-45
  • Serial ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 2
  • Emergency Power Off (EPO) connector: Yes
  • SmartSlot: Yes
  • Programmable sockets: No

Battery

  • Battery technology: Lead-Calcium (Pb-Ca)
  • Battery capacity: 7 Ah
  • Battery voltage: 12 V
  • Number of batteries supported: 2
  • Typical backup time at full load: 15 min
  • Typical backup time at half load: 8 min
  • Battery recharge time: 4 h
  • Battery recharge time (90%): 8 h
  • Charging current: 1 A
  • Hot-swap battery: No
  • Automatic battery test: No
  • Cold start: Yes
  • Rechargeable battery: Yes
  • Battery level indicator: Yes
  • Off-mode charging: Yes

Design

  • Form factor: Compact
  • Rack capacity: 2U
  • Extended battery module rack capacity: 2U
  • Cable length: 1 m
  • Modular: No
  • Cooling type: Passive
  • Built-in fan: Yes
  • Product colour: Grey
  • Control type: Buttons
  • Display type: LCD
  • LED indicators: Activity, Alarm, Battery level, Charging, Power, Power fail, Status

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Operating altitude: 0 - 2400 m
  • Non-operating altitude: 2400 - 3000 m

Certificates

  • Compliance certificates: CE

Packaging content

  • Batteries included: Yes
  • Rack mount kit: No
  • Cables included: Power load cable
  • Manual: Yes
  • Quick installation guide: Yes

Sustainability

  • Sustainability compliance: Yes

Weight & dimensions

  • Width: 438 mm
  • Depth: 400 mm
  • Height: 88 mm
  • Weight: 14.2 kg
  • Battery width: 15.1 cm
  • Battery depth: 6.5 cm
  • Battery height: 9.5 cm
  • Battery weight: 2.2 kg

Packaging data

  • Screws included: No
  • Bracket: Yes
  • Rubber feet: Yes
  • Management card included: Yes
  • Fuse included: Yes
  • Resource CD: No
  • Warranty card: Yes
  • Software CD: No
  • Manual languages: English, Spanish, Portuguese
  • Package width: 500 mm
  • Package depth: 450 mm
  • Package height: 150 mm
  • Package weight: 15 kg
  • Package type: Box

Logistics data

  • Serialized: Yes
  • Quantity per pack: 1 pc(s)
  • Warranty period: 3 year(s)

Other features

  • Power plug type: Type F
