Description

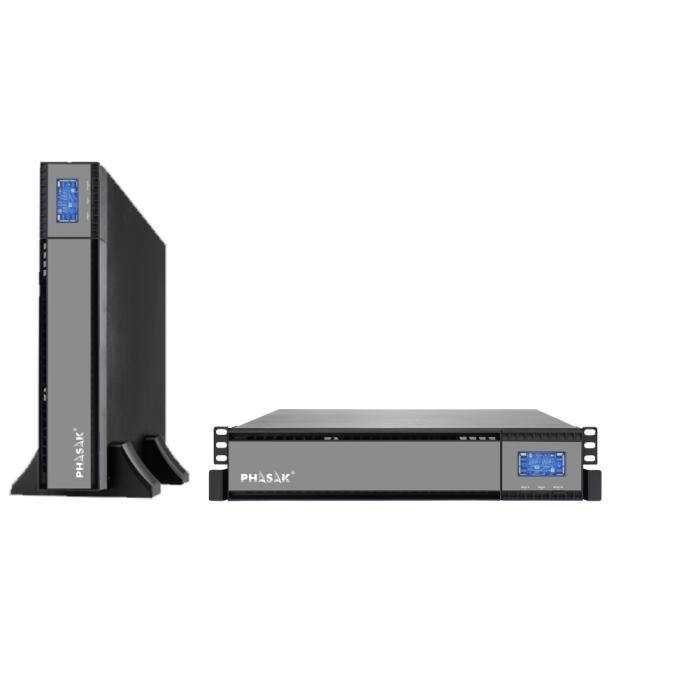

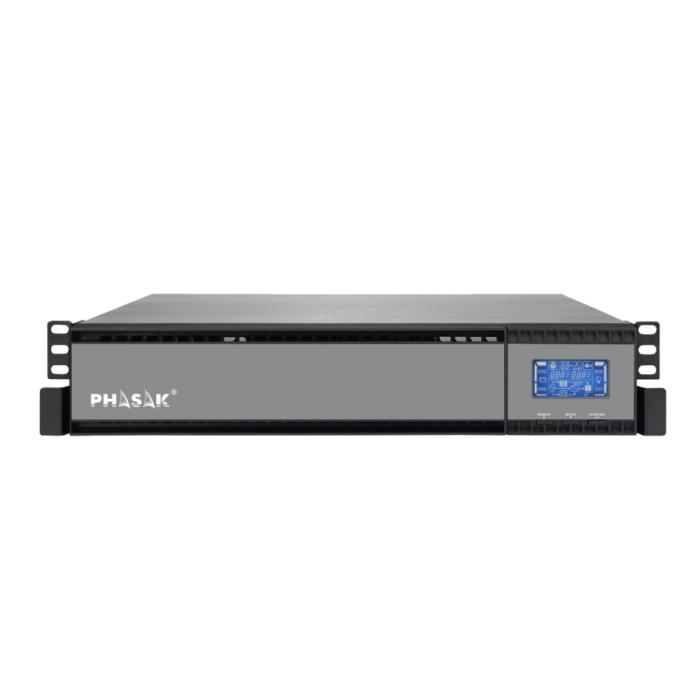

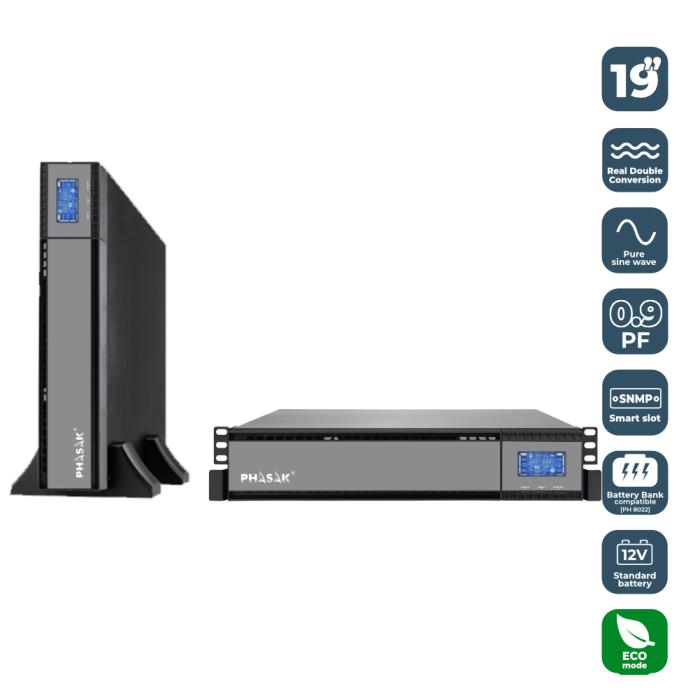

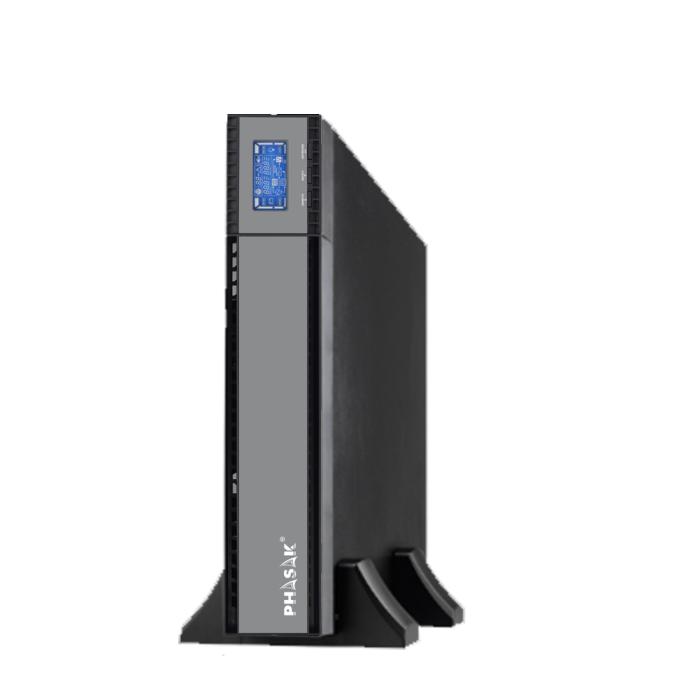

Online UPS in rack format with 2000 VA capacity, reference PH 9320, designed to deliver 1800 W output power and a power factor of 0.9. This unit operates with a minimum input voltage of 110 V and provides stable output between 200 V and 240 V, with a response time of 4 ms. Features include auto-shutdown, auto-restart, ECO mode, and audible alarms to notify of faults, low battery, or overload. Its 3:1 crest factor and unity input power factor make it compatible with demanding loads, and its detachable power cable simplifies installation.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2 kVA
- Output power: 1800 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 160 V
- Input frequency: 45/55 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 60 Hz
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.9%
- Power factor: 0.9
- Input power factor: 1
- Output power factor: 0.9
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 2%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes

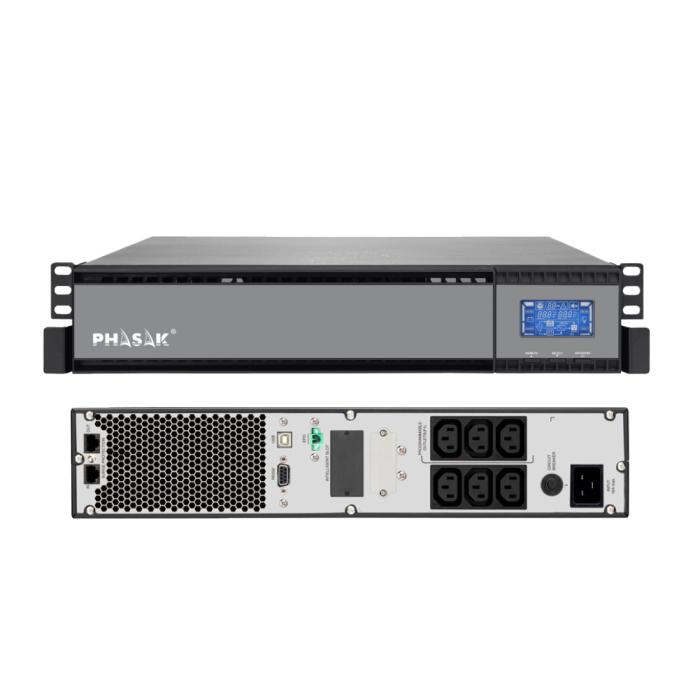

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 6 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 3
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons

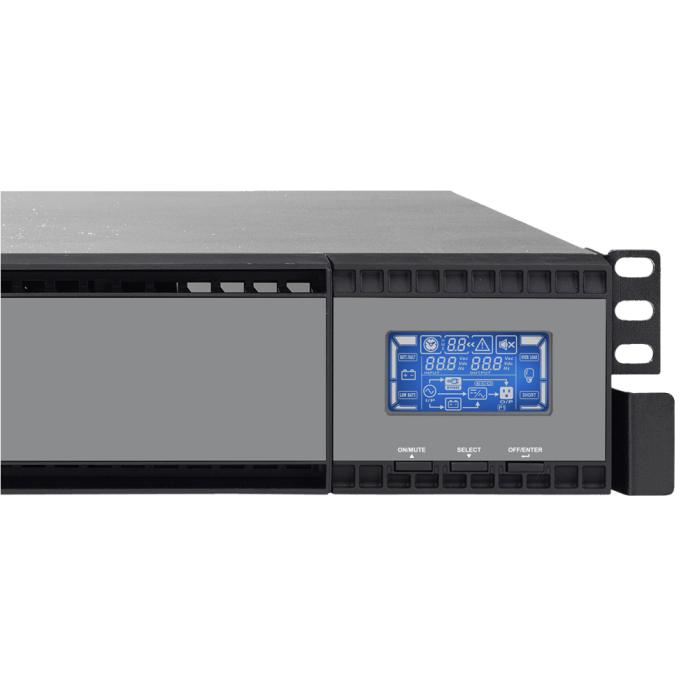

- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content
- Rack mount kit: Yes
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 510 mm
- Height: 88 mm
- Weight: 14.5 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 440 mm
- Package depth: 470 mm
- Package height: 250 mm
- Package weight: 15.5 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
