Description

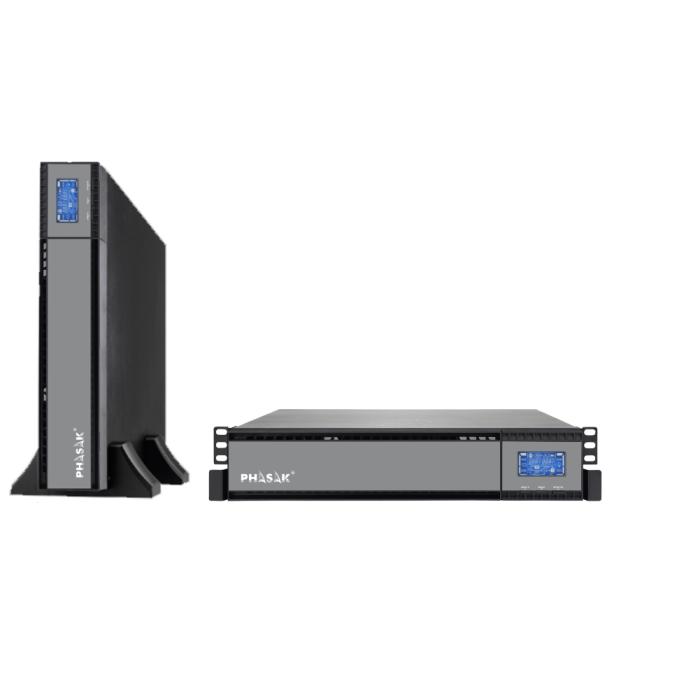

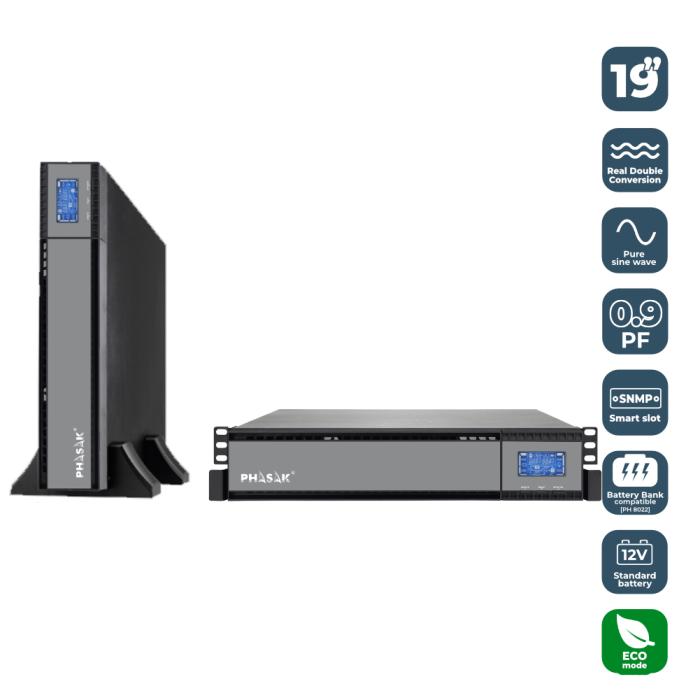

Online rack UPS with 1500 VA capacity, model PH 9315, designed for environments where alternating current stability is a priority. Delivers pure sine wave with an output power factor of 0.9 and features automatic voltage regulation (AVR) to correct fluctuations. Its audible alarms cover battery replacement, failure, low battery, and overload, although this unit lacks overload protection. Includes ECO mode to reduce consumption and a noise level of 45 dB, being compatible with single-phase inputs of 45/55 Hz and a 60 Hz output.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1.5 kVA
- Output power: 1350 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 160 V
- Input frequency: 45/55 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 60 Hz
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.9%
- Power factor: 0.9
- Input power factor: 1
- Output power factor: 0.9
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 2%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes

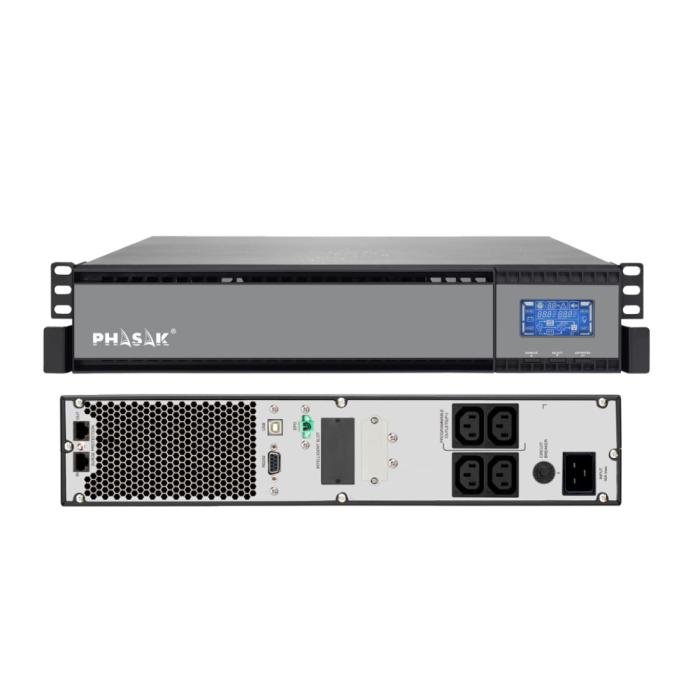

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 3
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons

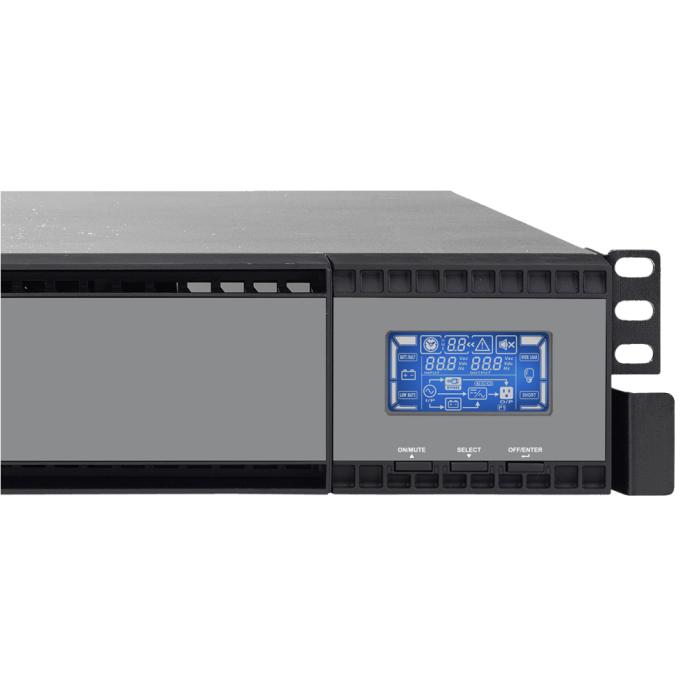

- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content

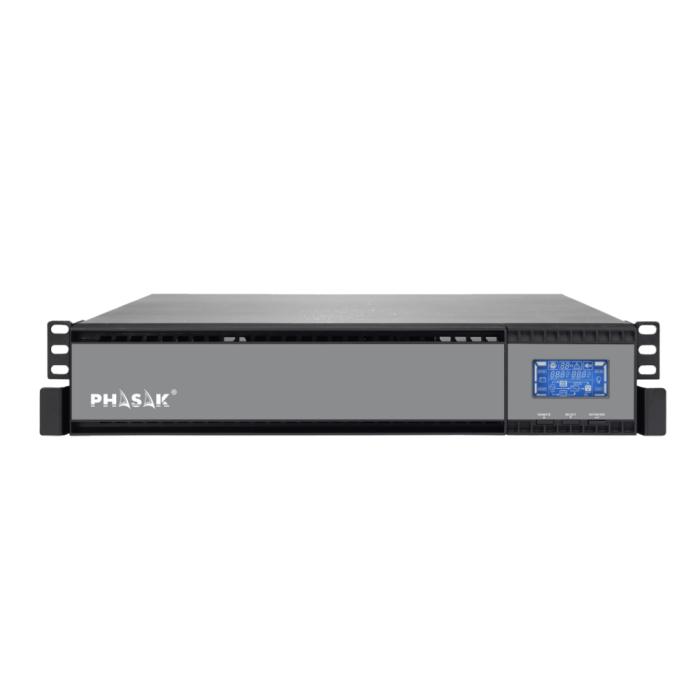

- Rack mount kit: Yes
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 410 mm
- Height: 88 mm
- Weight: 14.5 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 440 mm
- Package depth: 470 mm
- Package height: 250 mm
- Package weight: 15.5 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
