Description

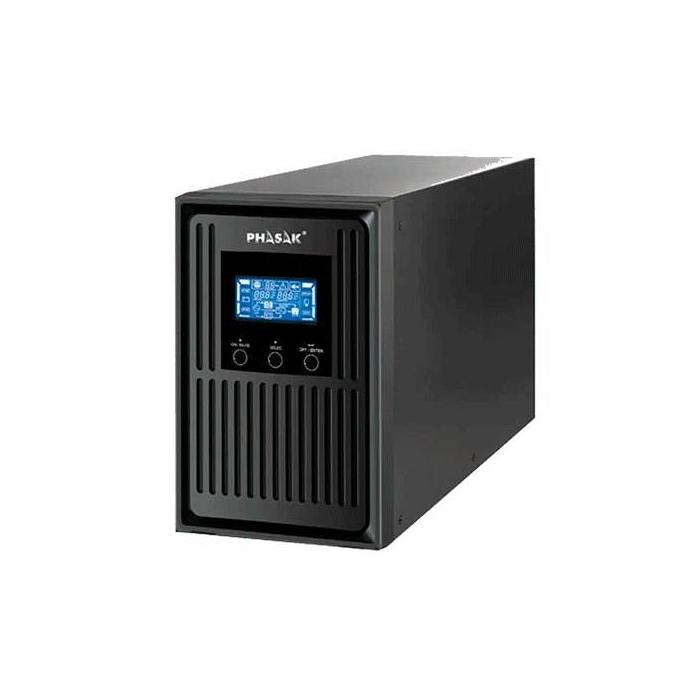

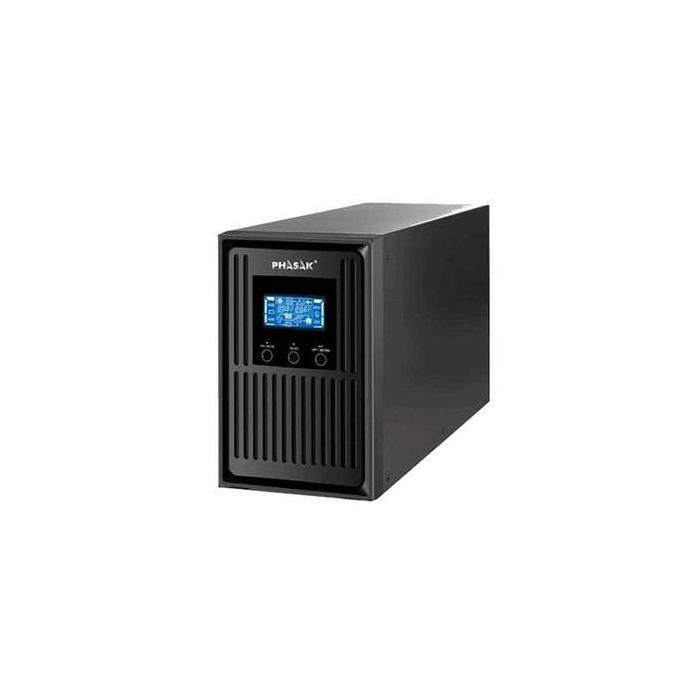

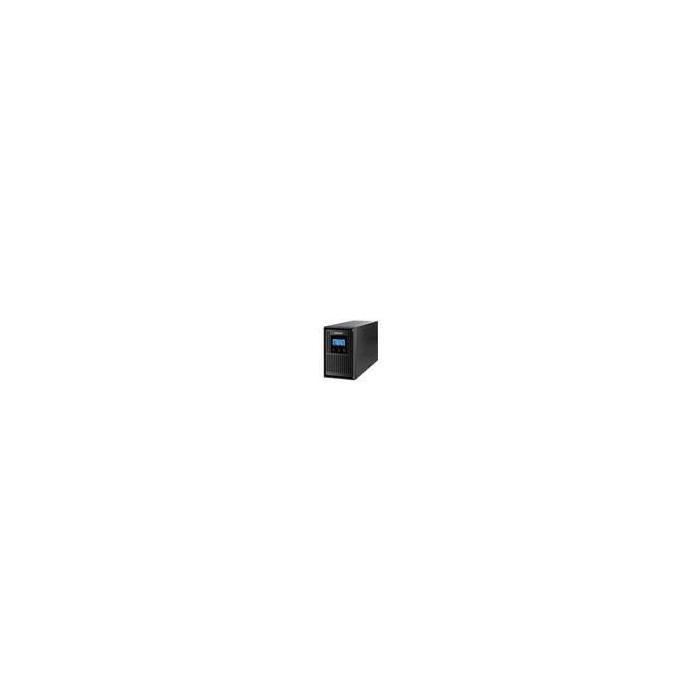

The Phasak SAI Conqueror Pro Online 1000 VA UPS, reference PH 8010, provides an output power of 900 W with an online double-conversion topology, ensuring an output voltage regulation of 1% and a total harmonic distortion of 3% at both the input and output. It manages an input frequency of 40/70 Hz and an output of 50/60 Hz, with input and output operating voltages between 110 and 127 V. It includes protection against surges, overvoltage, overload and overheating, as well as automatic shutdown and battery discharge protection functions. Its efficiency in online mode reaches 0.9%, making it a solution for single-phase environments requiring energy stability.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1.06 kVA
- Output power: 900 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 127 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 110 V
- Output operation voltage (max): 127 V
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.9%
- Power factor: 0.9
- Input power factor: 1
- Output power factor: 0.9
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes
Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 3 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: No
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 145 mm
- Depth: 282 mm
- Height: 220 mm
- Weight: 9.8 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 230 mm
- Package depth: 360 mm
- Package height: 325 mm
- Package weight: 10 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
