Description

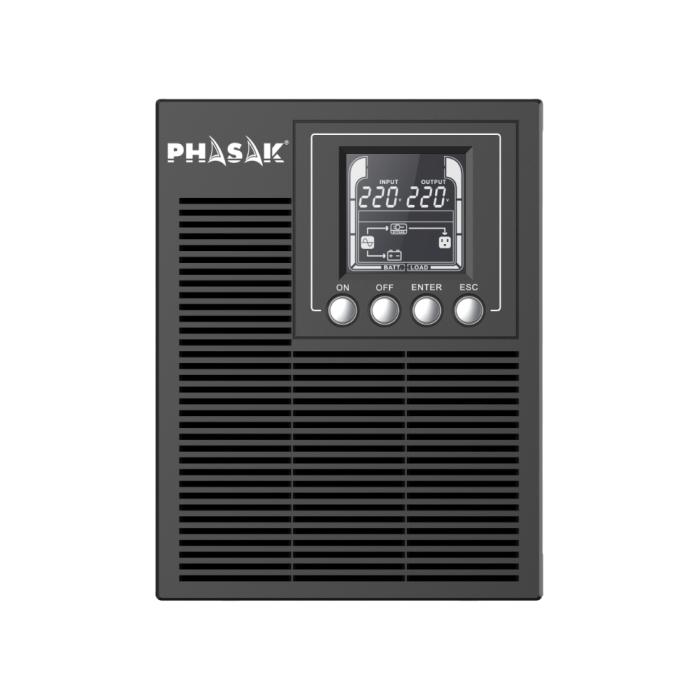

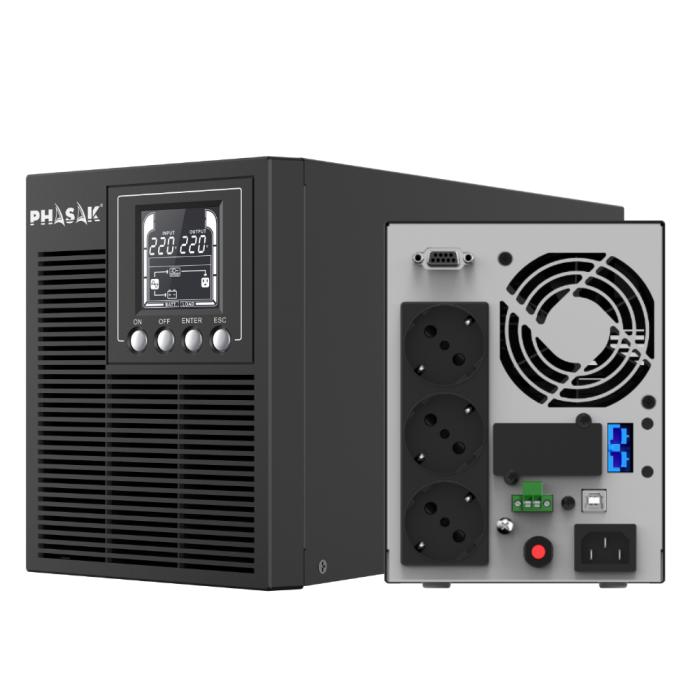

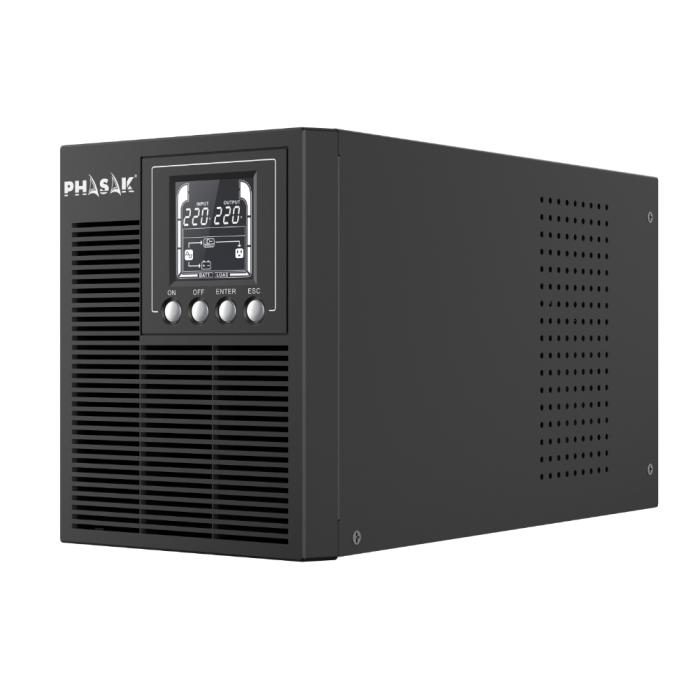

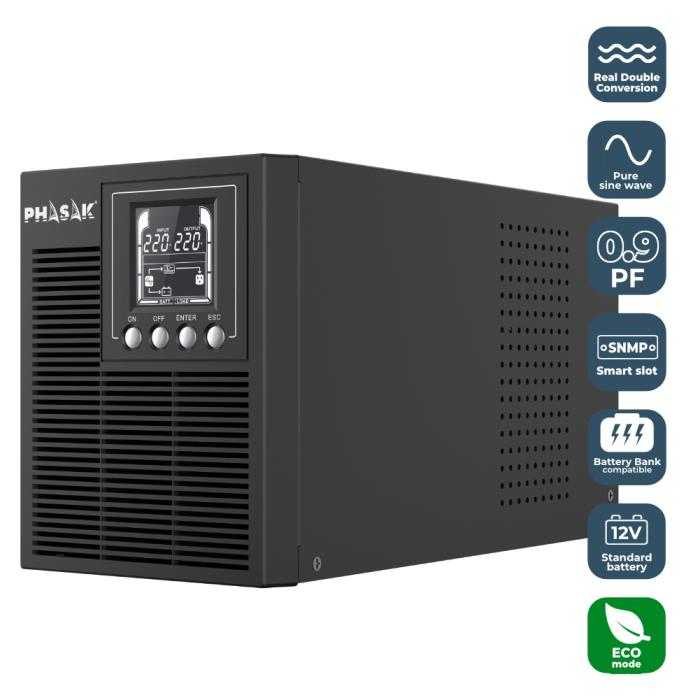

The Phasak Smart Pro Online UPS PH 9210, with 1000 VA of power and double-conversion topology, delivers pure sine wave output and a 0.99 output power factor to protect your critical equipment. It features automatic voltage regulation (AVR) and ECO mode to optimise consumption, while audible alarms alert you to failures, overloads, low battery, or battery replacement. With a crest factor of 3:1 and a noise level of 45 dB, it manages single-phase alternating current supply with 40/60 Hz input and regulated 50/60 Hz output, although it does not include overload protection. Its input power factor is 1 and its output power factor is 0.8, ensuring stable performance for loads sensitive to fluctuations.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 900 W
- Waveform: Pure sine
- Input operation voltage (min): 110 V
- Input operation voltage (max): 290 V
- Input frequency: 40/60 Hz
- Output operation voltage (min): 230 V
- Output operation voltage (max): 230 V
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Efficiency (On-line mode): 0.99%
- Power factor: 0.8
- Input power factor: 1
- Output power factor: 0.99
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 3%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 45 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Potential-free output: No
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC
- Detachable power cord: Yes

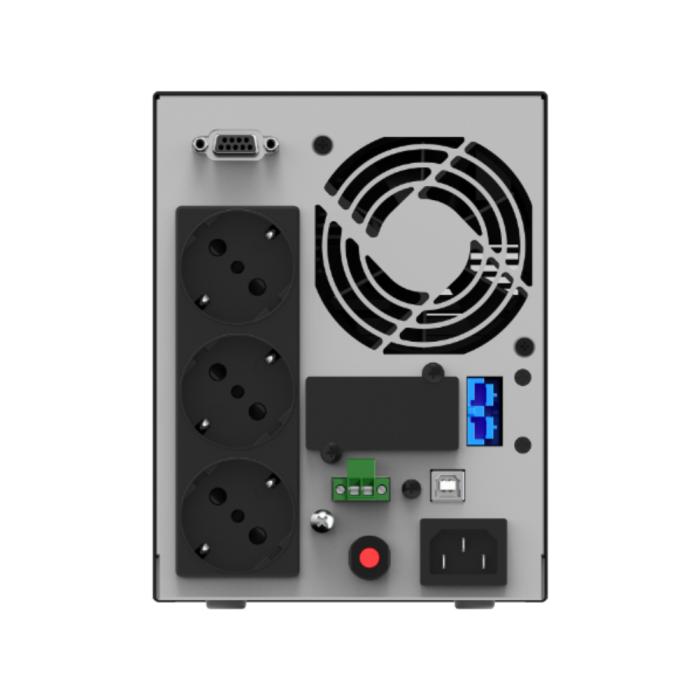

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 3 AC outlet(s)
- Number of type F outputs: 3
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 2
- RS-232 ports: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: No
- SmartSlot: Yes
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 15 min
- Typical backup time at half load: 8 min
- Battery recharge time: 4 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Mini Tower
- Cable length: 1 m
- Modular: No
- Cooling type: Active
- Built-in fan: Yes
- Product colour: Beige
- Control type: Buttons
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
- Storage relative humidity (H-H): 20 - 95%
Certificates
- Compliance certificates: CE
Packaging content
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 145 mm
- Depth: 282 mm
- Height: 220 mm
- Weight: 9.8 kg
- Battery width: 15.1 cm
- Battery depth: 6.5 cm
- Battery height: 9.5 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 210 mm
- Package depth: 434 mm
- Package height: 264 mm
- Package weight: 10.3 kg
- Package type: Box
Logistics data
- Serialized: No
- Quantity per pack: 1 pc(s)
